Front Seat Assembly: Components

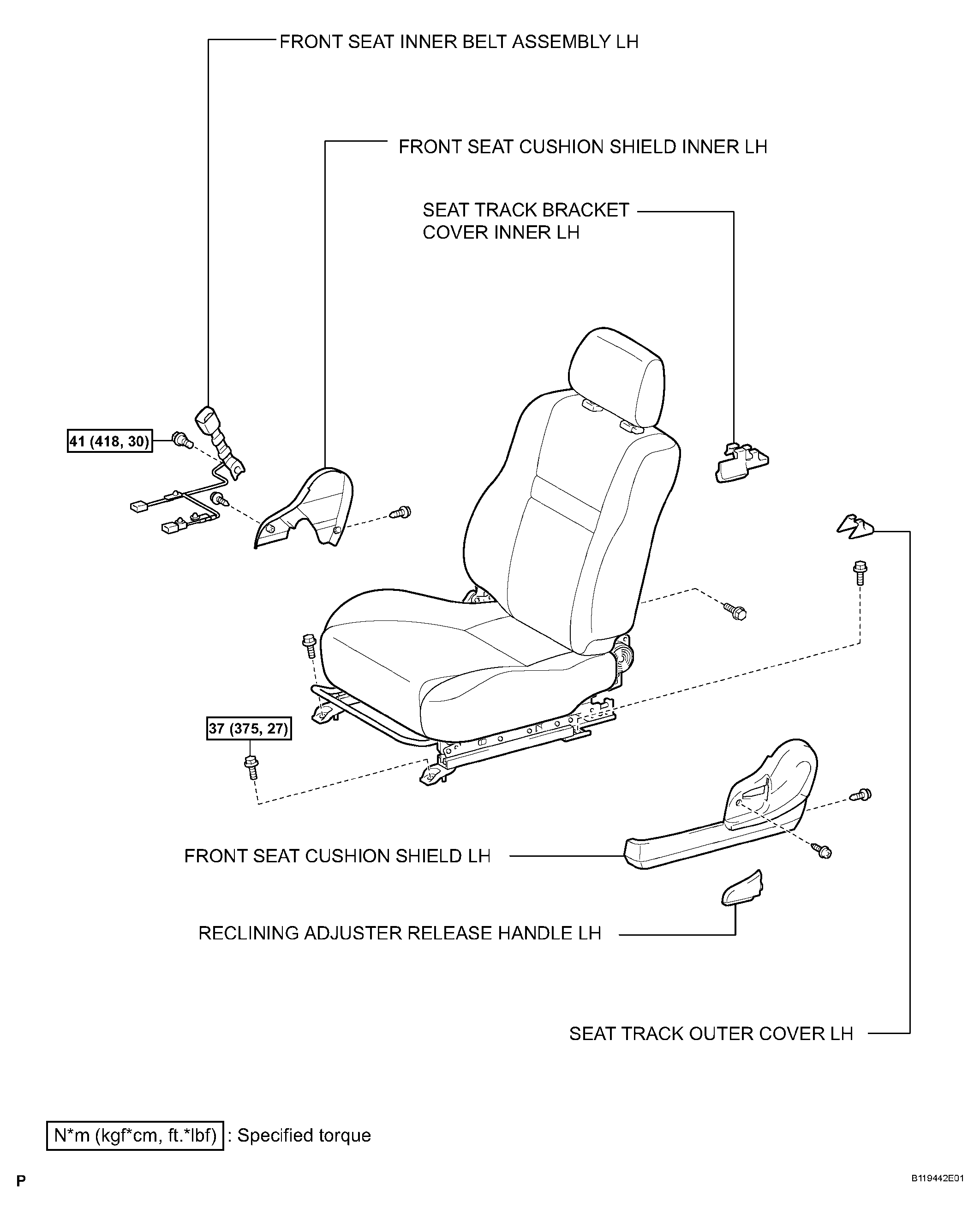

Fig 1: Identifying Front Seat Assembly Components (1 Of 2)
G04159125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

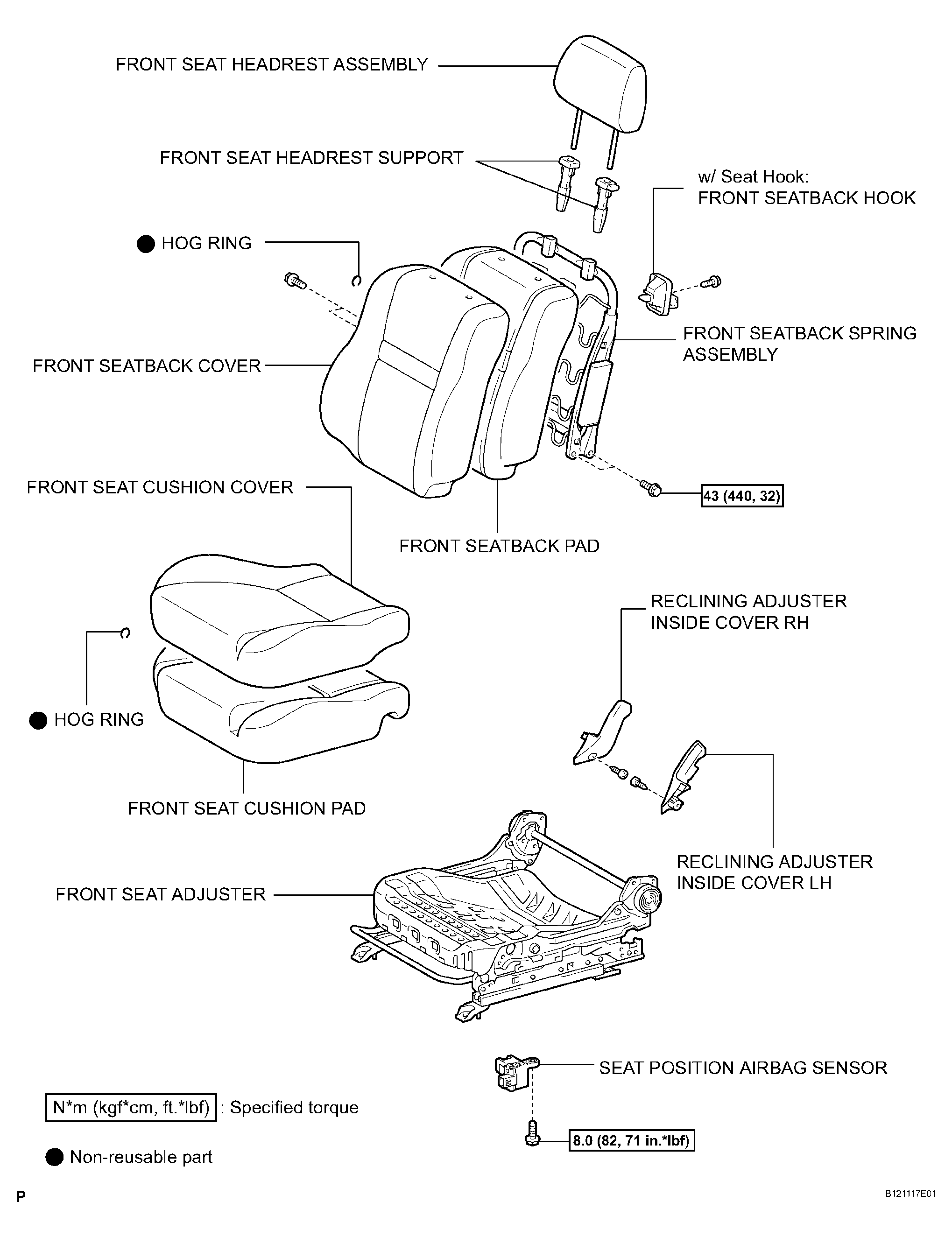

Fig 2: Identifying Front Seat Assembly Components (2 Of 2)
G04159126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
