Outer Rear View Mirror: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
   1. Install the mirror with the 3 nuts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   2. Connect the connector.
2. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See  REASSEMBLY  )

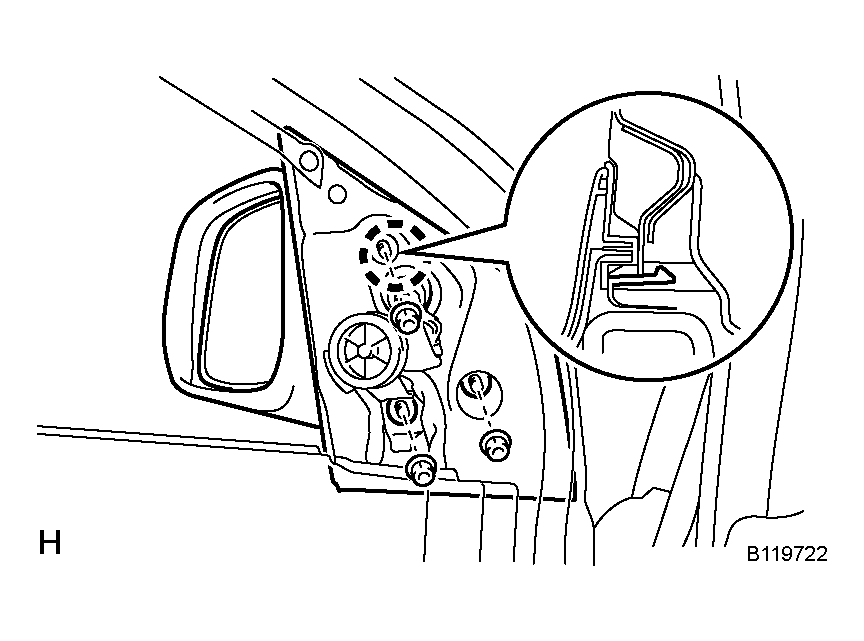

   Fig 1: Installing Mirror With Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
