Exterior/Interior Trim: Interior: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

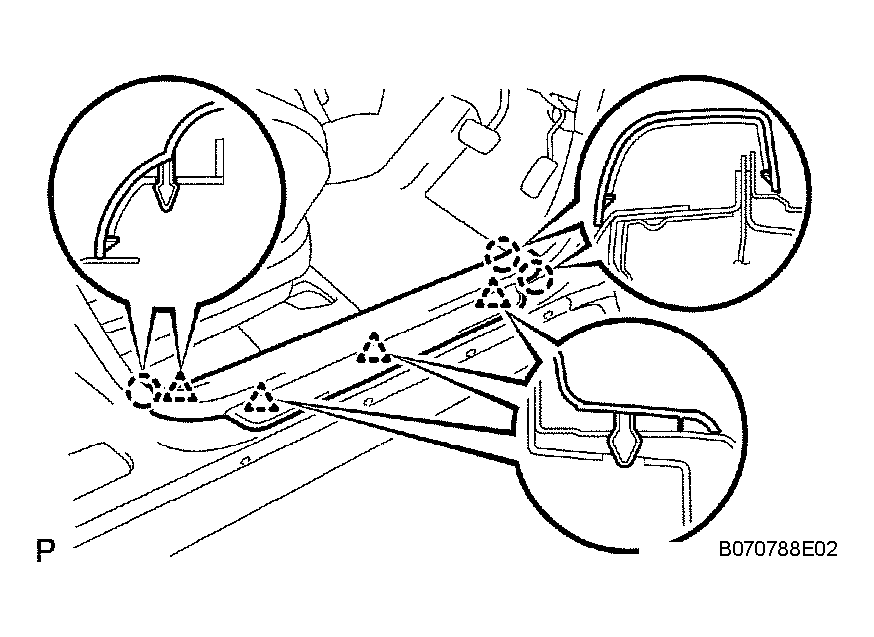

  2. REMOVE FRONT DOOR SCUFF PLATE RH
    1. Using a screwdriver, detach the 3 claws and 4 clips, and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

  3. REMOVE FRONT DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures described for the RH side.

    Fig 1: Removing Front Door Scuff Plate LH
    G04159361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR DOOR SCUFF PLATE RH
    1. Using a screwdriver, detach the 2 claws and 3 clips, and remove the scuff plate.

      HINT:

      Tape the screwdriver tip before use.

  5. REMOVE REAR DOOR SCUFF PLATE LH

    HINT:

    Use the same procedures described for the RH side.

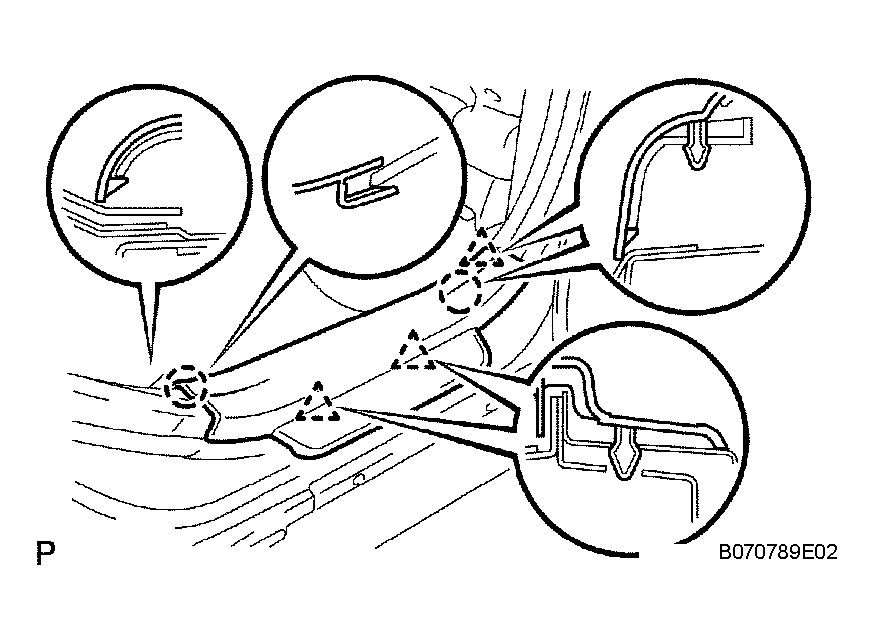

    Fig 2: Removing Rear Door Scuff Plate LH
    G04159362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COWL SIDE TRIM BOARD RH
    1. Remove the cap nut.
    2. Using a screwdriver, detach the clip and remove the trim board.

      HINT:

      Tape the screwdriver tip before use.

  7. REMOVE COWL SIDE TRIM BOARD LH

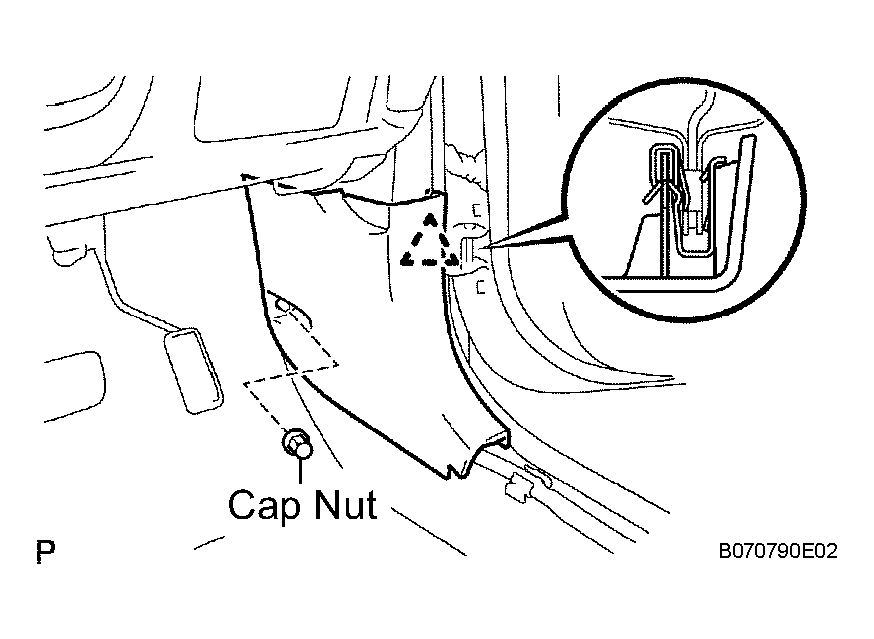

    Fig 3: Removing Cowl Side Trim Board LH
    G04159363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures described for the RH side.

  8. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  9. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  11. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  12. REMOVE CENTER PILLAR GARNISH LOWER RH
    1. Remove the floor anchor cover.
    2. Remove the bolt and front seat outer belt floor anchor.
    3. Detach the 2 clips and 2 claws, and remove the center pillar garnish.
  13. REMOVE CENTER PILLAR GARNISH LOWER LH

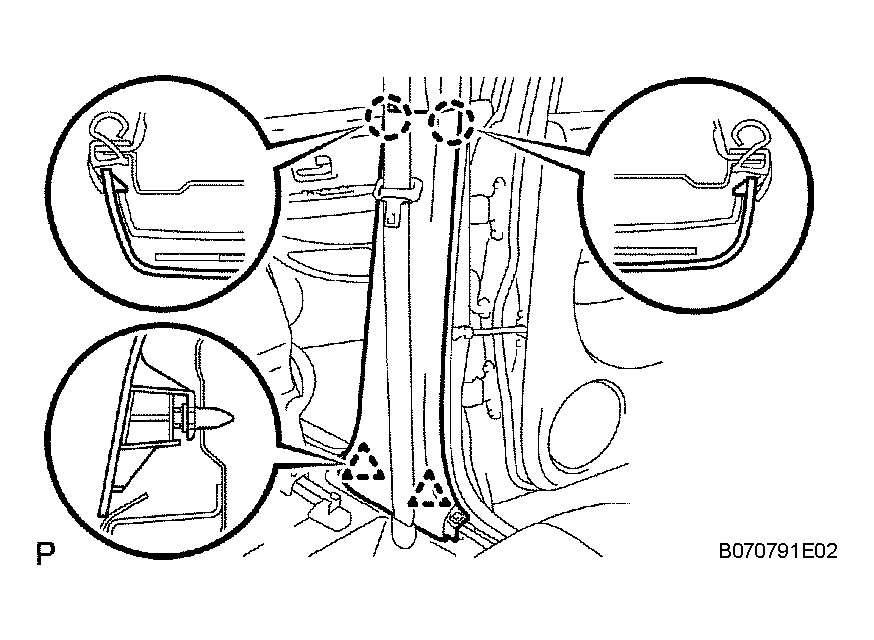

    Fig 4: Removing Center Pillar Garnish Lower LH
    G04159364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures described for the RH side.

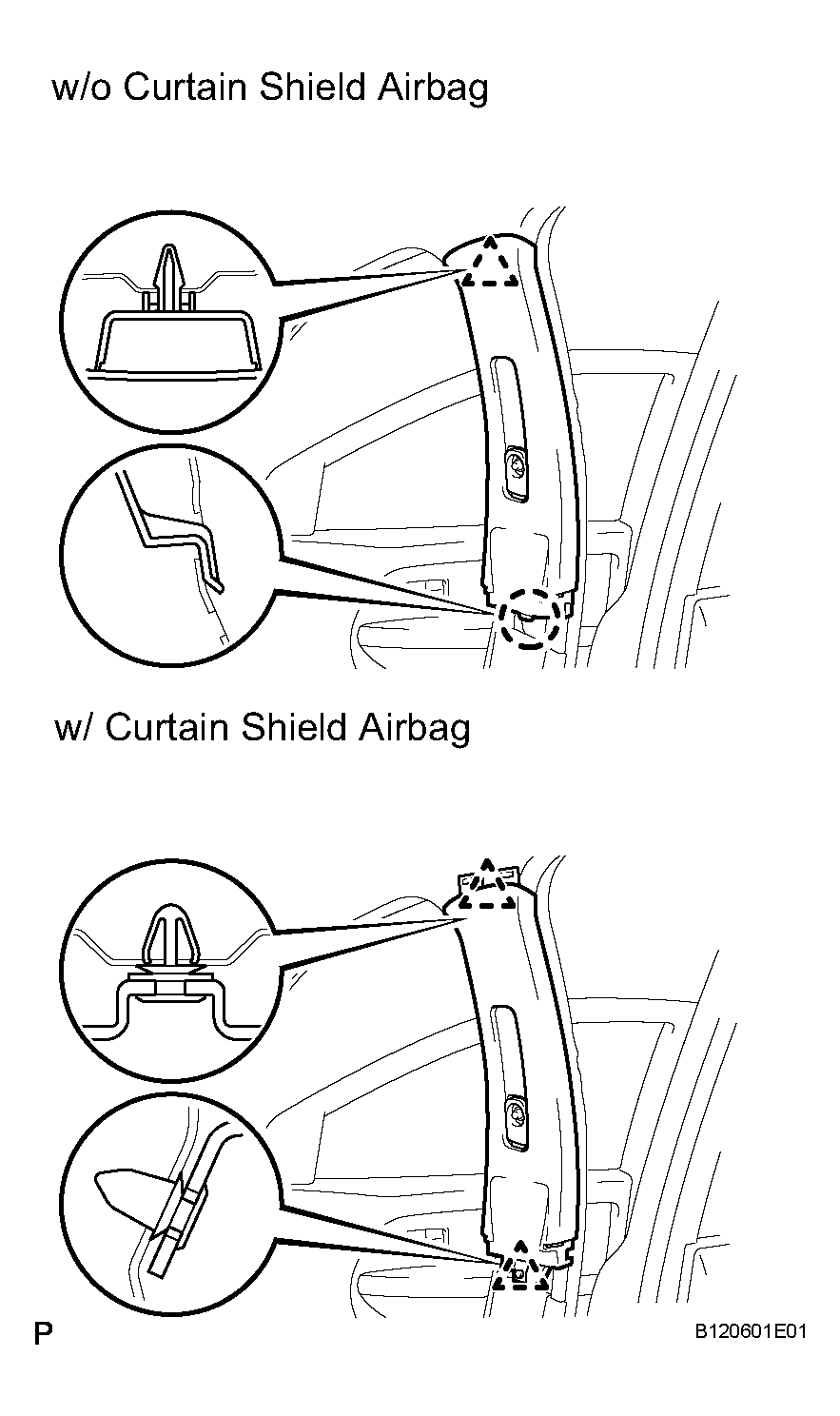

  14. REMOVE CENTER PILLAR GARNISH UPPER RH
    1. Remove the shoulder anchor cover.
    2. Remove the bolt and front seat outer belt shoulder anchor.
    3. w/o Curtain shield airbag:

      Detach the claw and clip, and remove the center pillar garnish by pulling it up.

    4. w/ Curtain shield airbag:

      Detach the 2 clips and remove the center pillar garnish.

  15. REMOVE CENTER PILLAR GARNISH UPPER LH

    HINT:

    Use the same procedures described for the RH side.

  16. REMOVE REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY (See  REMOVAL  )
  17. REMOVE REAR SEATBACK ASSEMBLY RH (See  REMOVAL  )
  18. REMOVE REAR SEATBACK ASSEMBLY LH (See  REMOVAL  )
  19. REMOVE TONNEAU COVER ASSEMBLY
  20. REMOVE NO. 1 DECK BOARD
  21. REMOVE DECK FLOOR BOX RH
    1. Remove the 2 bolts and floor box.
  22. REMOVE SPARE WHEEL COVER ASSEMBLY
    Fig 5: Removing Spare Wheel Cover Assembly
    G04159365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE DECK TRIM COVER REAR
    1. Remove the 4 clips.
    2. Detach the 2 claws and remove the trim cover.

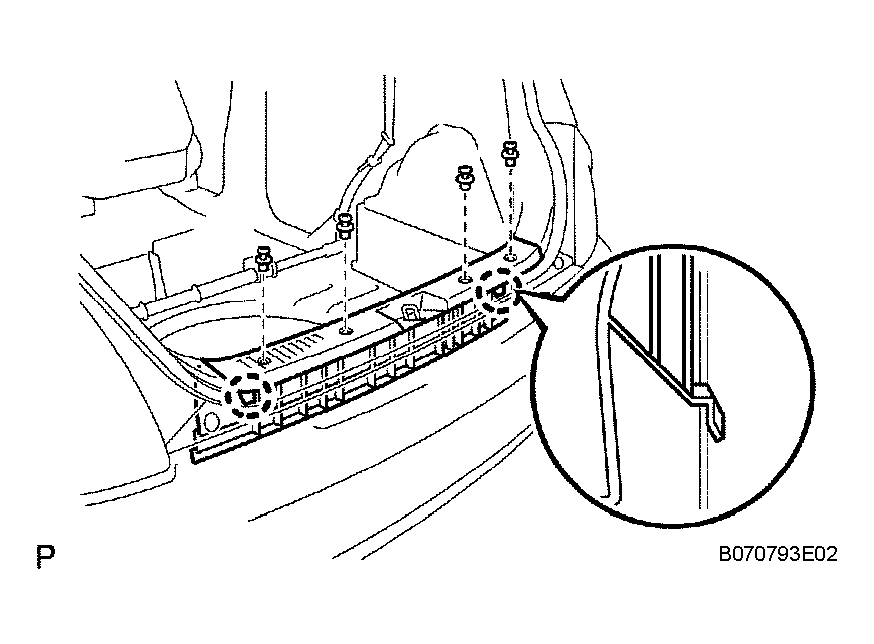

  24. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY
    1. Remove the 4 bolts and anchor bracket.
      Fig 6: Removing Child Restraint Seat Anchor Bracket Sub-Assembly
      G04159366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    1. Remove the 2 covers and 2 screws.
    2. Remove the screw and compartment trim hook.
    3. Remove the bolt and seatback hinge.
    4. Remove the bolt and rear seat 3 point type belt floor anchor.

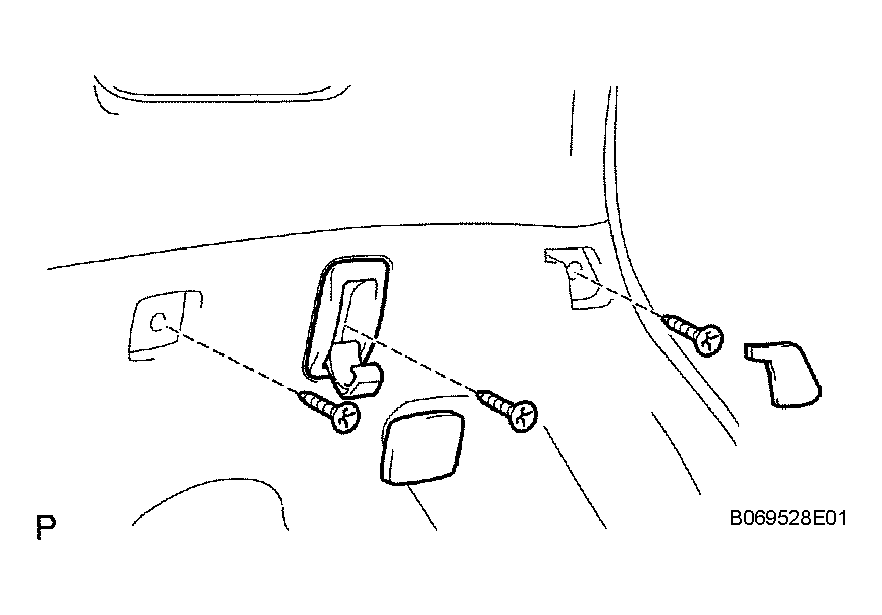

      Fig 7: Removing Deck Trim Side Panel Assembly RH
      G04159367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, detach the 3 clips and claw, and remove the side panel.

      HINT:

      Tape the screwdriver tip before use.

  26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

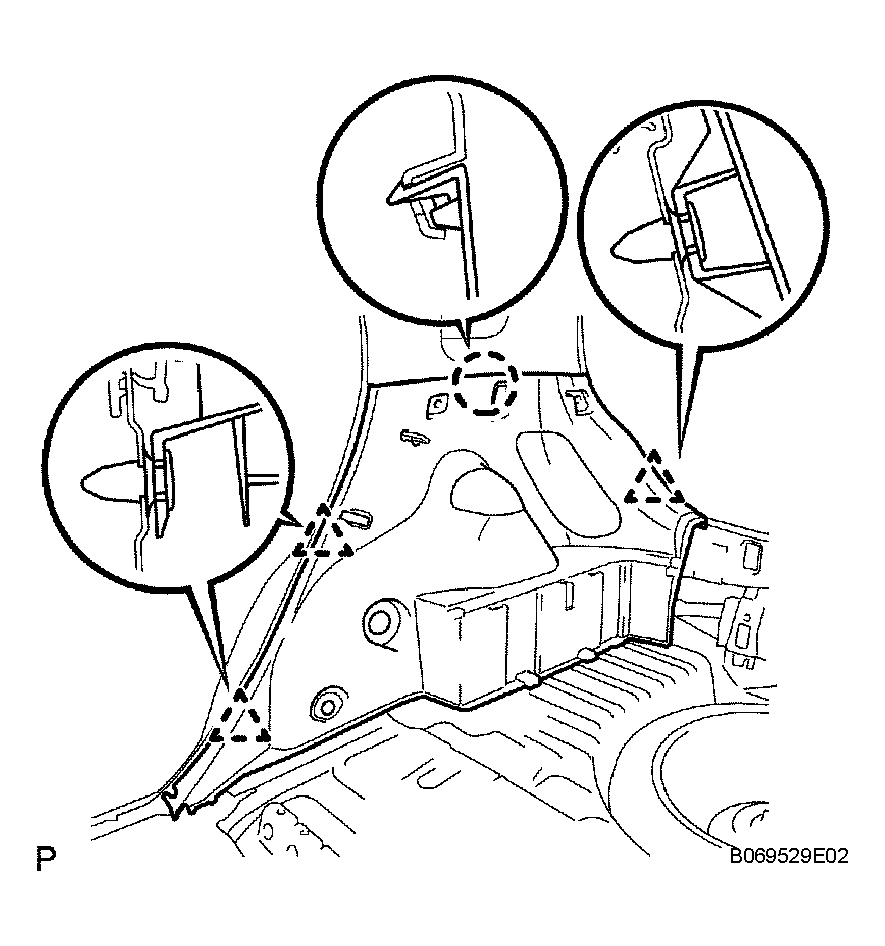

    Fig 8: Removing Deck Trim Side Panel Assembly LH
    G04159368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures described for the RH side.

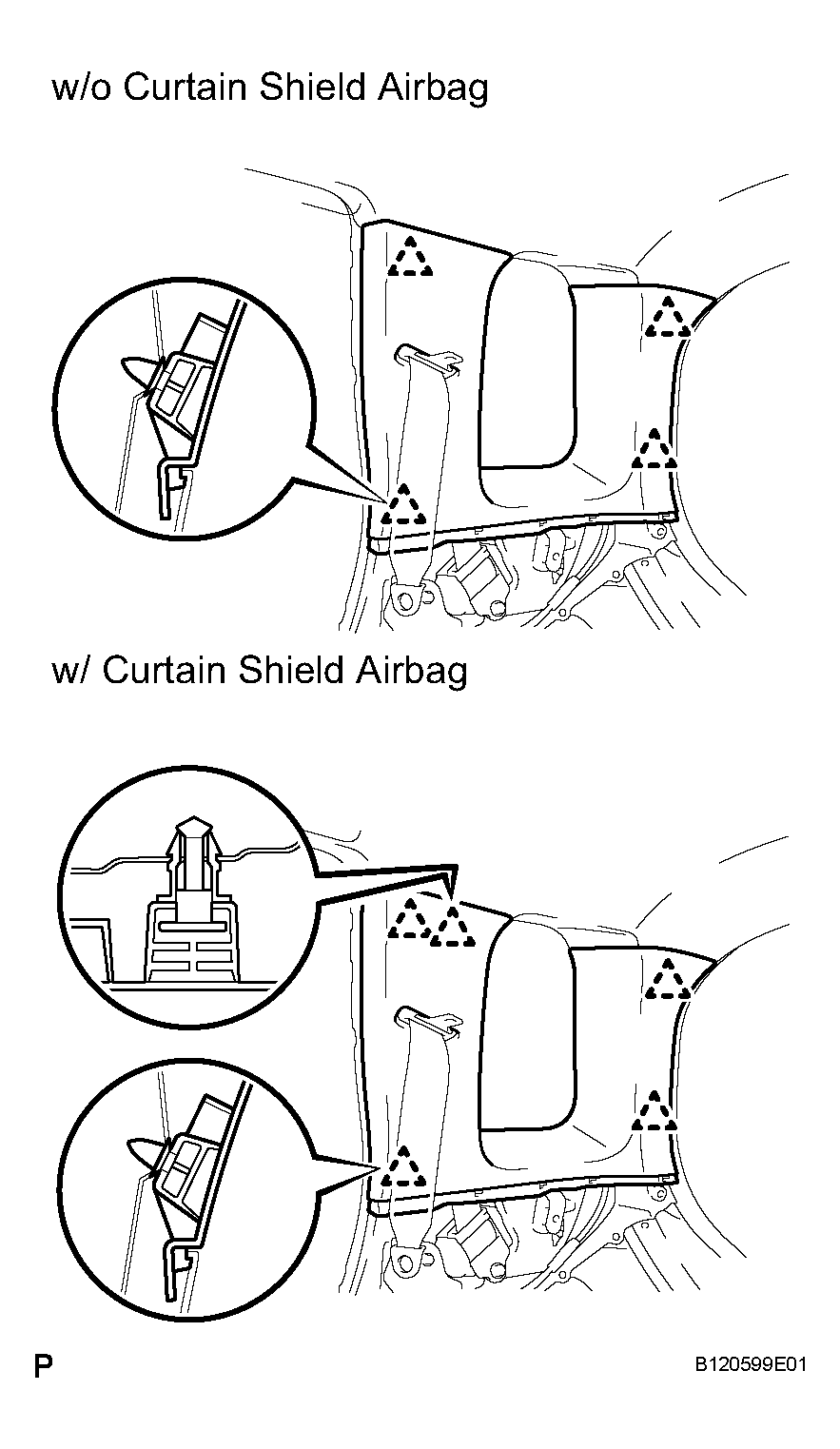

  27. REMOVE ROOF SIDE GARNISH INNER RH
    1. w/o Curtain shield airbag:

      Using a screwdriver, detach the 4 clips and remove the side garnish.

      HINT:

      Tape the screwdriver tip before use.

    2. w/ Curtain shield airbag:

      Using a screwdriver, detach the 5 clips and remove the side garnish.

      HINT:

      Tape the screwdriver tip before use.

  28. REMOVE ROOF SIDE GARNISH INNER LH
    Fig 9: Removing Roof Side Garnish Inner LH
    G04159369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures described for the RH side.

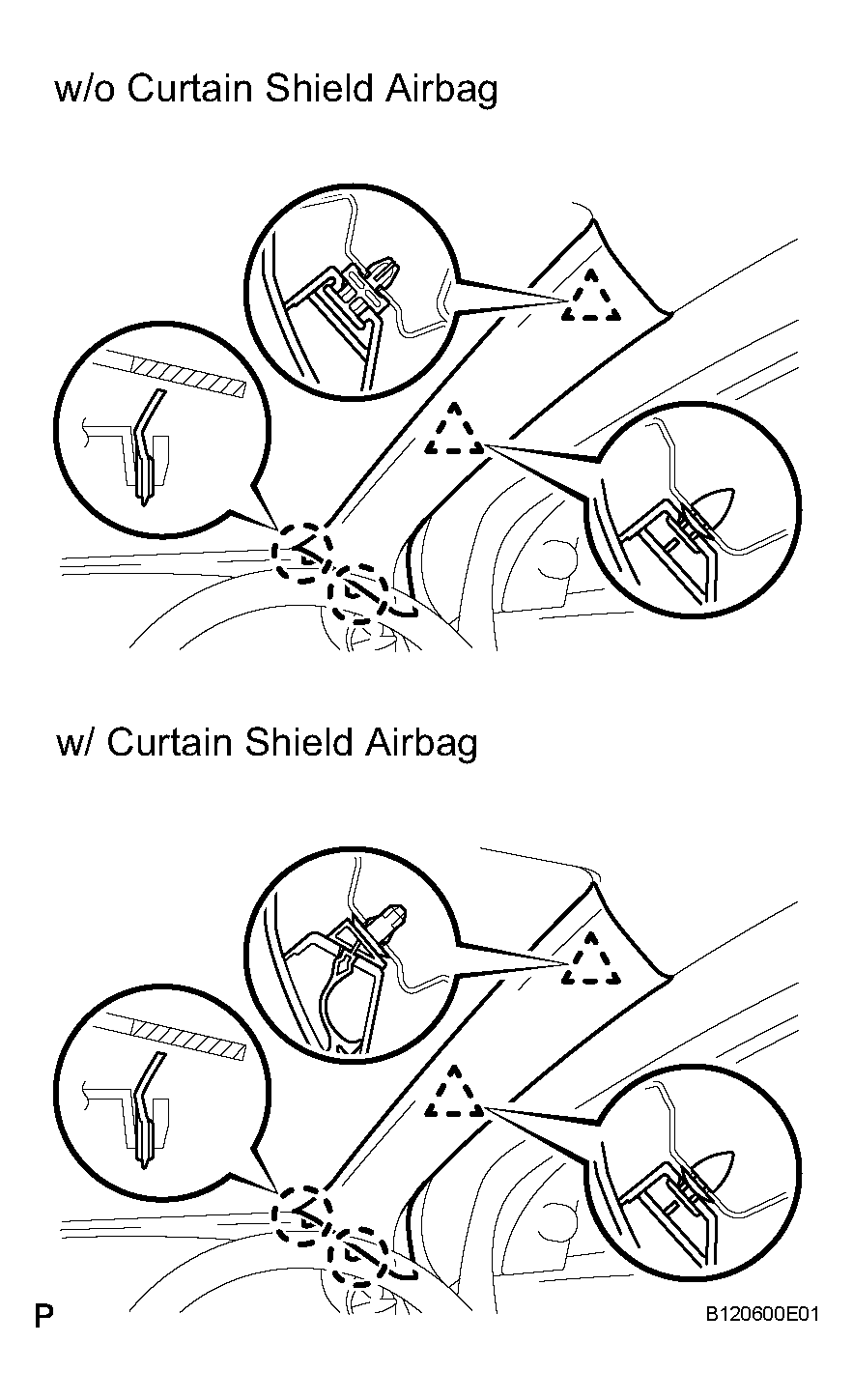

  29. REMOVE FRONT PILLAR GARNISH RH
    1. Using a screwdriver, detach the 2 clips.

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 claws by pulling up the garnish and remove the garnish.
      Fig 10: Removing Front Pillar Garnish RH
      G04159370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Curtain shield airbag:

      Protect the curtain shield airbag.

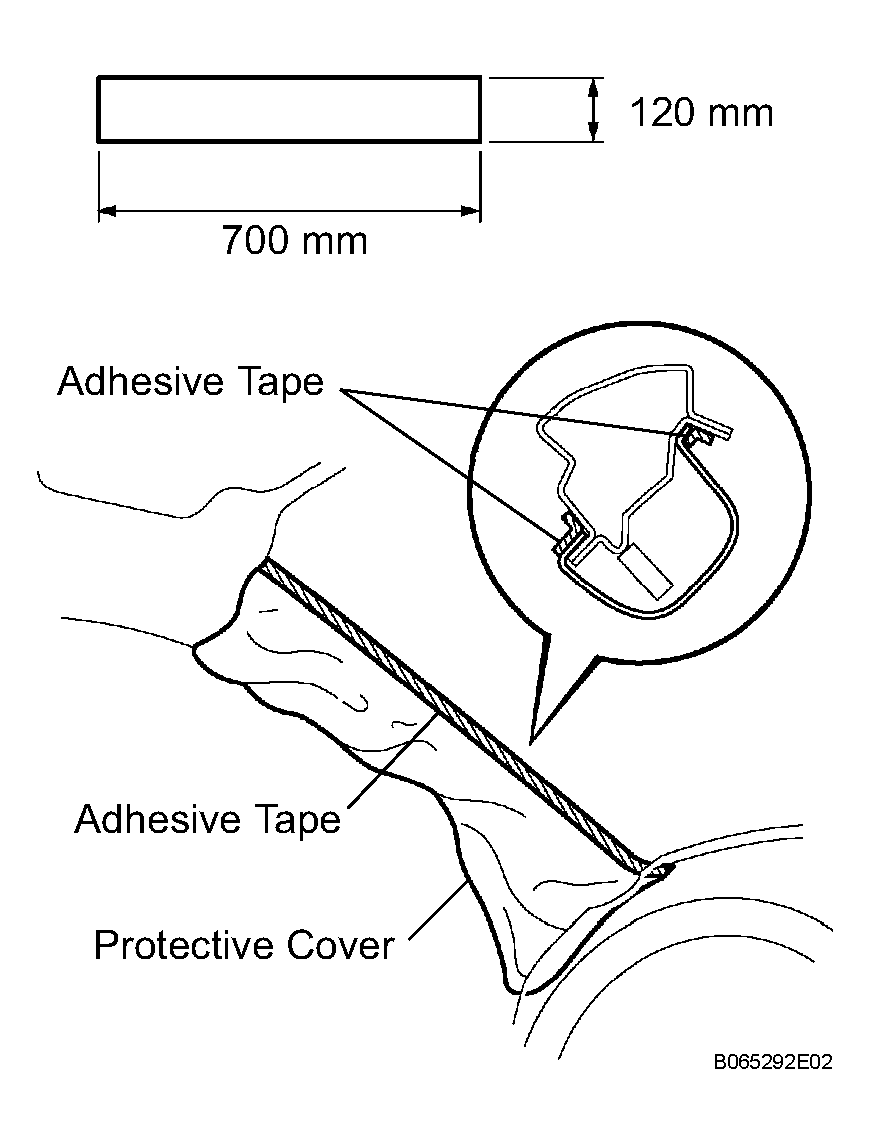

      1. Thoroughly cover the airbag with cloth or nylon that is 700 mm (27.56 in.) x 120 mm (4.72 in.) and fix the ends of the cover with adhesive tape, as shown in the illustration.
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
  30. REMOVE FRONT PILLAR GARNISH LH

    HINT:

    Use the same procedures described for the RH side.

  31. REMOVE RH VISOR ASSEMBLY
    1. Remove the 2 screws and visor.
  32. REMOVE LH VISOR ASSEMBLY
    1. Remove the 2 screws and visor.
      Fig 11: Removing Screws Visor
      G04159371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE MAP LIGHT ASSEMBLY
    1. Remove the screw and lens cover.

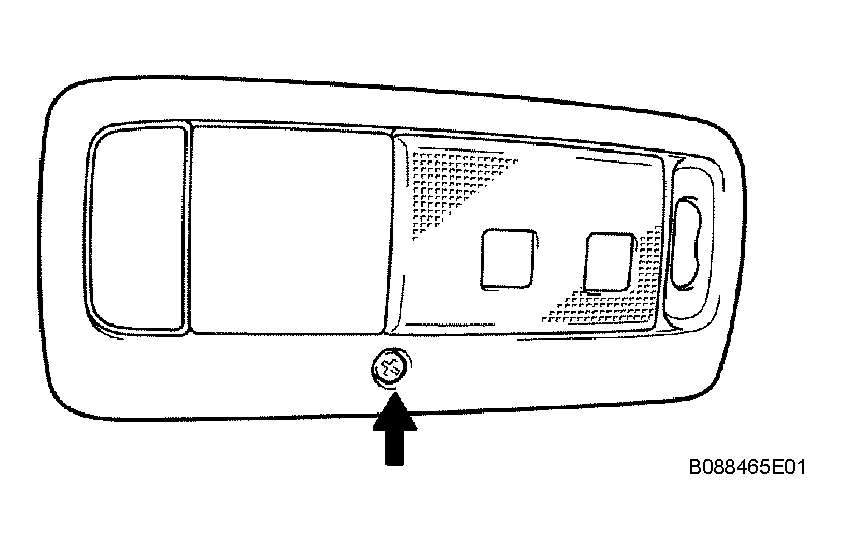

      Fig 12: Removing Screw Lens Cover
      G04159372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

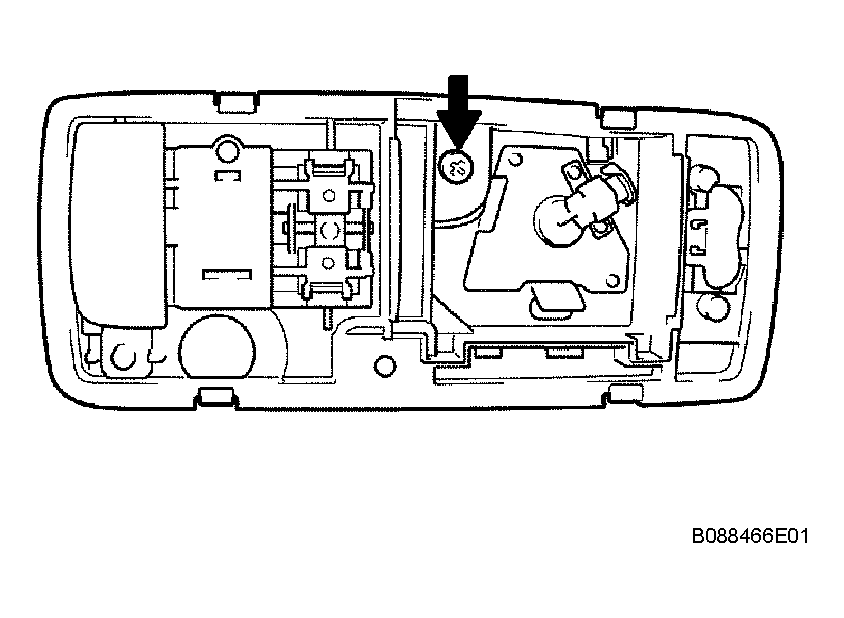

    2. Remove the screw and light.
    3. Disconnect the map light connector.
      Fig 13: Removing Screw Light
      G04159373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

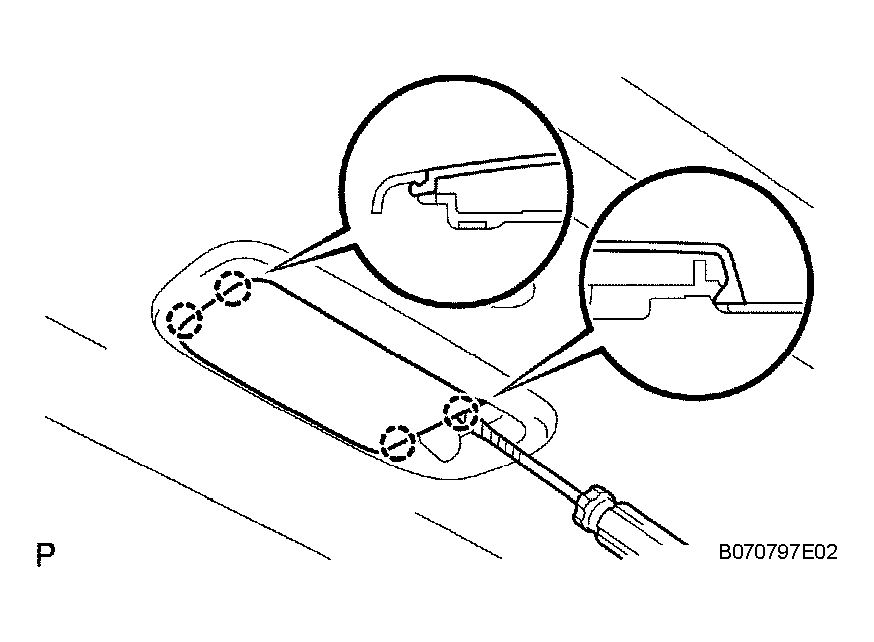

  34. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 4 claws and remove the lens cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws.
    3. Disconnect the room light connector and remove the light.
      Fig 14: Removing Screws
      G04159374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE ASSIST GRIP ASSEMBLY
    1. Using a screwdriver, detach the 2 claws and remove the assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 bolts and assist grip.

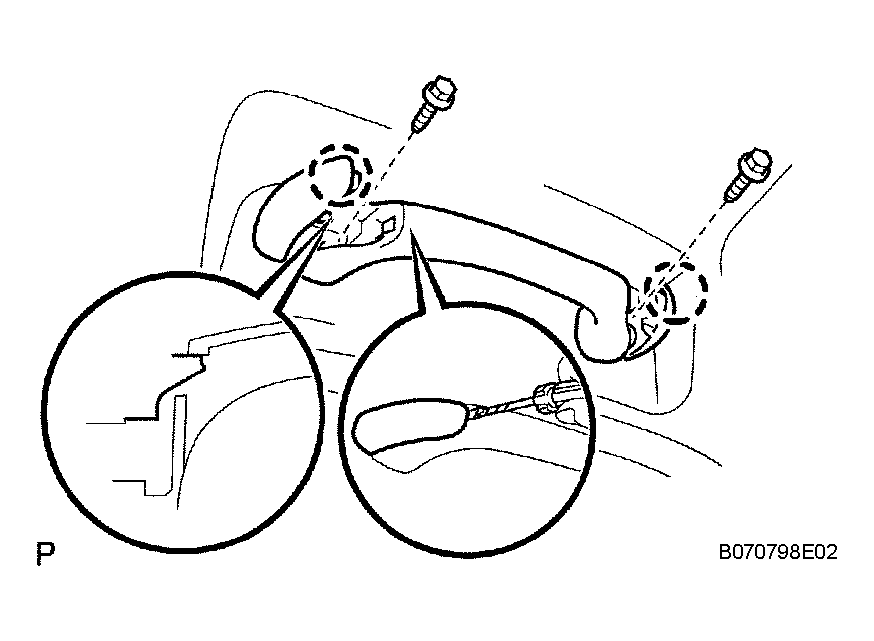

      Fig 15: Removing Bolts Assist Grip
      G04159375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

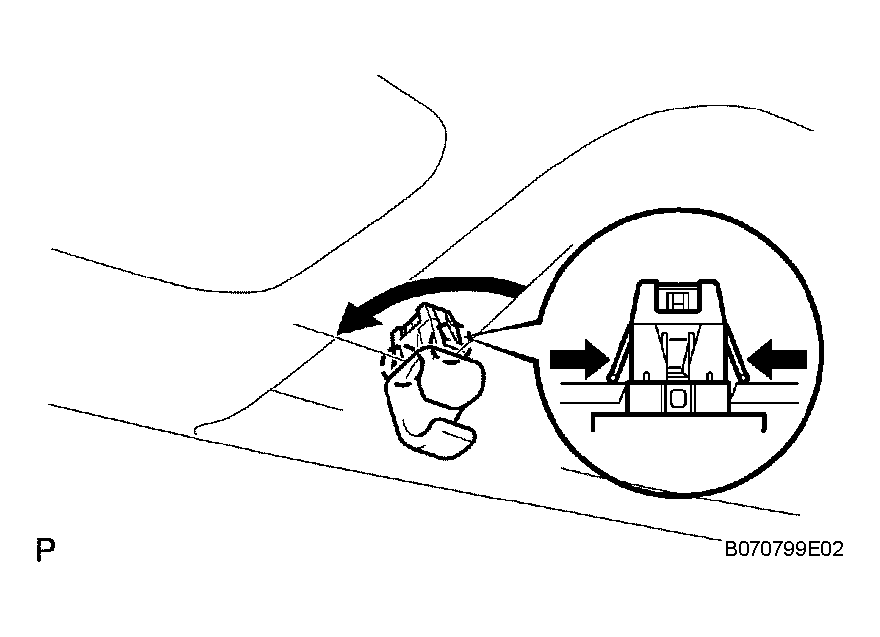

  36. REMOVE VISOR HOLDER
    1. Remove the visor holder by turning it counterclockwise.
  37. REMOVE SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)
    Fig 16: Removing Sun Roof Opening Trim Moulding
    G04159376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE ROOF HEADLINING ASSEMBLY
    1. w/ Sliding roof:

      Using a clip remover, remove the 3 clips and headlining.

    2. w/o Sliding roof:

      Using a clip remover, remove the 5 clips and headlining.

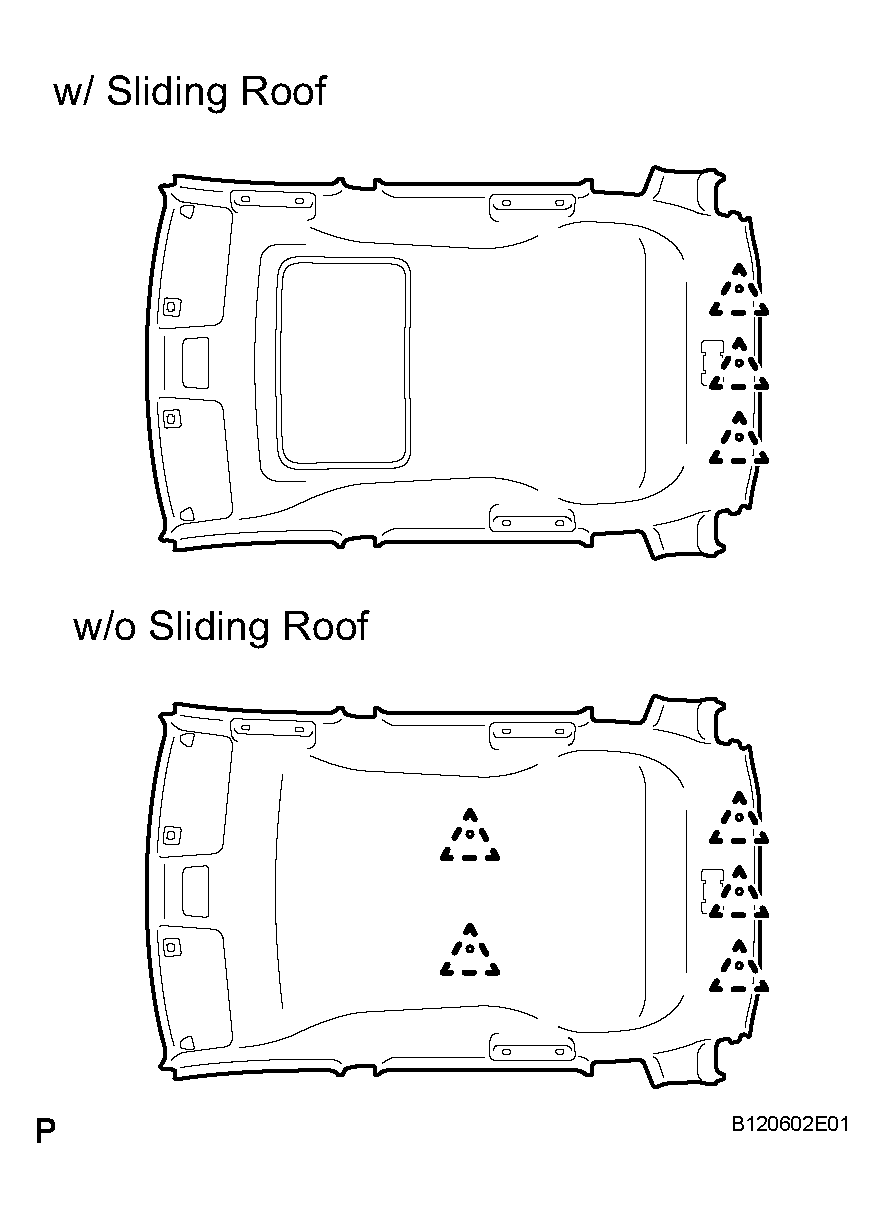

      Fig 17: Removing Clips Headlining
      G04159377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
