Home >> Scion >> 2006 >> xA Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Vehicle Intrusion Protection (VIP RS3200) >> Programming >> Driver's Door/All Doors Unlock Selection

Driver's Door/All Doors Unlock Selection

The xA Security with RKE is factory-set to unlock the driver's door when the UNLOCK button is pressed on the remote control, then unlock the remaining doors when the UNLOCK button is pressed again within 3 seconds. You may change the programming so all doors will unlock at once when the UNLOCK button is pressed by following the steps below.

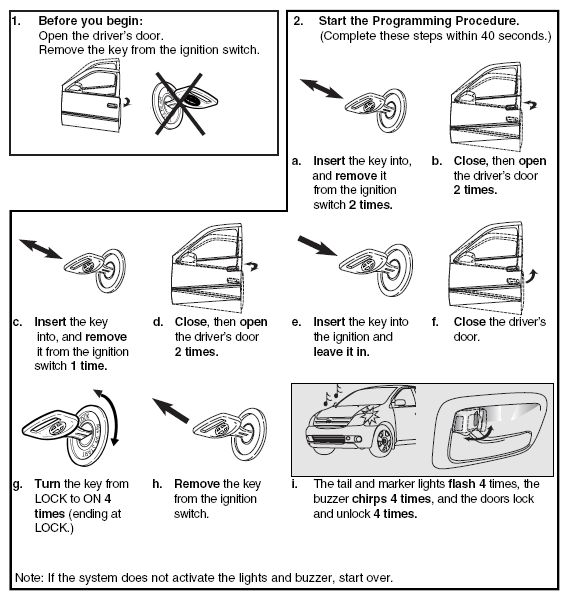

Fig 1: Driver's Door/All Doors Unlock Selection Procedure (1 Of 2)
G06741178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

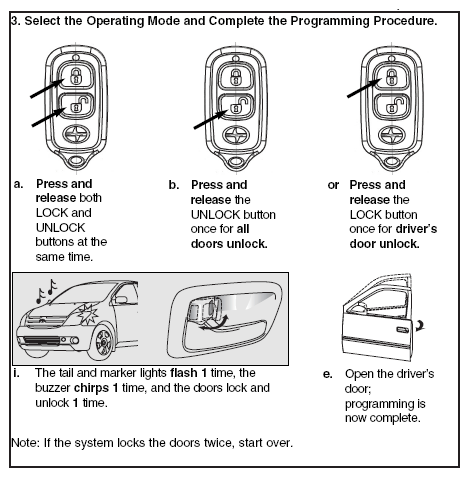

Fig 2: Driver's Door/All Doors Unlock Selection Procedure (2 Of 2)
G06741179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
