Automatic Rearming

When you unlock the doors using the remote control, the xA Security with RKE is DISARMED at the same time. However, if you do not open a door within 30 seconds, the system will relock the doors and the xA Security with RKE will Rearm 30 seconds later.

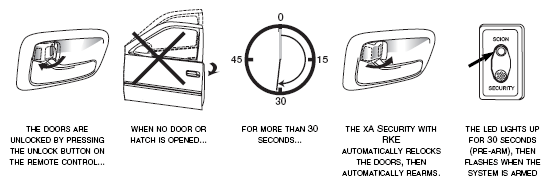

Fig 1: Automatic Rearming Procedure
G06741156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
