Alarm Descriptions

Regular ALARM(1)

When an ALARM is triggered in any way other than initial detection by the Radar Sensor, the following occur:

The horn sounds repeatedly for 60 seconds.

The headlights flash repeatedly for 60 seconds.

The tail and marker lights flash repeatedly for 60 seconds.

The interior lights turn on for 60 seconds.

The starter is disabled (no engine start) until the system is DISARMED.

The door lock will be relocked if someone reaches in and unlocks the inside lock button. After 60 seconds of ALARM, the system will Rearm and continue to protect the vehicle.

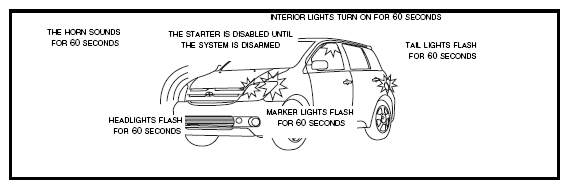

Fig 1: Identifying Alarm Triggering Condition
G06741166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
