Door Control Switch: Inspection
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DOOR CONTROL SWITCH)

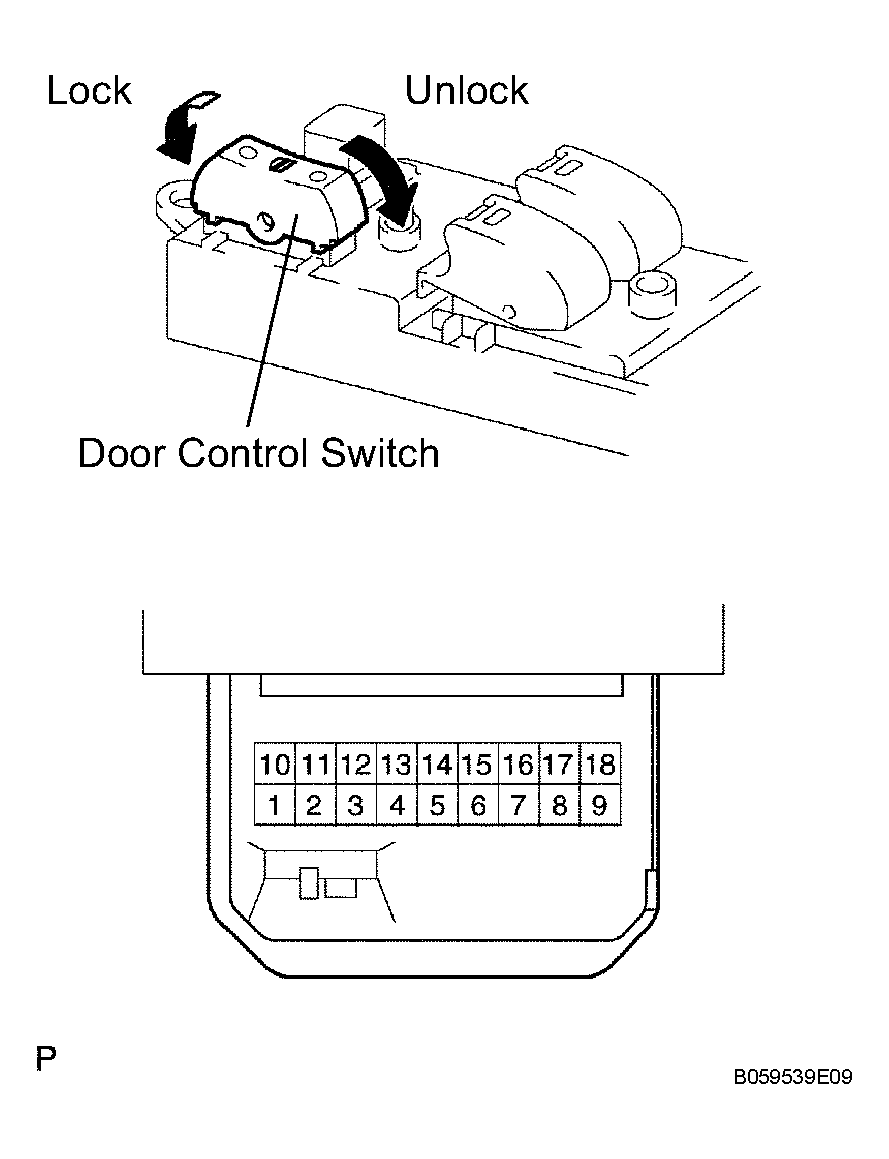

- Measure the resistance of the door control switch.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 - 5, 3 - 5 Lock Below 1 Ω 1 - 5, 3 - 5
1 - 8, 3 - 8OFF 10 kΩ or higher 1 - 8, 3 - 8 Unlock Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the switch assembly.
- Measure the resistance of the door control switch.
- INSPECT DOOR CONTROL SWITCH ASSEMBLY
- Measure the resistance of the door control switch.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 3 - 6 Lock Below 1 Ω 3 - 5 Unlock Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the switch assembly.
- Measure the resistance of the door control switch.
