PTC Heater: Notes

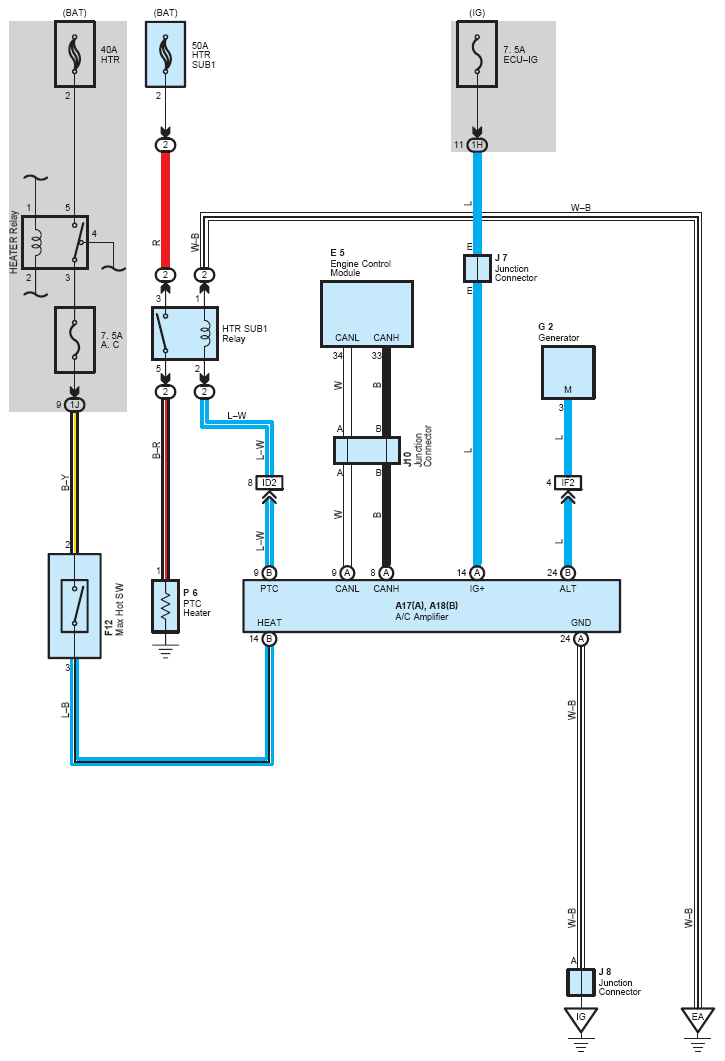

Fig 1: PTC Heater System Wiring Diagram

G08758709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
