OEM System Circuits: Headlight: Notes

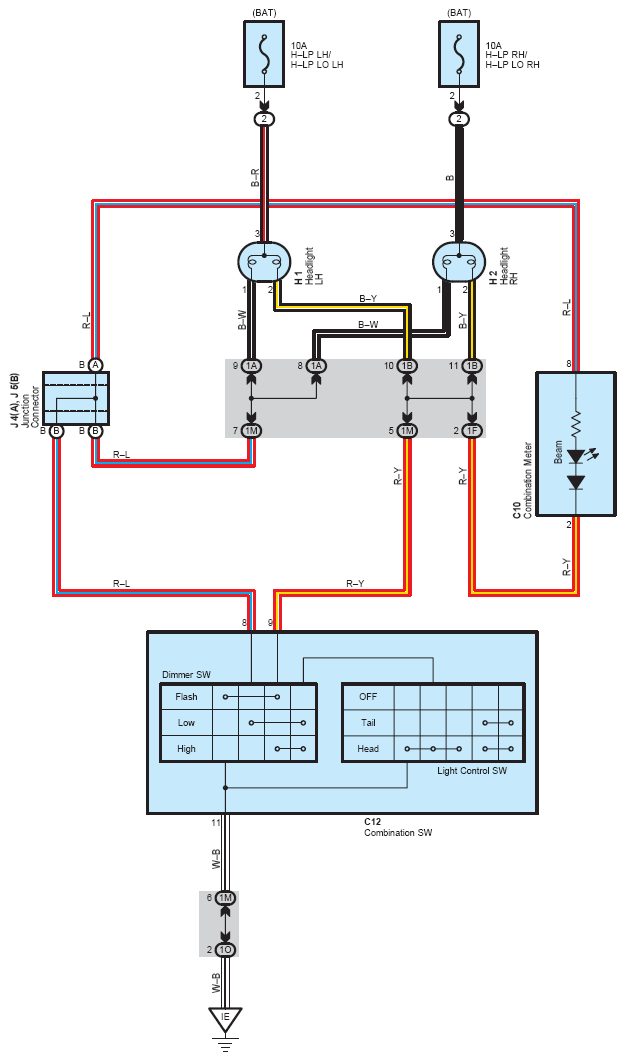

Fig 1: Headlight System Wiring Diagram

G08758657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
