System Diagram

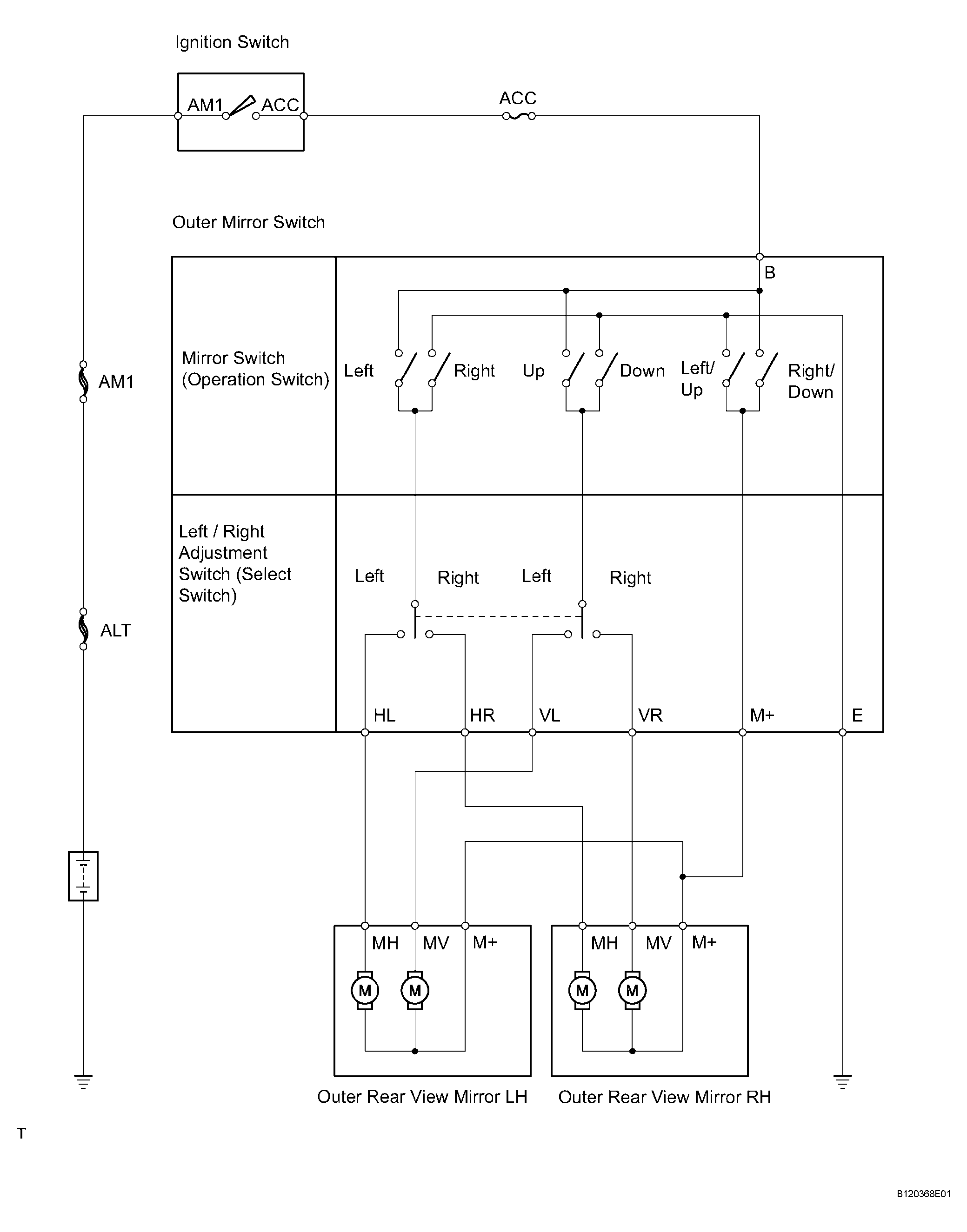

Fig 1: Power Mirror Control System - Wiring Diagram

G04159050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
