DTC P0617 Starter Relay Circuit High: Wiring Diagram

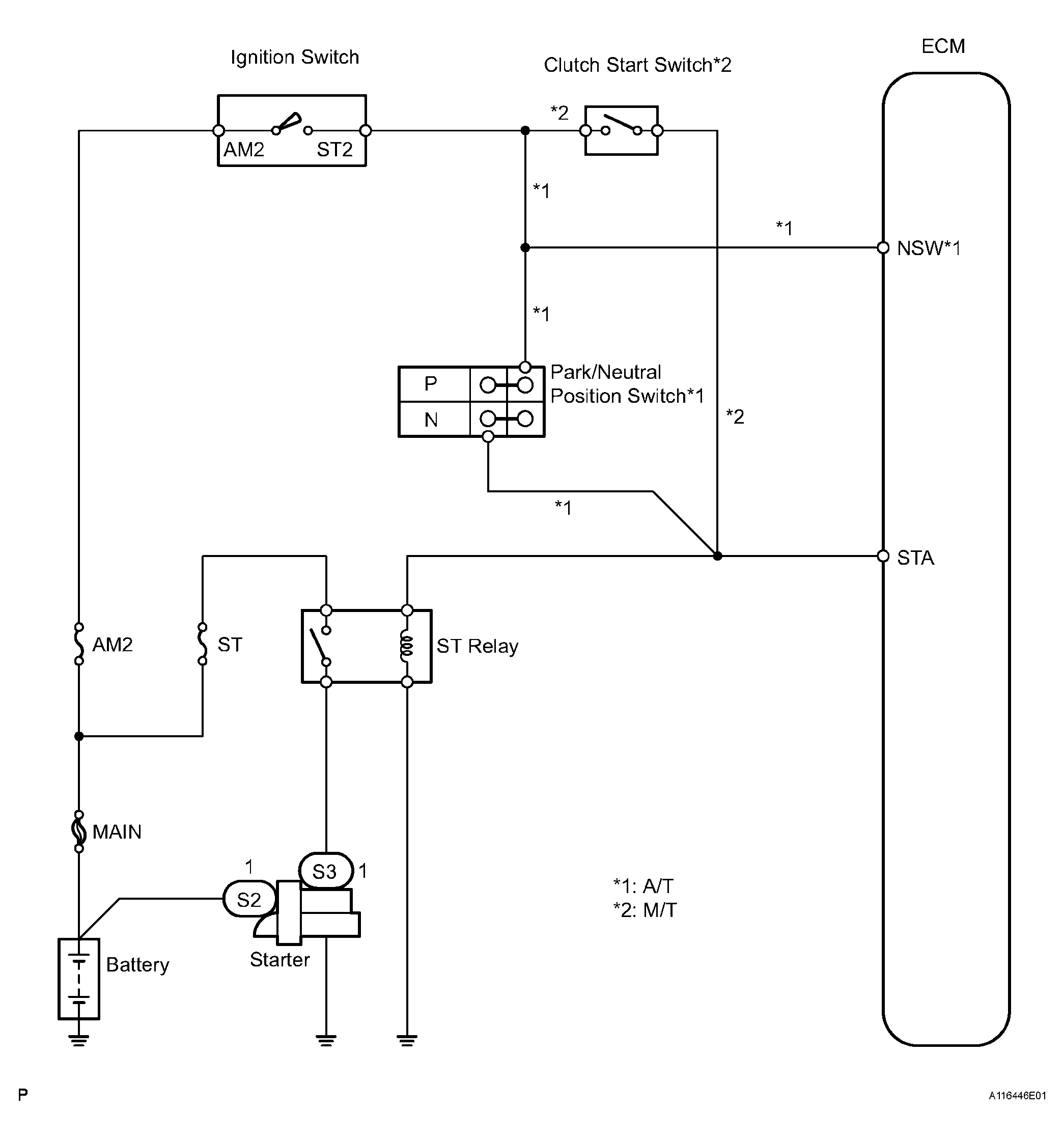

Fig 1: Wiring Diagram - Starter Relay Circuit High

G04153089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
