Rear Seat Assembly: Components

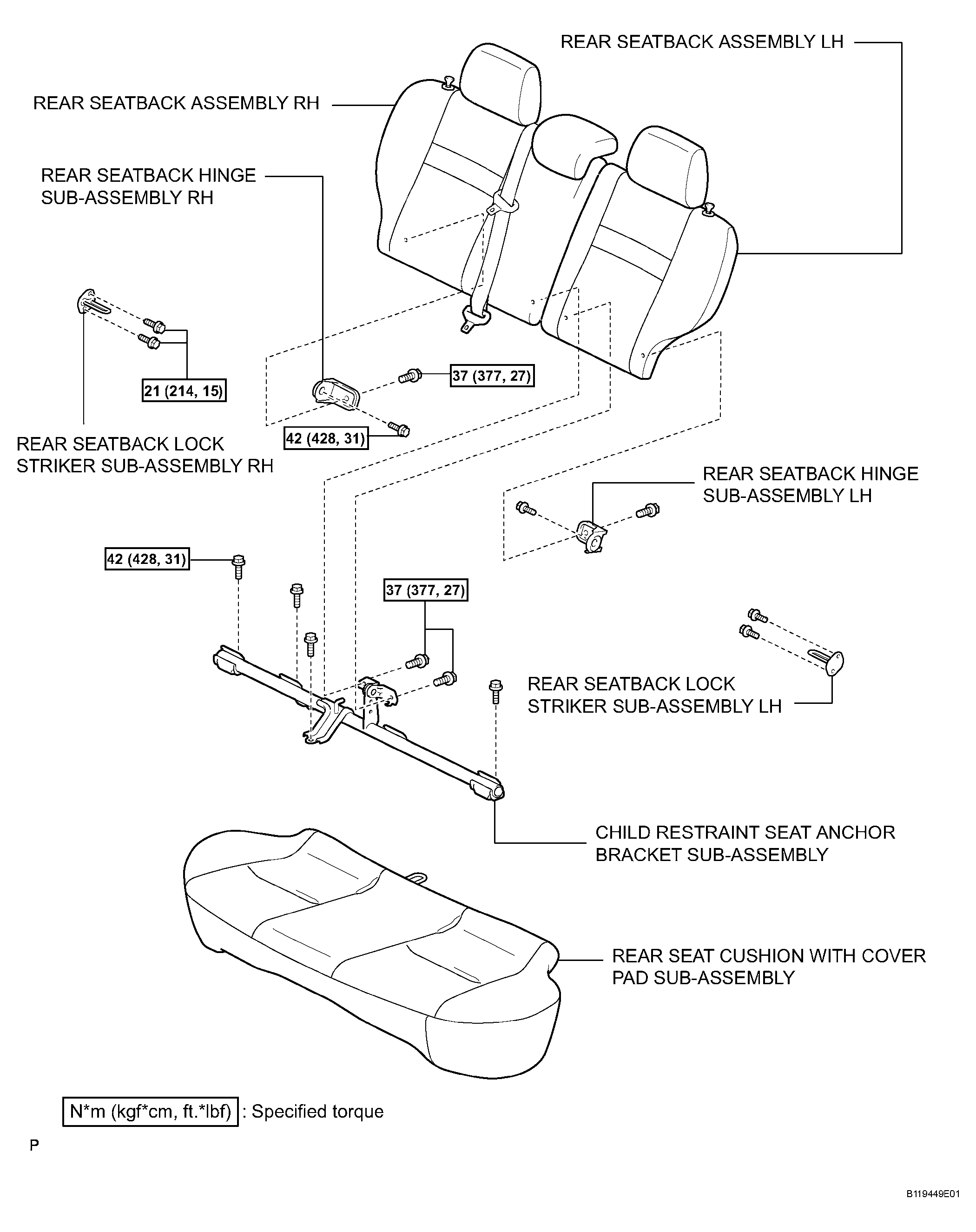

Fig 1: Identifying Rear Seat Assembly Components (1 Of 2)
G04159155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

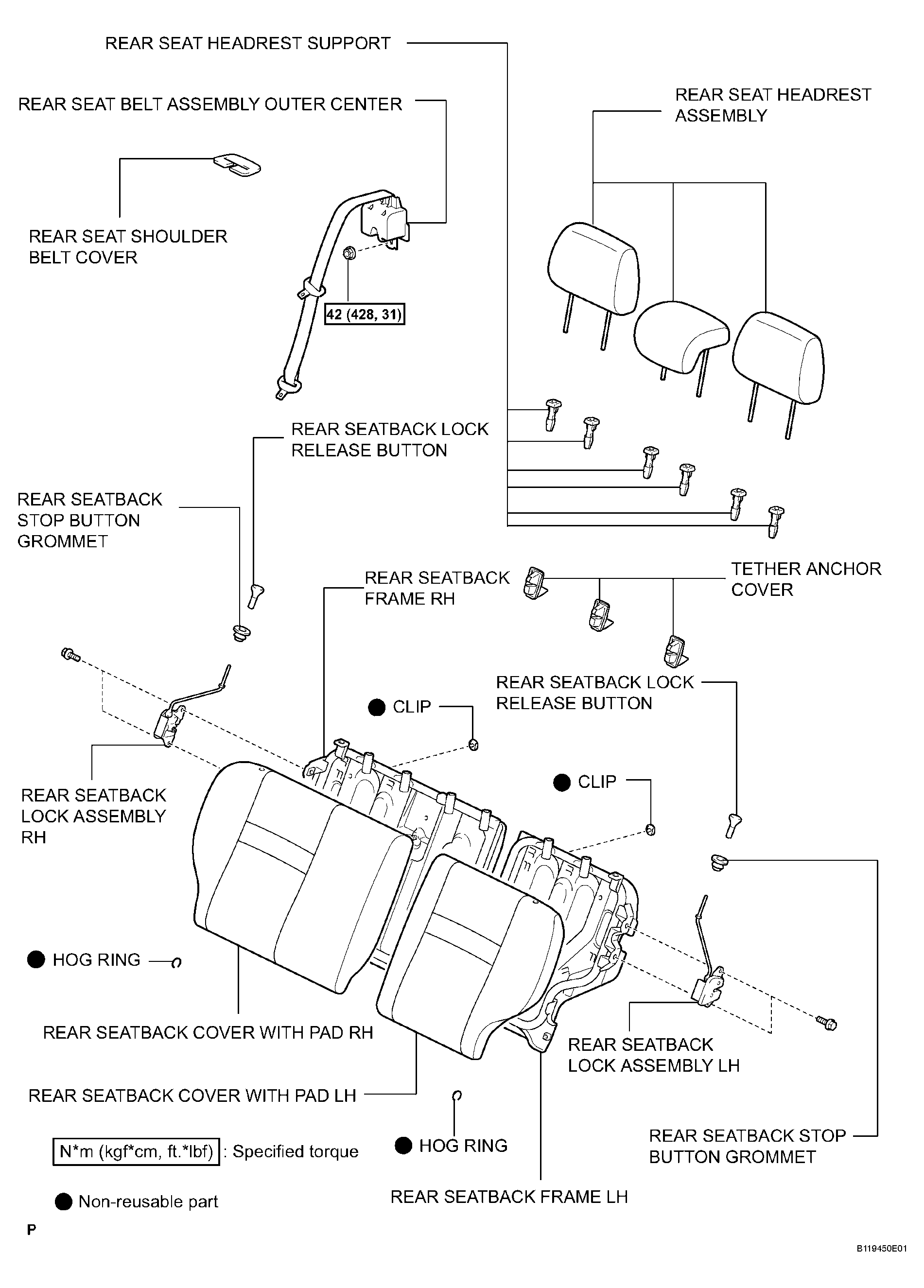

Fig 2: Identifying Rear Seat Assembly Components (2 Of 2)
G04159156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
