Front Seat Assembly: Disassembly

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

CAUTION: Wear protective gloves. Sharp surfaces on the seatback spring and seat adjuster may injure your hands.

REMOVE FRONT SEAT HEADREST ASSEMBLY

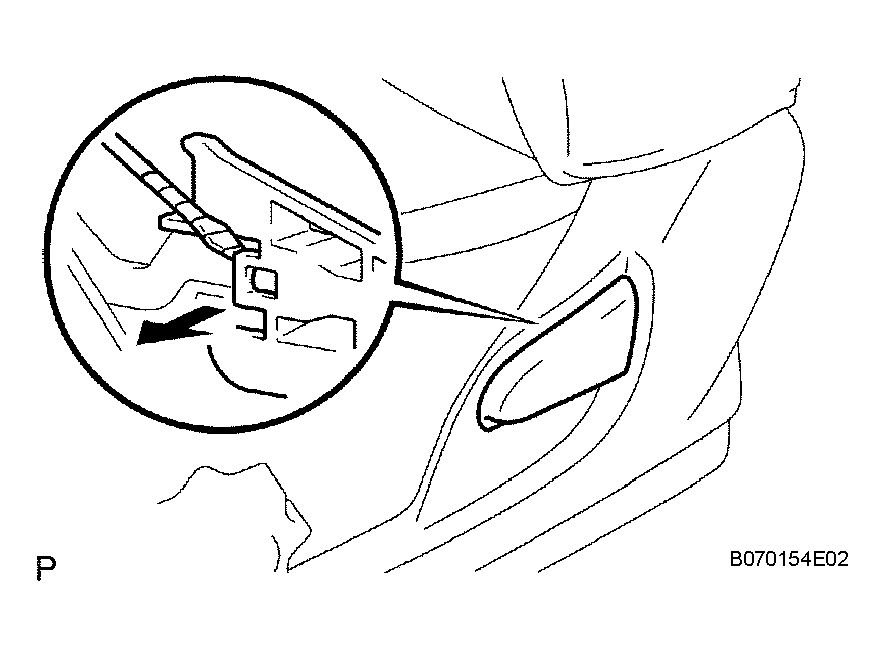

REMOVE RECLINING ADJUSTER RELEASE HANDLE LH
1. Raise the reclining adjuster release handle to reveal the claw.
2. Using a screwdriver, detach the claw and remove the release handle.

  Fig 1: Detaching Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.

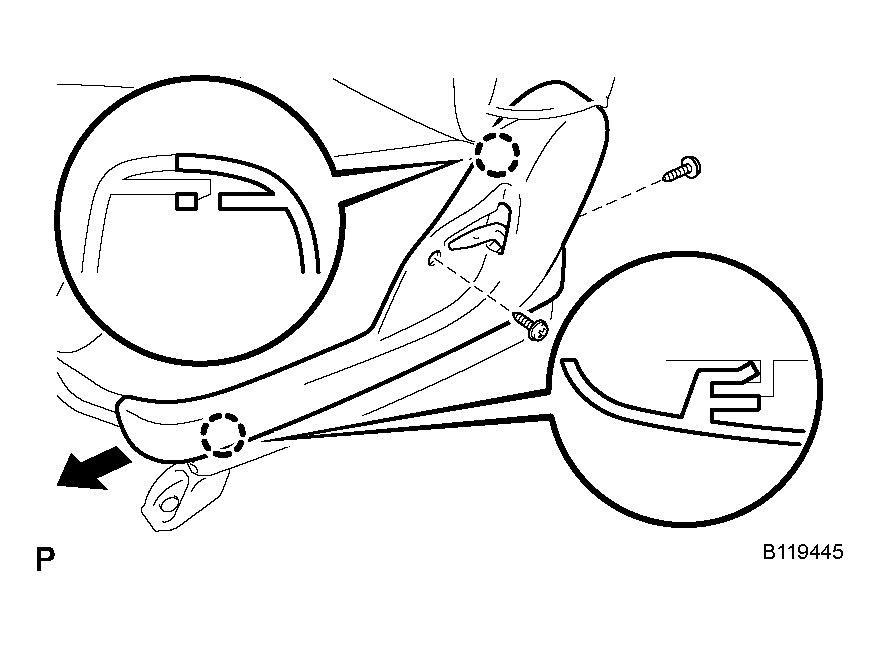

REMOVE FRONT SEAT CUSHION SHIELD LH
1. Remove the 2 screws.
2. Using a screwdriver, detach the 2 claws and remove the seat cushion shield.

  Fig 2: Detaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (See REMOVAL )

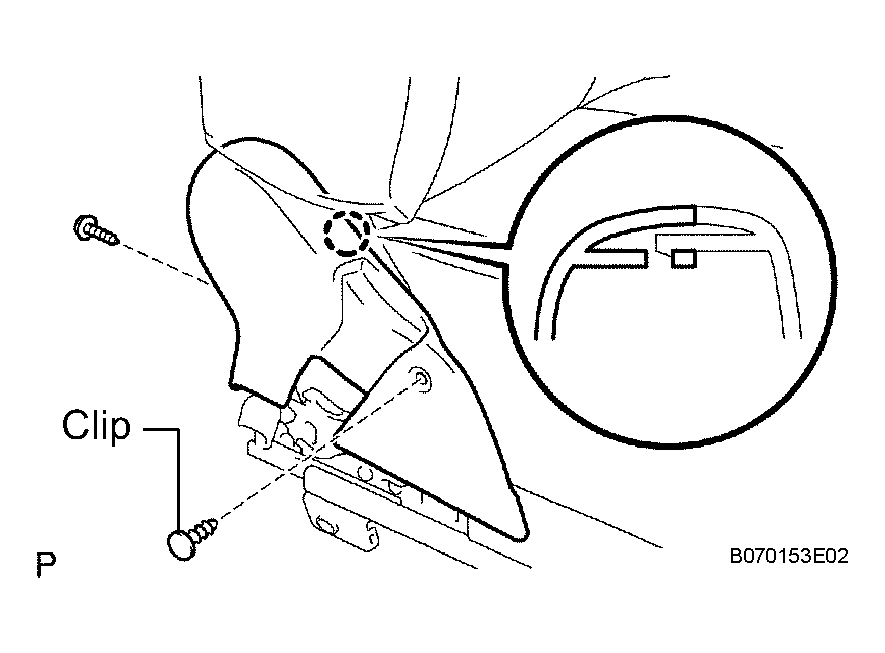

REMOVE FRONT SEAT CUSHION SHIELD INNER LH
1. Remove the clip and screw.
2. Using a screwdriver, detach the claw and remove the cushion shield.

  Fig 3: Detaching Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE FRONT SEATBACK ASSEMBLY

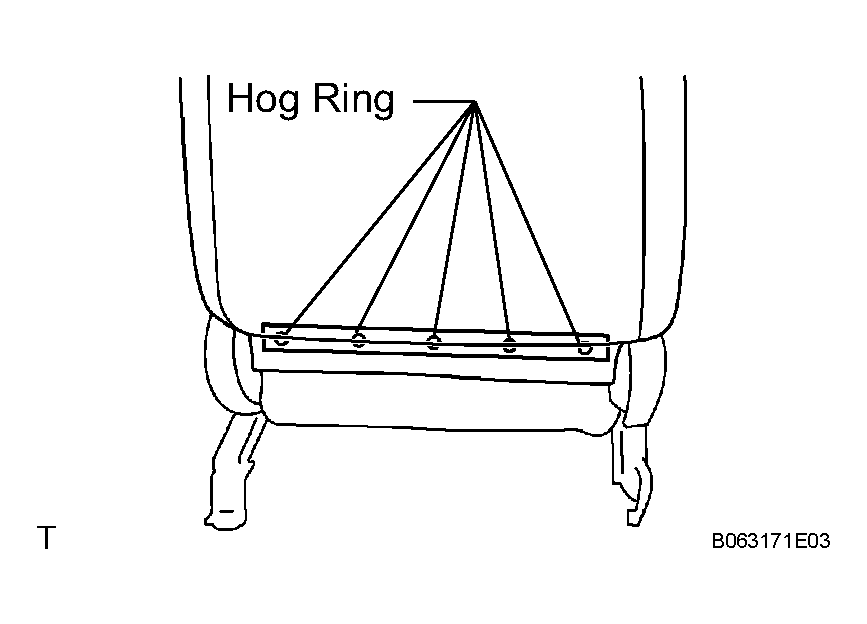

1. Remove the hog rings.

  Fig 4: Removing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

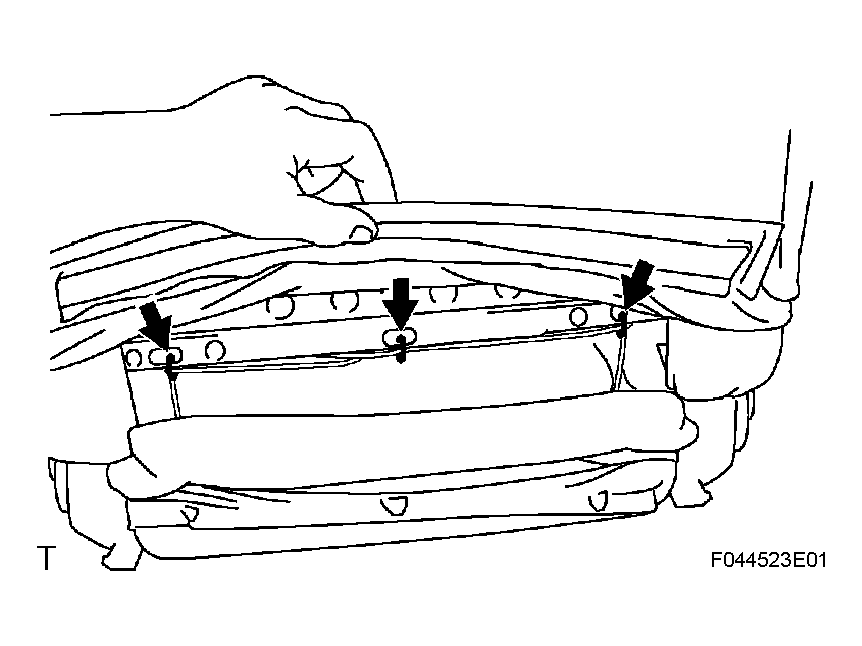

2. Lift up the seatback cover and remove the hog rings.
3. Disconnect the clamp.

  Fig 5: Lifting Up Seatback Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

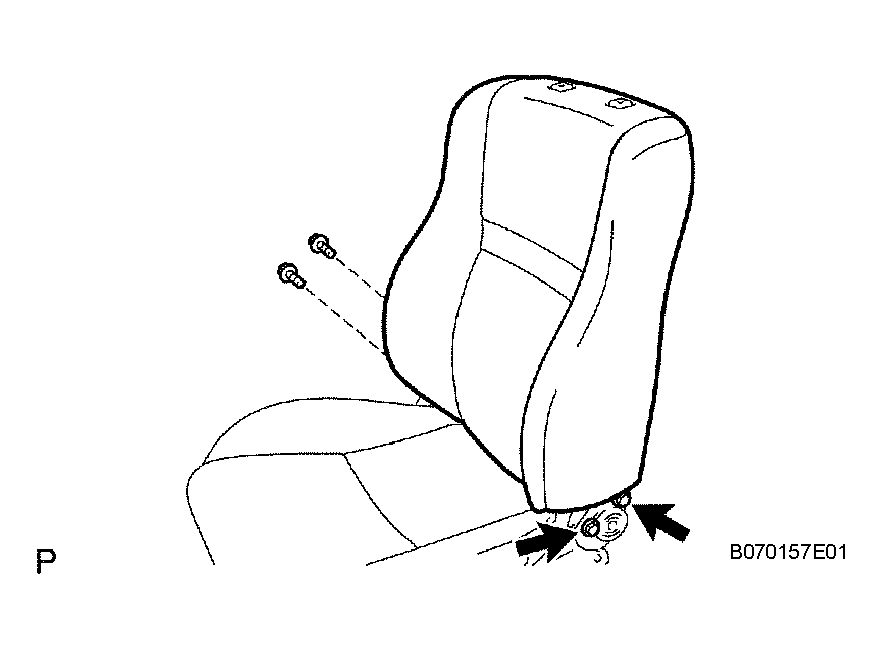

4. Remove the 4 bolts and seatback.

  Fig 6: Removing Bolts Seatback
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEATBACK COVER

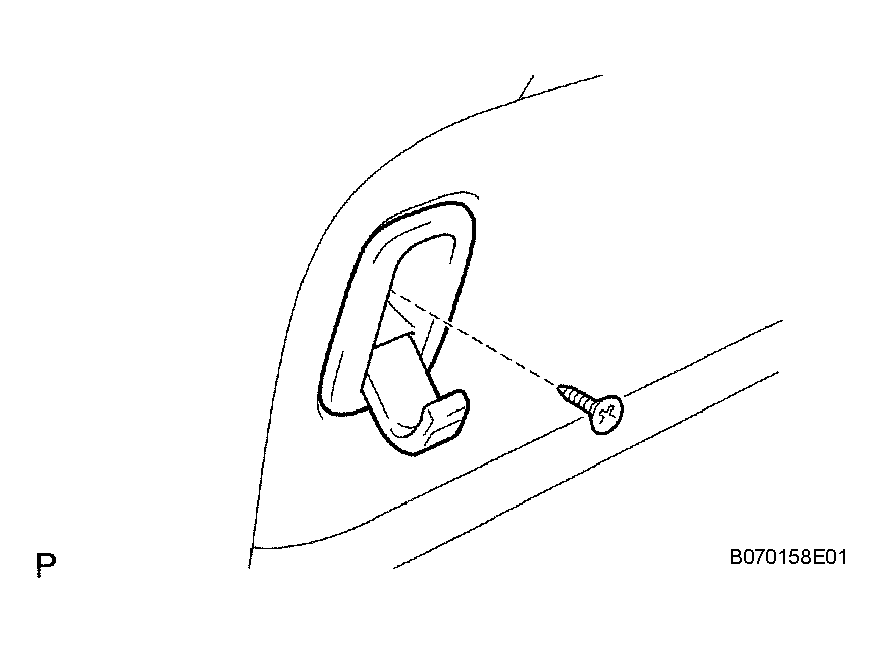

1. w/ Seat hook:
  Remove the screw and seatback hook.

  Fig 7: Removing Front Seatback Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

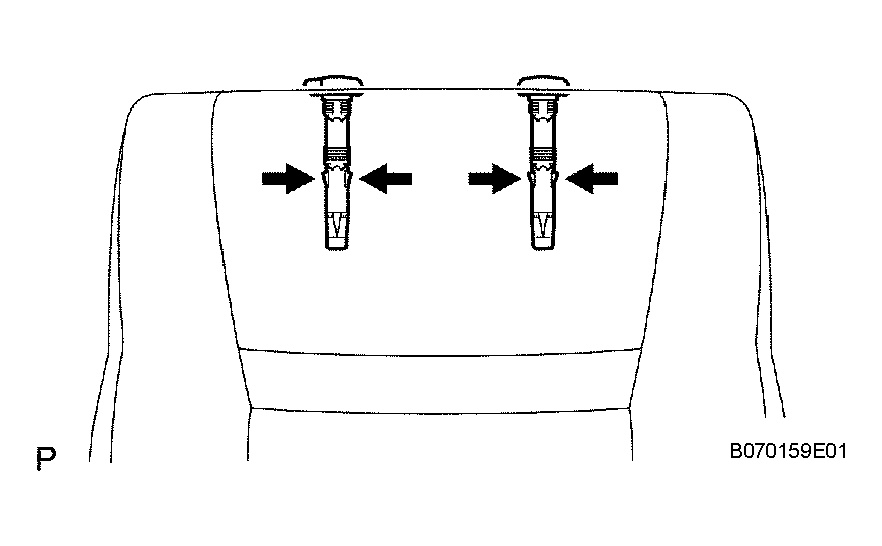

2. Lift up the seatback cover to the top of the seat, and then detach the 4 claws and remove the 2 headrest supports.

  Fig 8: Lifting Up Seatback Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

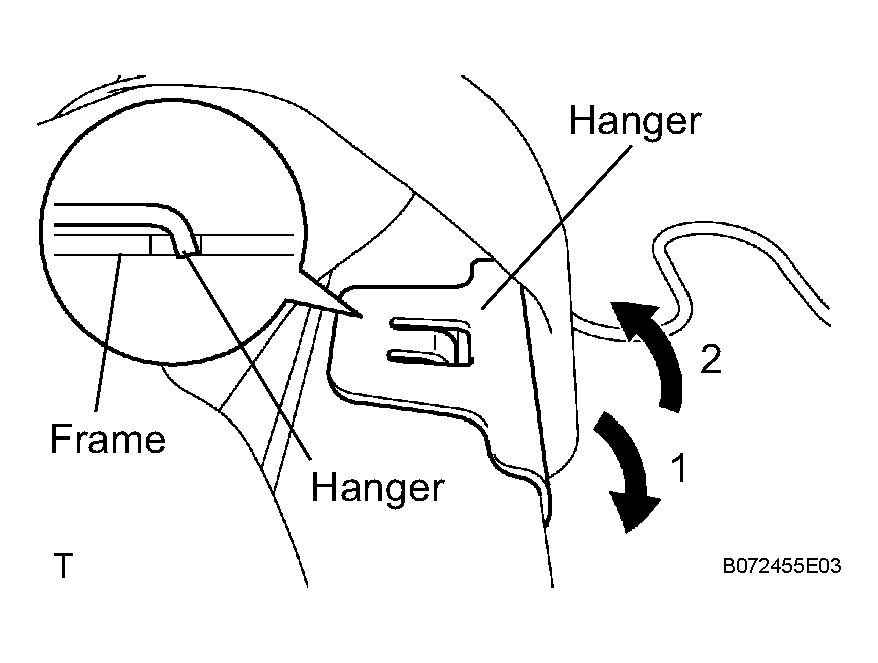

3. w/ Front seat side airbag:
  Using a screwdriver, pry out the hanger as shown in the illustration.

  NOTE: Be careful not to damage the airbag.
4. Remove the hog rings and the seatback cover (with pad) from the seatback spring.
5. Remove the hog ring and remove the seatback cover.

  Fig 9: Removing Hog Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

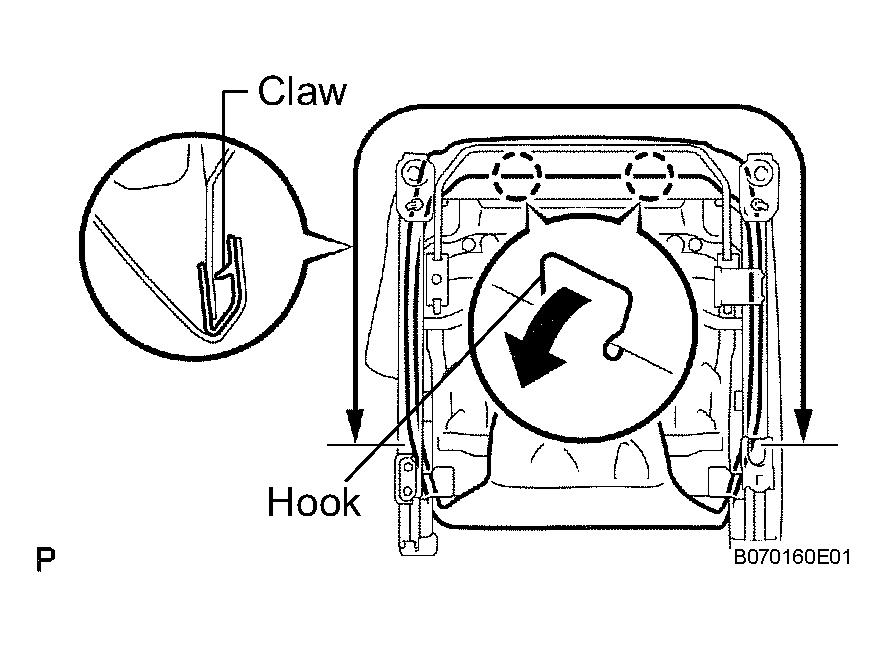

REMOVE FRONT SEAT CUSHION COVER
1. Remove the hog rings.
2. Detach the claw of the front part of the seat adjuster.
3. Detach the hook and remove the seat cushion cover (with pad) from seat adjuster.
4. Remove the hog rings and seat cushion cover.

  Fig 10: Removing Front Seat Cushion Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

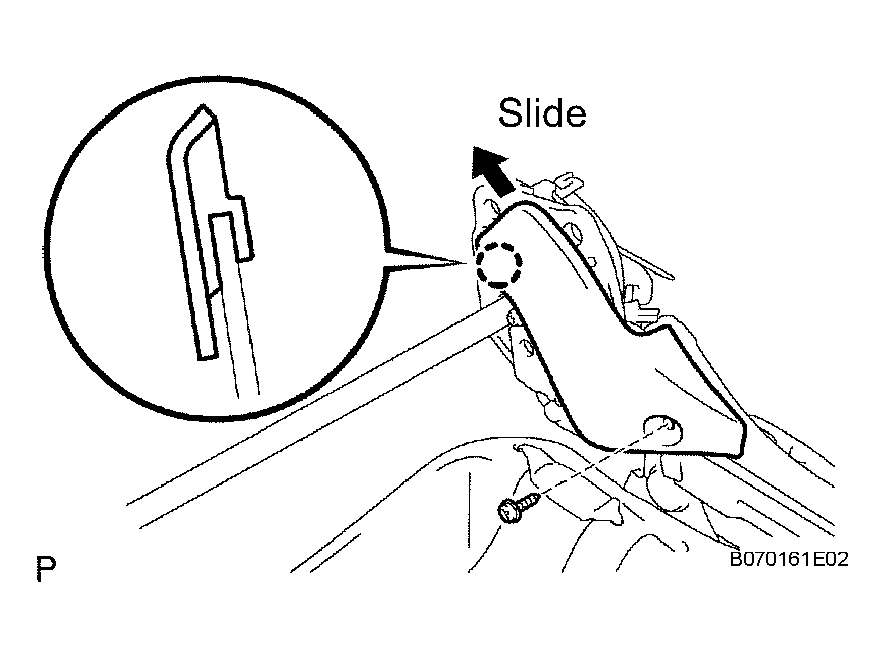

REMOVE RECLINING ADJUSTER INSIDE COVER LH
1. Remove the screw and inside cover.
REMOVE RECLINING ADJUSTER INSIDE COVER RH
1. Remove the screw and inside cover.
REMOVE SEAT POSITION AIRBAG SENSOR (See ON-VEHICLE INSPECTION )

Fig 11: Removing Seat Position Airbag Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
