Exterior/Interior Trim: Interior: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

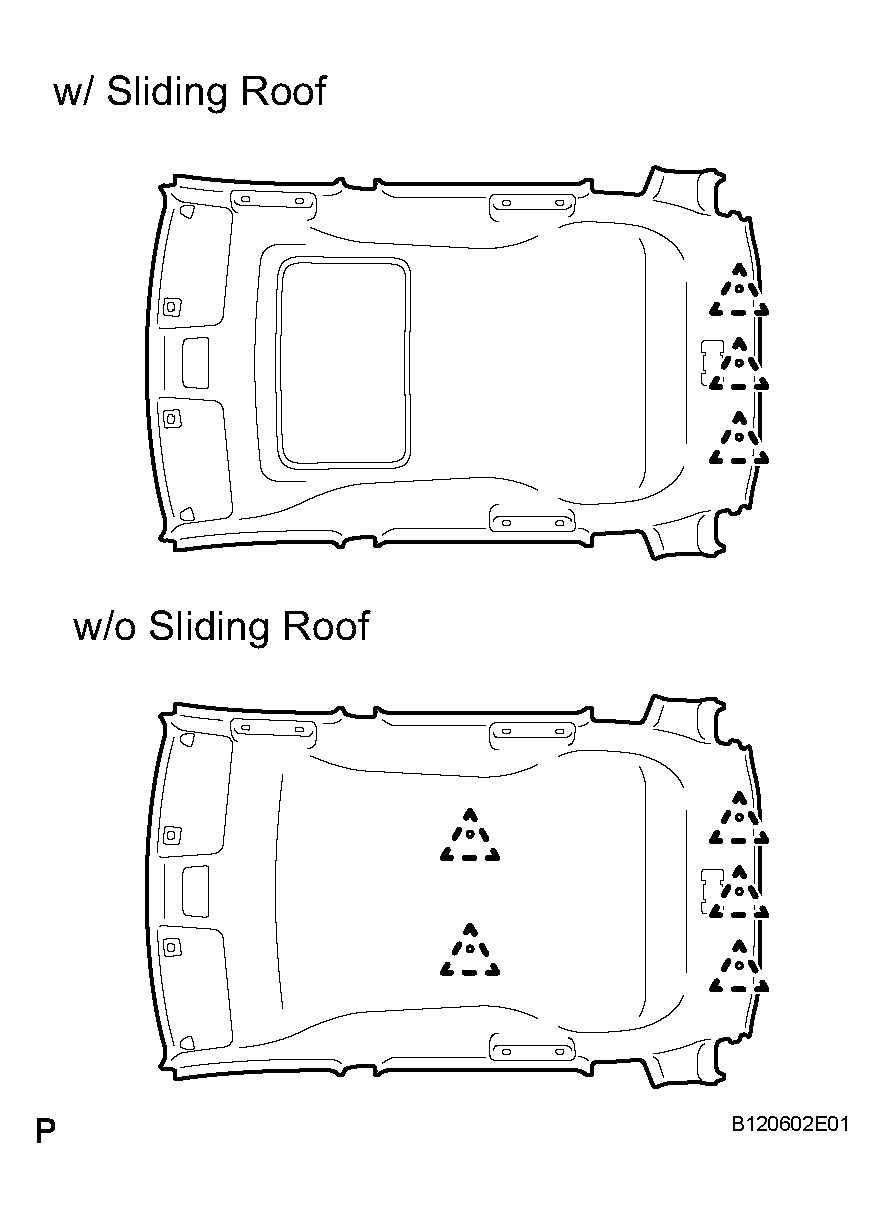

INSTALL ROOF HEADLINING ASSEMBLY
1. w/ Sliding roof:
  Install the headlining with the 3 clips.
2. w/o Sliding roof:
  Install the headlining with the 5 clips.
INSTALL SUN ROOF OPENING TRIM MOULDING (w/ Sliding Roof)

Fig 1: Installing Sun Roof Opening Trim Moulding
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VISOR HOLDER
1. Install the visor holder by turning it clockwise.

  Fig 2: Installing Visor Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ASSIST GRIP ASSEMBLY
1. Install the assist grip with the 2 bolts.
2. Attach the 2 claws to install the assist grip covers.
INSTALL NO. 1 ROOM LIGHT ASSEMBLY
1. Connect the room light connector.
2. Install the light with the 2 screws.

  Fig 3: Installing No. 1 Room Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 4 claws to install the lens cover.
INSTALL MAP LIGHT ASSEMBLY
1. Connect the map light connector.

  Fig 4: Connecting Map Light Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

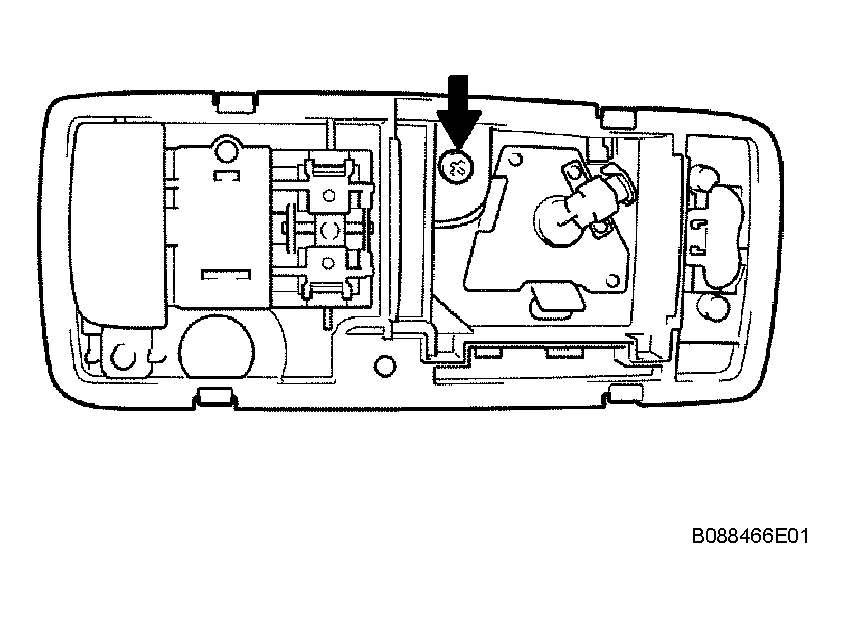

2. Install the light with the screw.

  Fig 5: Installing Light With Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the lens cover with the screw.
INSTALL RH VISOR ASSEMBLY
1. Install the visor with the 2 screws.
INSTALL LH VISOR ASSEMBLY
1. Install the visor with the 2 screws.
INSTALL FRONT PILLAR GARNISH RH
1. w/ Curtain shield airbag:
  Remove the protective cover.

  Fig 6: Removing Protective Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 2 claws and 2 clips, and install the garnish.
INSTALL FRONT PILLAR GARNISH LH

Fig 7: Installing Front Pillar Garnish LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the RH side.

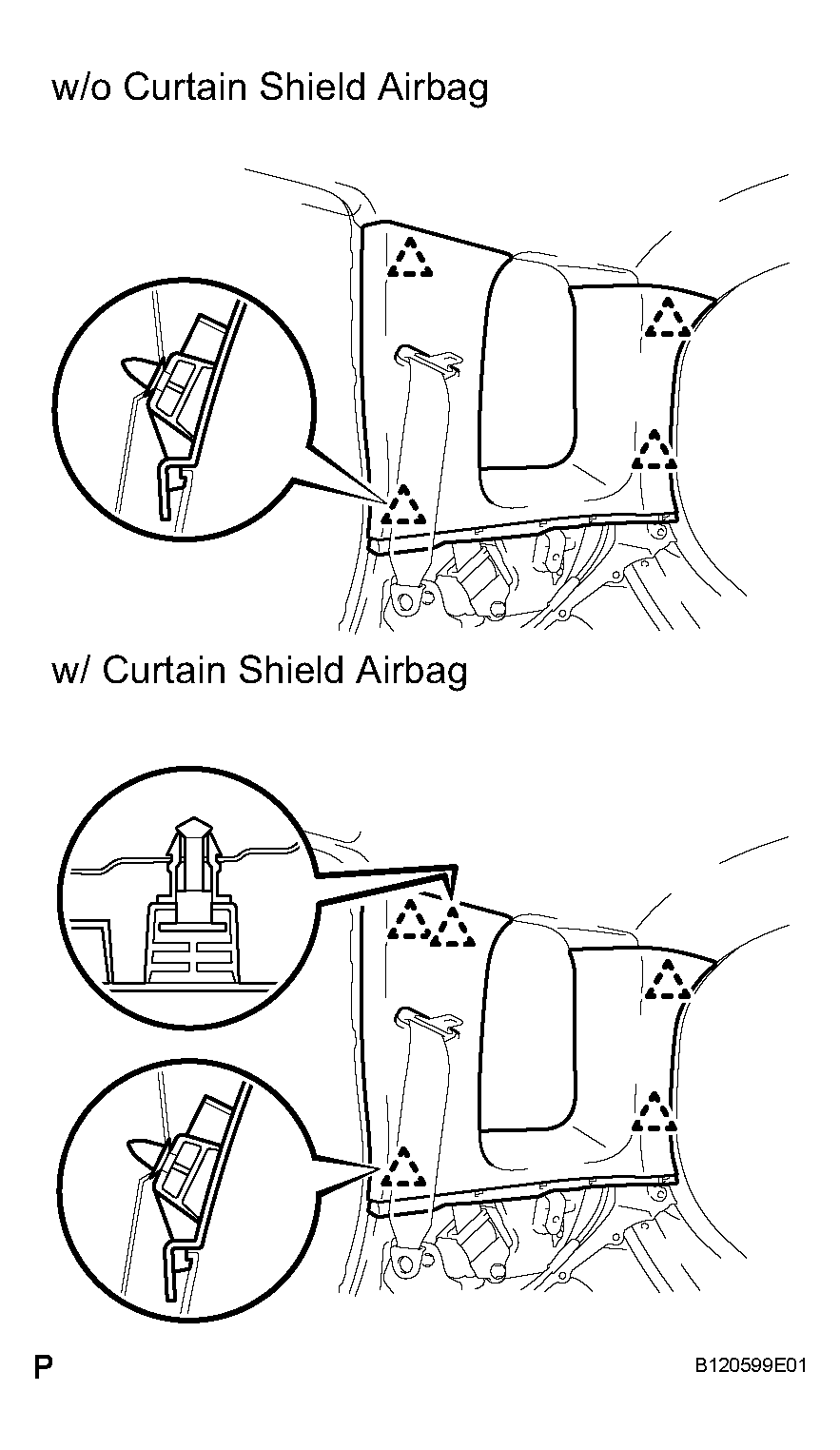

INSTALL ROOF SIDE GARNISH INNER RH
1. w/o Curtain shield airbag:
  Attach the 4 clips to install the side garnish.
2. w/ Curtain shield airbag:
  Attach the 5 clips to install the side garnish.
INSTALL ROOF SIDE GARNISH INNER LH

Fig 8: Installing Roof Side Garnish Inner LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures described for the RH side.

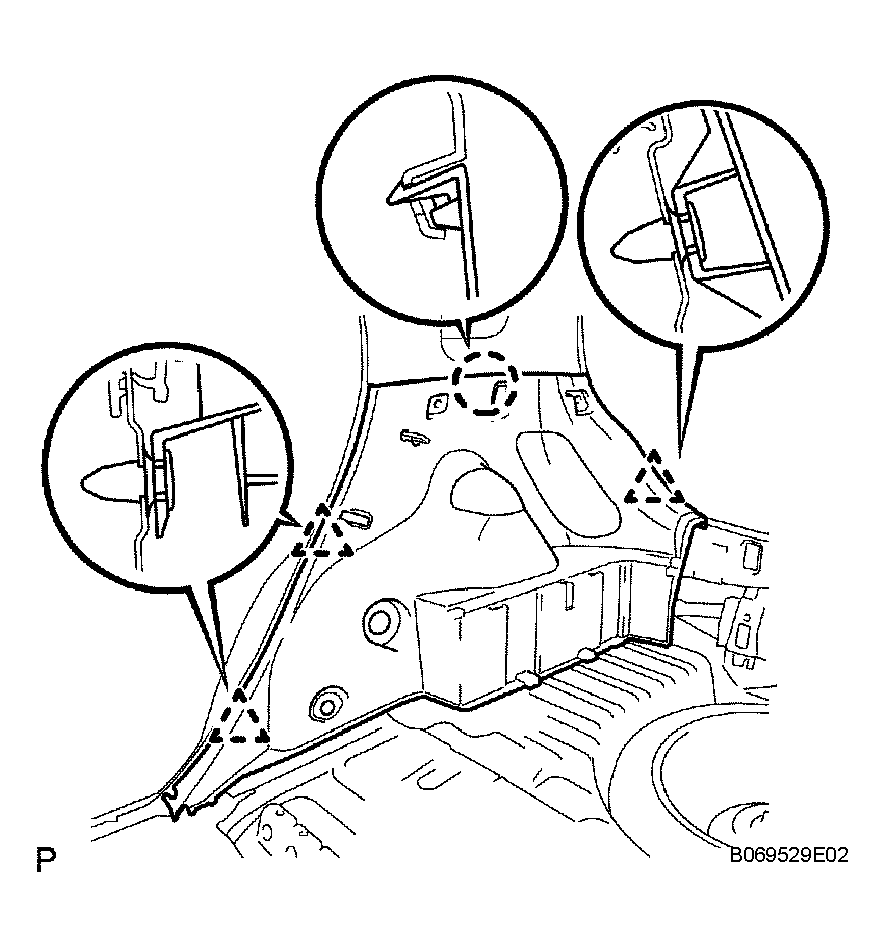

INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
1. Attach the 3 clips and claw, and install the side panel.
2. Install the rear seat 3 point type belt floor anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
3. Install the seatback hinge with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 9: Installing Seatback Hinge With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the compartment trim hook with the screw.
5. Install the 2 screws and 2 covers.
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
HINT:

Use the same procedures described for the RH side.
INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY
1. Install the anchor bracket with the 4 bolts.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 10: Installing Anchor Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

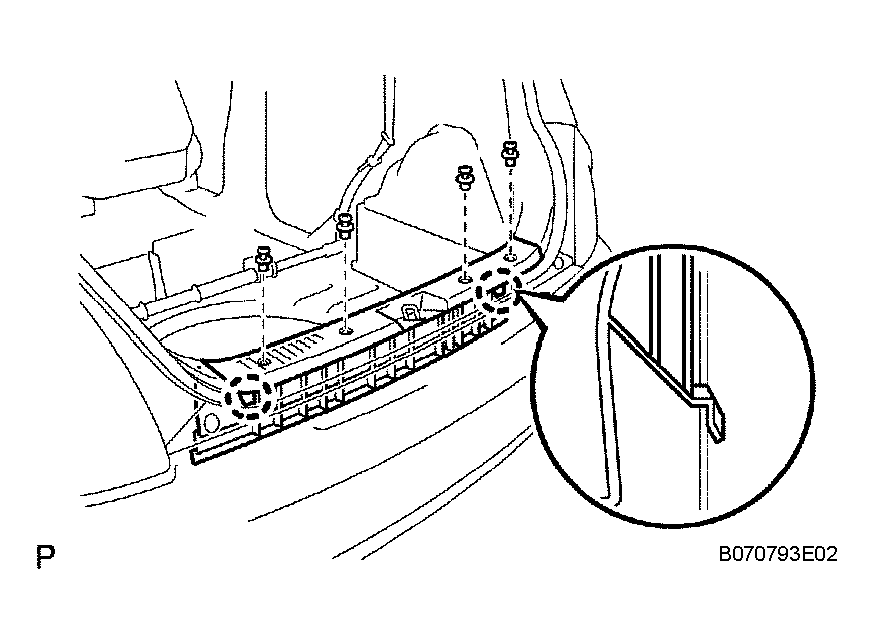

INSTALL DECK TRIM COVER REAR
1. Attach the 2 claws to install the trim cover.
2. Install the 4 clips.
INSTALL SPARE WHEEL COVER ASSEMBLY
INSTALL DECK FLOOR BOX RH
1. Install the floor box with the 2 bolts.
INSTALL NO. 1 DECK BOARD
INSTALL TONNEAU COVER ASSEMBLY

Fig 11: Installing Tonneau Cover Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK ASSEMBLY RH (See INSTALLATION )
INSTALL REAR SEATBACK ASSEMBLY LH (See INSTALLATION )
INSTALL REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY (See INSTALLATION )

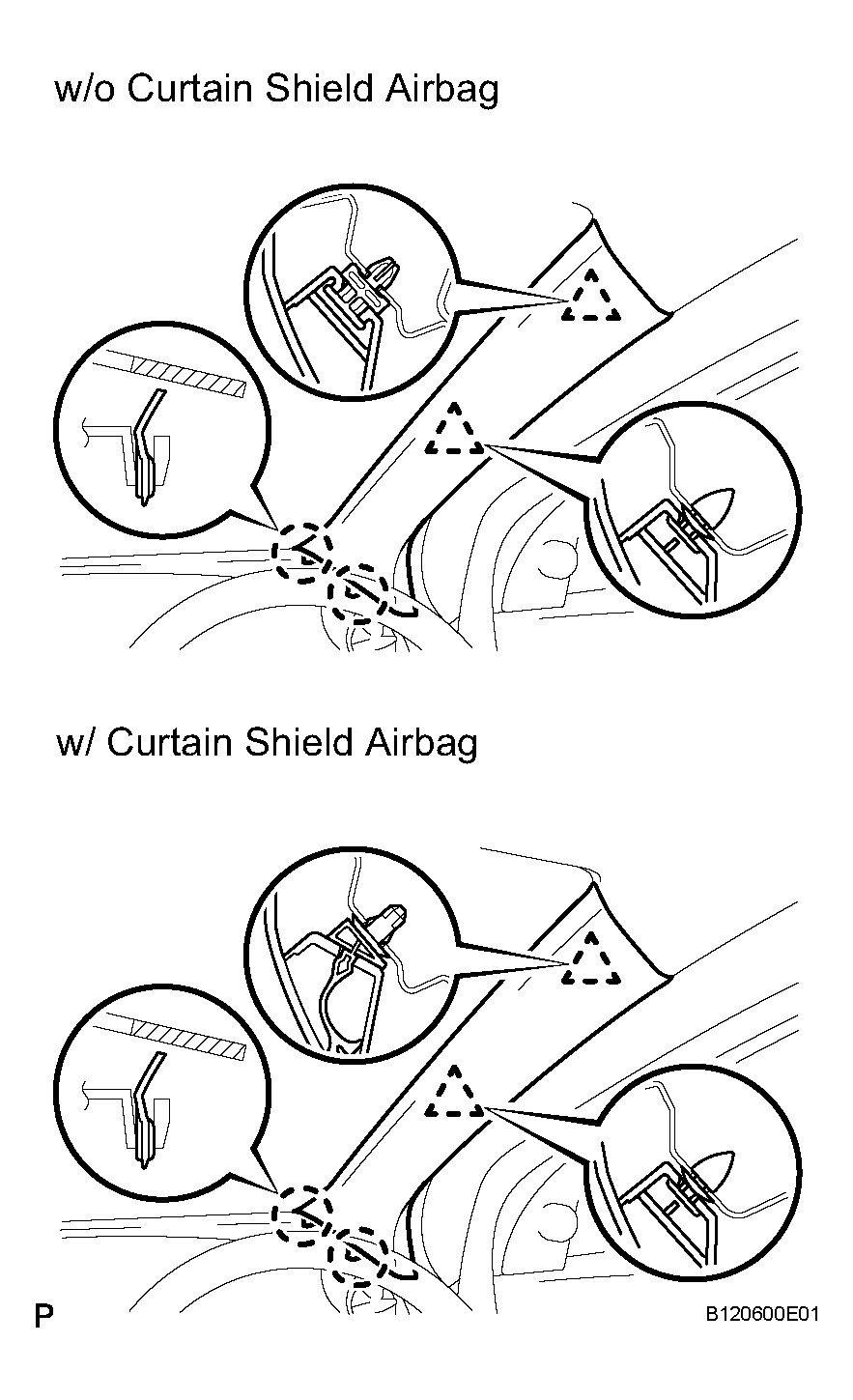

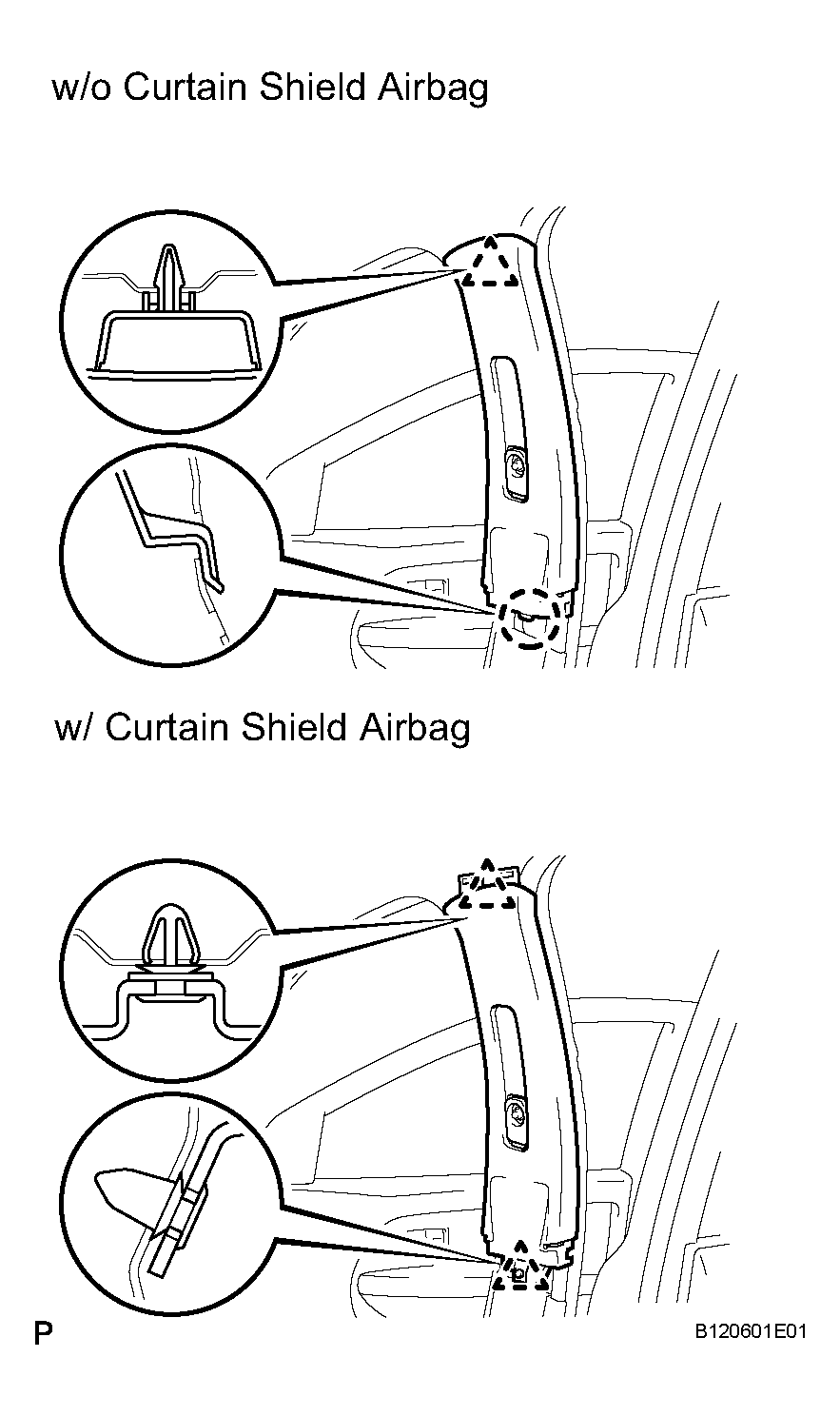

INSTALL CENTER PILLAR GARNISH UPPER RH
1. w/o Curtain shield airbag:
  Attach the claw and clip to install the center pillar garnish.
2. w/ Curtain shield airbag:
  Attach the 2 clips to install the center pillar garnish.
3. Install the front seat outer belt shoulder anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
4. Install the shoulder anchor cover.
INSTALL CENTER PILLAR GARNISH UPPER LH
HINT:

Use the same procedures described for the RH side.

Fig 12: Installing Center Pillar Garnish Upper LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

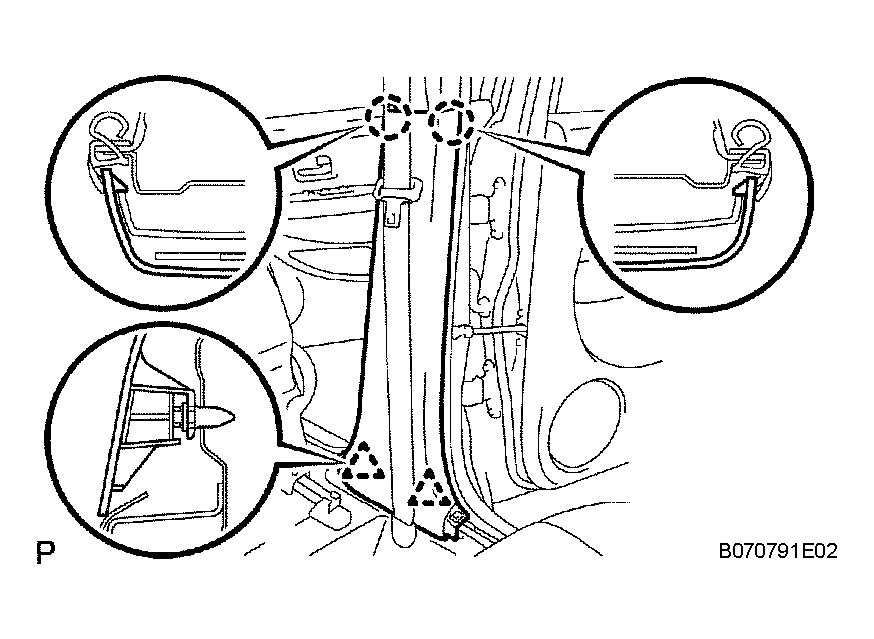

INSTALL CENTER PILLAR GARNISH LOWER RH
1. Attach the 2 clips and 2 claws to install the center pillar garnish.
2. Install the front seat outer belt floor anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
3. Install the floor anchor cover.
INSTALL CENTER PILLAR GARNISH LOWER LH
HINT:

Use the same procedures described for the RH side.

Fig 13: Installing Center Pillar Garnish Lower LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

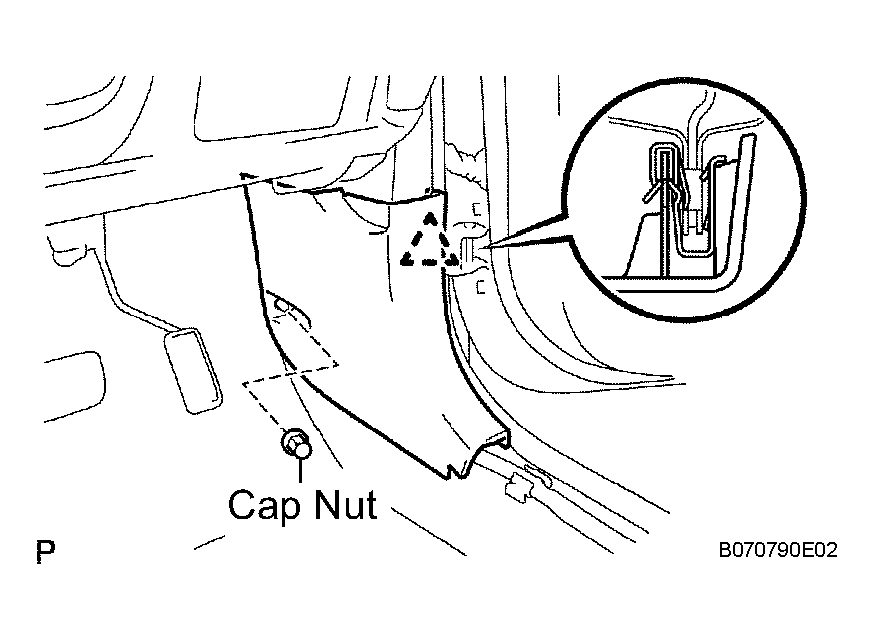

INSTALL COWL SIDE TRIM BOARD RH
1. Attach the clip to install the trim board.
2. Install the cap nut.
INSTALL COWL SIDE TRIM BOARD LH
HINT:

Use the same procedures described for the RH side.

Fig 14: Installing Cowl Side Trim Board LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

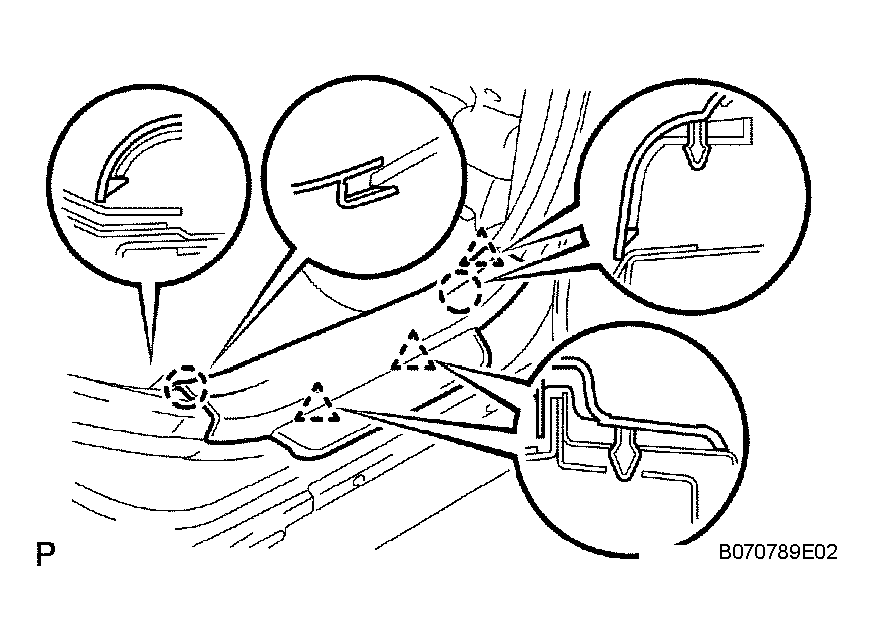

INSTALL REAR DOOR SCUFF PLATE RH
1. Attach the 2 claws and 3 clips to install the scuff plate.
INSTALL REAR DOOR SCUFF PLATE LH
HINT:

Use the same procedures described for the RH side.

Fig 15: Installing Rear Door Scuff Plate LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

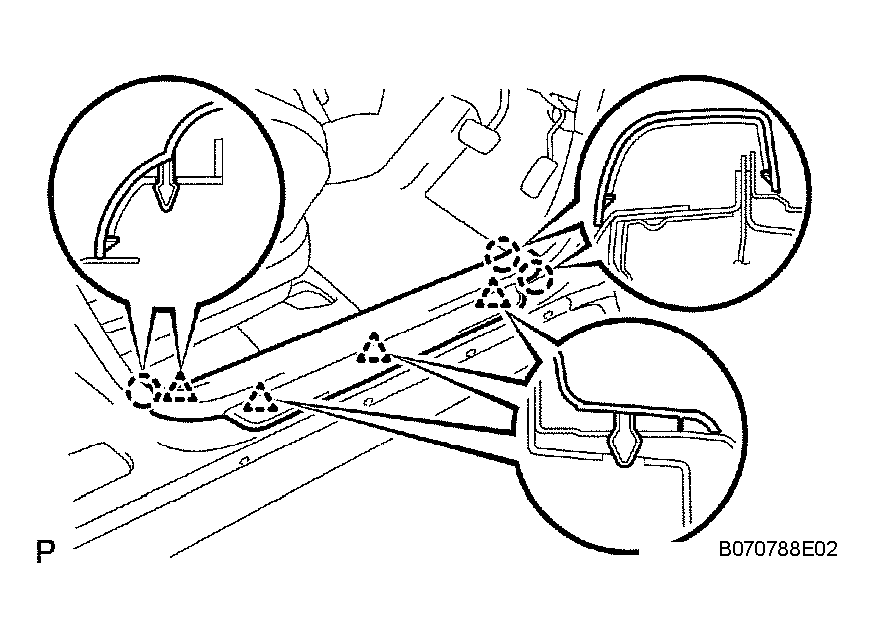

INSTALL FRONT DOOR SCUFF PLATE RH
1. Attach the 3 claws and 4 clips to install the scuff plate.
INSTALL FRONT DOOR SCUFF PLATE LH
HINT:

Use the same procedures described for the RH side.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  Fig 16: Installing Front Door Scuff Plate RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
