Ignition-Controlled Automatic Door Lock/Unlock

The xA Security with RKE is factory-set to automatically lock your vehicle's doors when you turn the ignition key to "ON" or "START", and unlock the doors when you turn the key back to "ACC" or "LOCK". To change the programming of this feature, follow the procedure shown below.

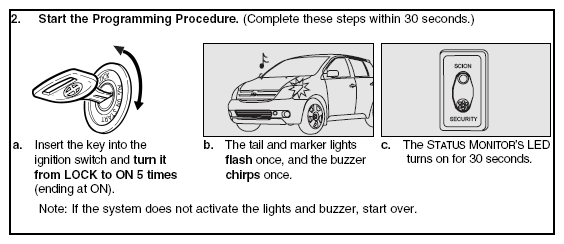

Fig 1: Ignition-Controlled Automatic Door Lock/Unlock Procedure (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

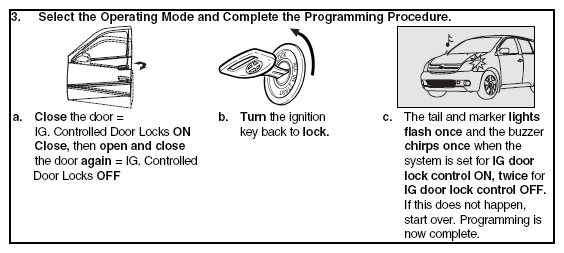

Fig 2: Ignition-Controlled Automatic Door Lock/Unlock Procedure (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Ignition-Controlled Automatic Door Lock/Unlock Procedure (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
