Differential Case: Components

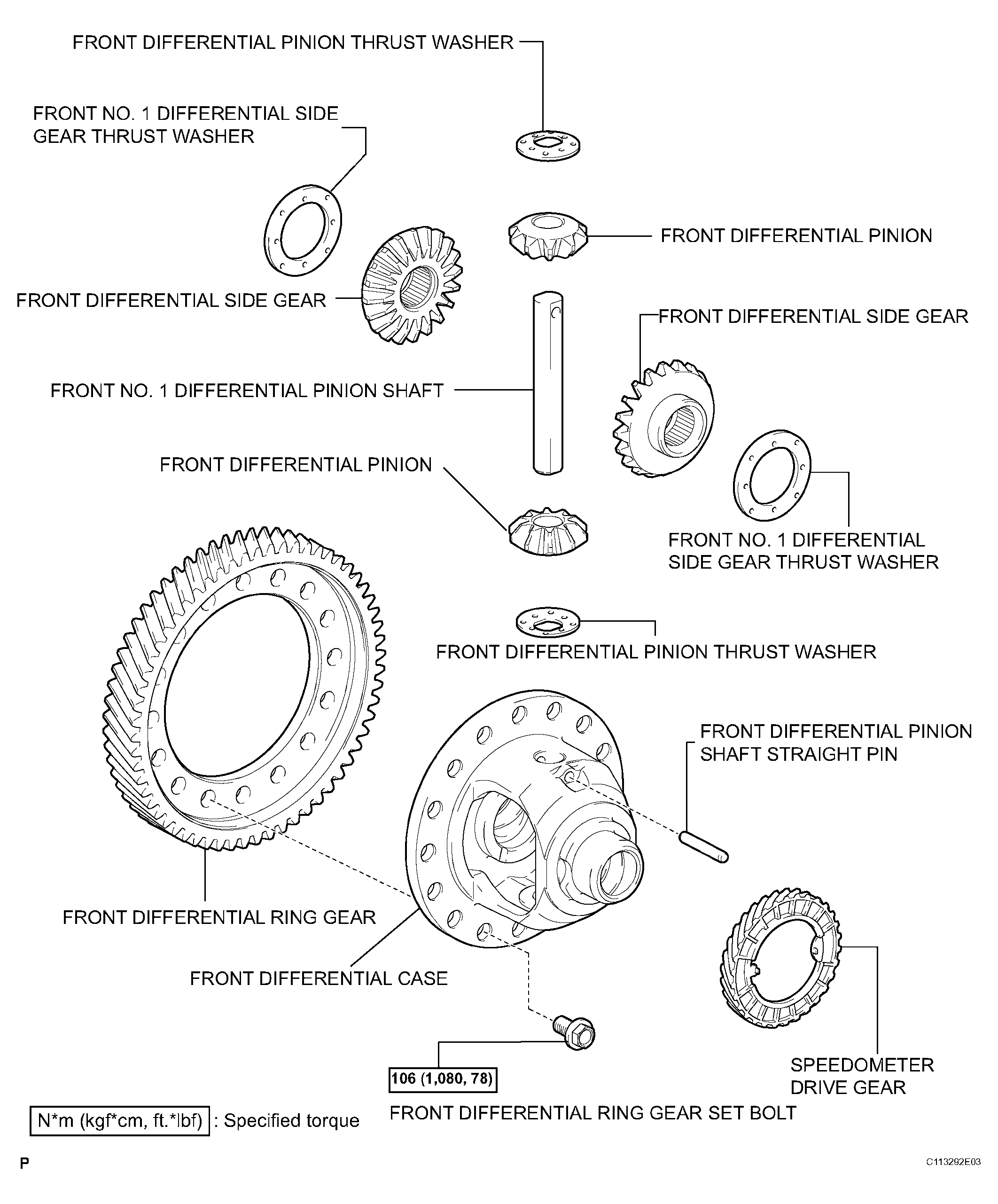

Fig 1: Differential Case Replacement Components With Torque Specifications

G04222800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
