Fuel Pump: Reassembly

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY

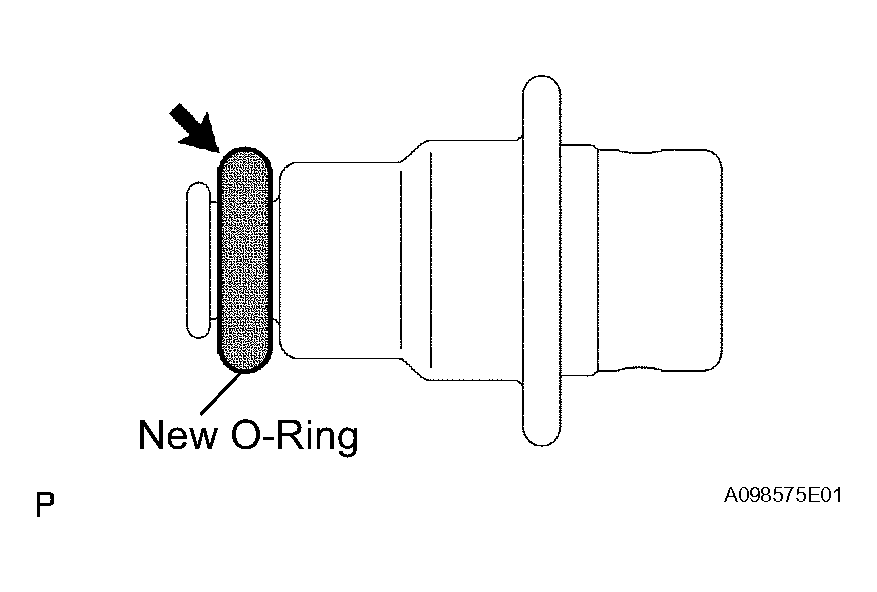

1. Apply a light coat of gasoline or spindle oil to a new O-ring, then install it onto the fuel pressure regulator.

  Fig 1: Applying Light Coat Of Gasoline Or Spindle Oil To O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

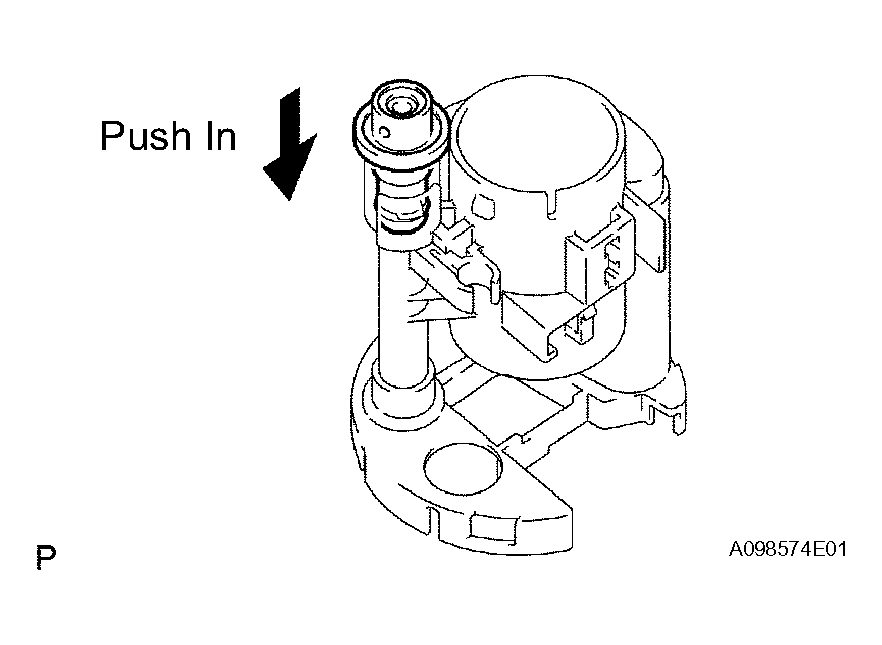

2. Apply a light coat of gasoline or spindle oil to the Oring again, then push the fuel pressure regulator into the fuel tank fuel filter.
  NOTE: Make sure that the O-ring is not cracked or jammed when installing.
INSTALL FUEL PUMP FILTER
1. Install the fuel pump filter onto the fuel pump.

  Fig 2: Pushing Fuel Pressure Regulator Into Fuel Tank Fuel Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

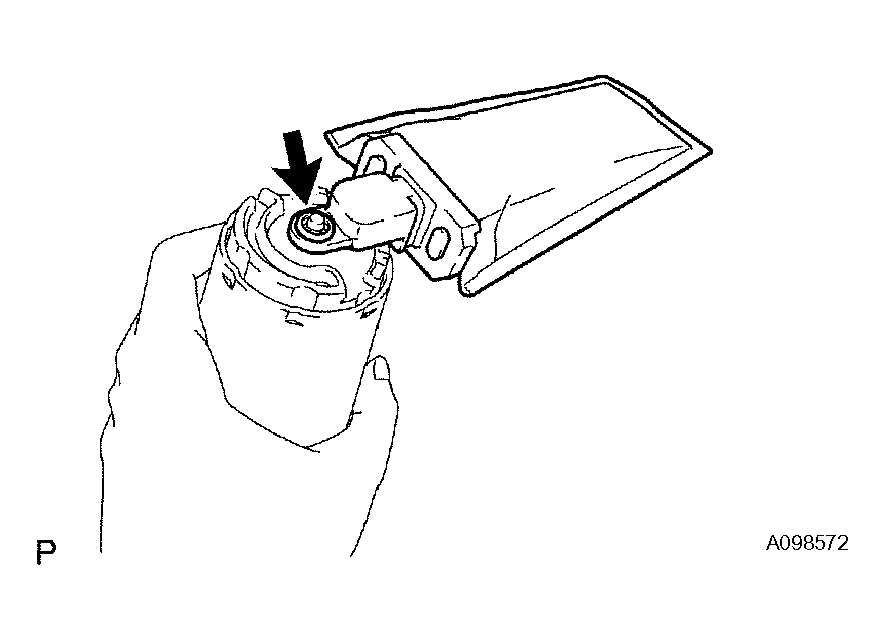

2. Install a new clip.
Fig 3: Installing Fuel Pump Filter Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP

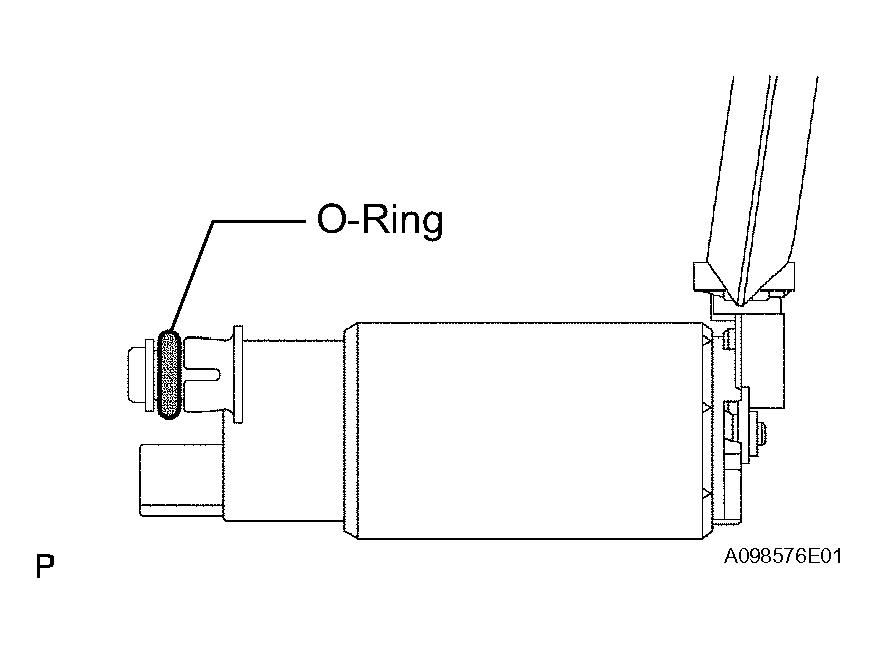

1. Apply a light coat of gasoline or spindle oil to the Oring.

  Fig 4: Applying Light Coat Of Gasoline Or Spindle Oil To Oring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

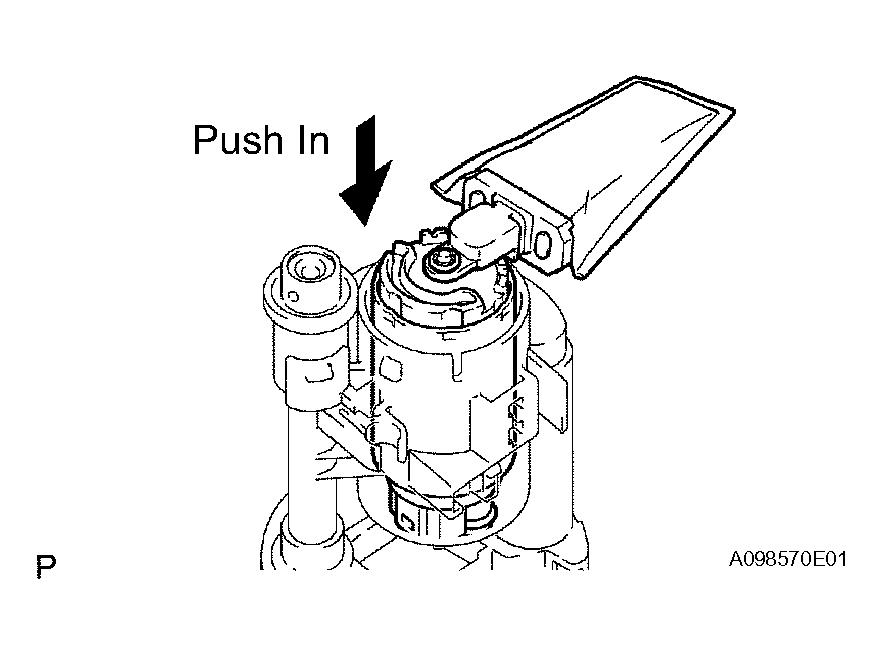

2. Push the fuel pump into the fuel tank fuel filter.
  NOTE: Make sure that the O-ring is not cracked or jammed when installing.

  Fig 5: Pushing Fuel Pump Into Fuel Tank Fuel Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP CUSHION RUBBER

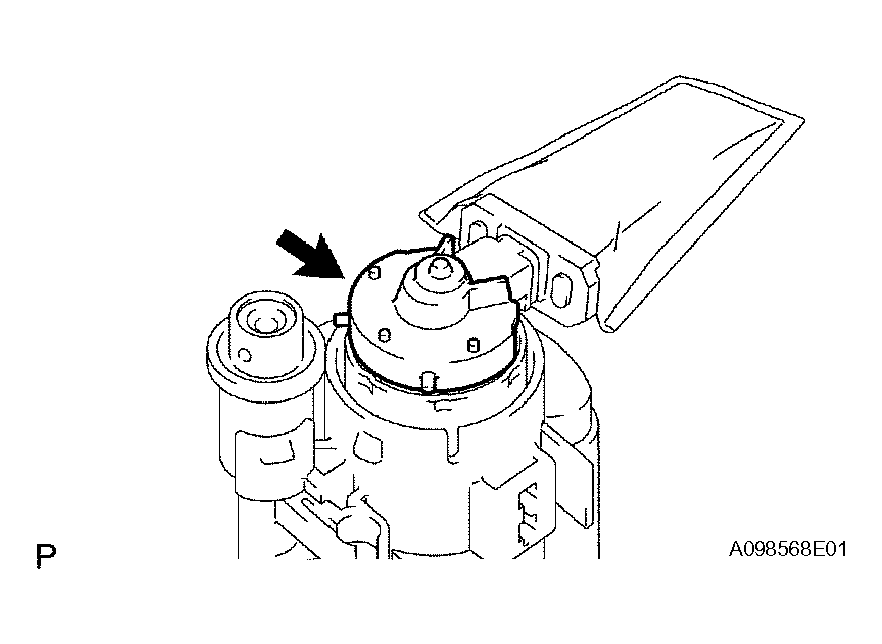

1. Install the fuel pump cushion rubber onto the fuel pump.
Fig 6: Installing Fuel Pump Cushion Rubber Onto Fuel Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 FUEL SUCTION SUPPORT

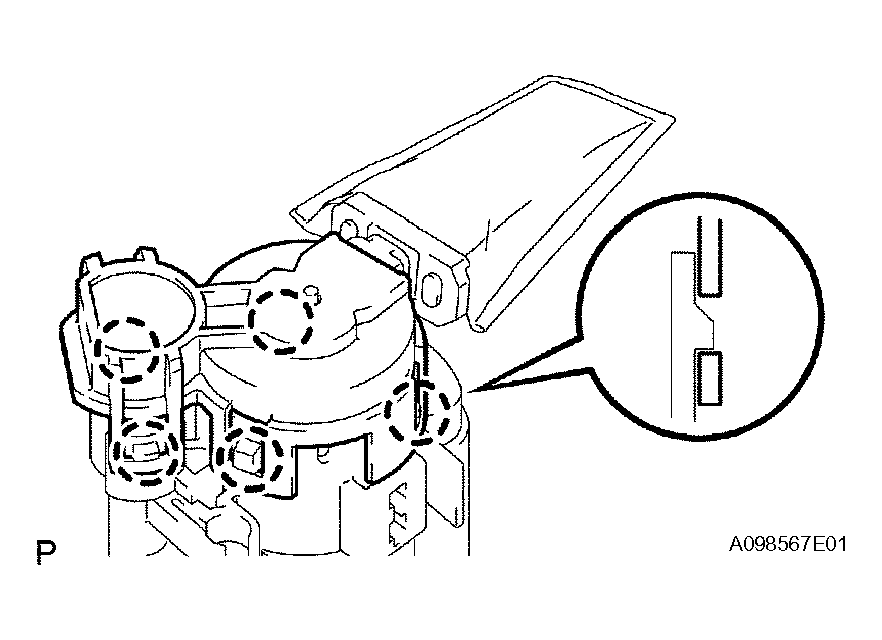

1. Align the claw positions, then install the fuel suction support onto the fuel filter.
Fig 7: Aligning Claw Positions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL PUMP HARNESS

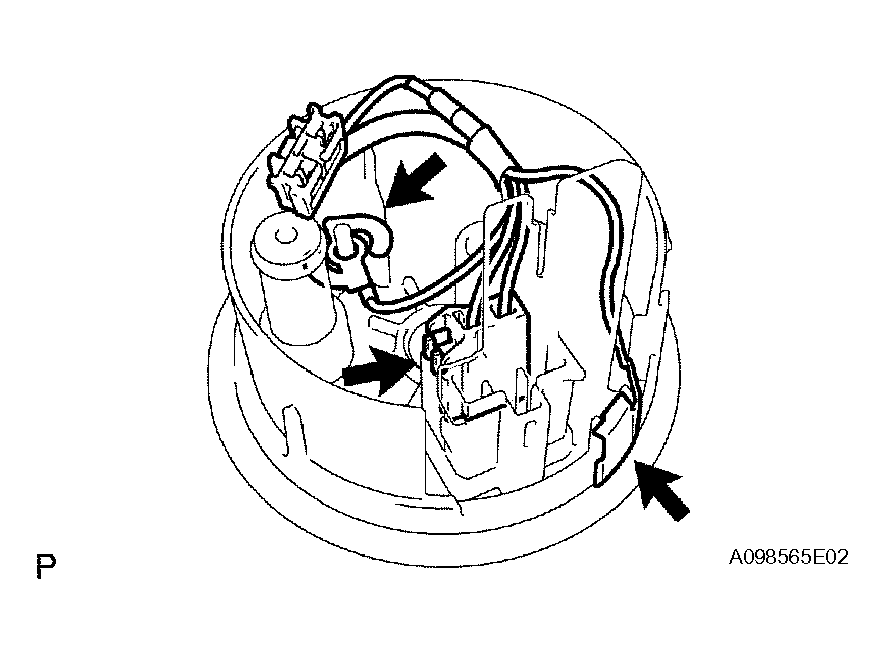

1. Connect the pump harness connector.
2. Install the 2 pump harness terminals.
Fig 8: Installing Pump Harness Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY

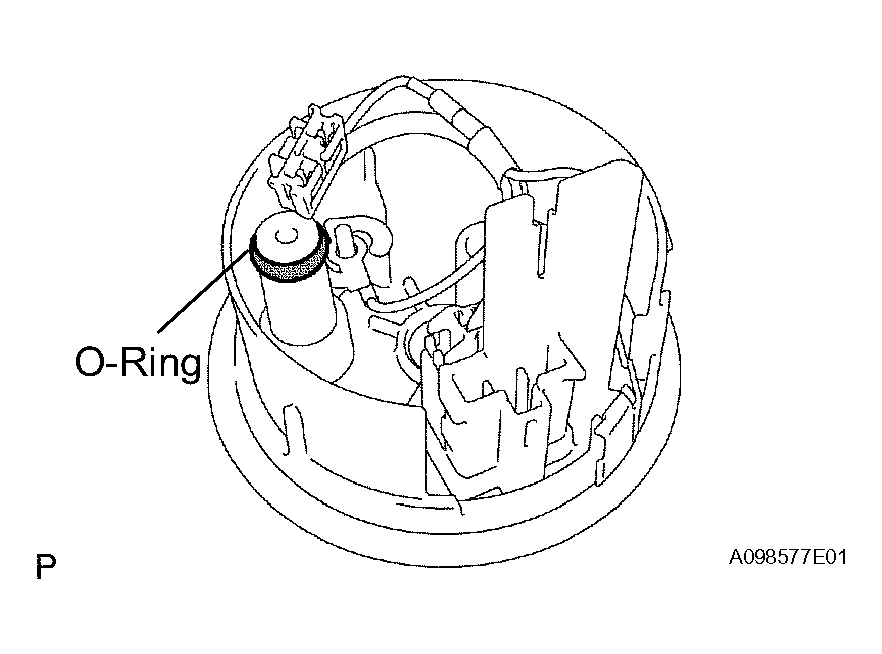

1. Apply a light coat of gasoline or spindle oil to the Oring of the fuel suction plate.

  Fig 9: Applying Light Coat Of Gasoline Or Spindle Oil To Oring Of Fuel Suction Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

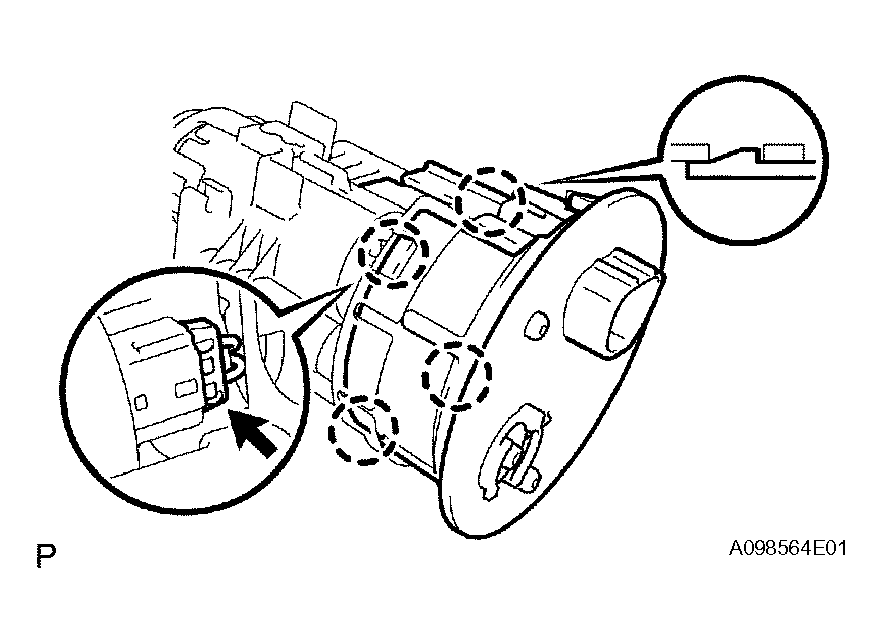

2. Align the claw positions, then install the fuel suction plate into the fuel filter.
  NOTE: Make sure that the O-ring is not cracked or jammed when installing.
3. Connect the fuel pump harness connector.
Fig 10: Connecting Fuel Pump Harness Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SENDER GAUGE ASSEMBLY

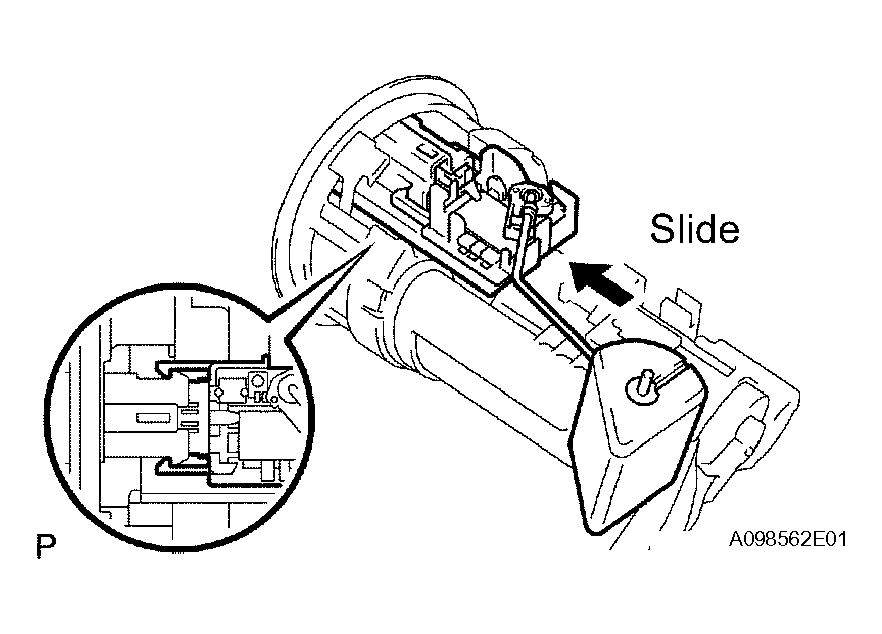

1. Slide the fuel sender gauge to fit the claws.
Fig 11: Sliding Fuel Sender Gauge To Fit Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
