Fuel Pump: Disassembly

REMOVE FUEL SENDER GAUGE ASSEMBLY
1. Separate the 2 claws fittings, then slide the fuel sender gauge to remove it from the fuel filter.

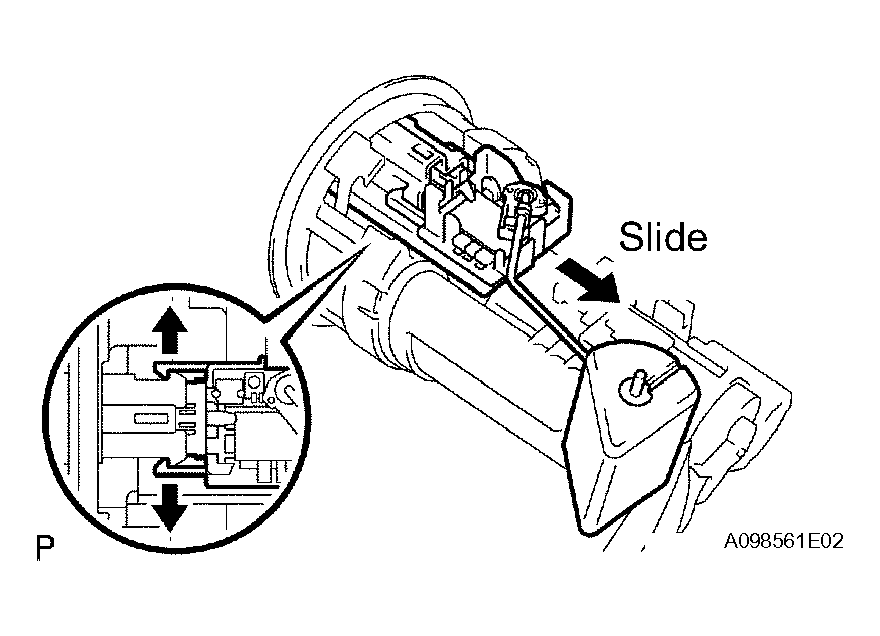

Fig 1: Sliding Fuel Sender Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY
1. Disconnect the fuel pump harness connector.
2. Using a screwdriver with its tip wrapped in tape, separate the 4 claws fittings. Then remove the fuel suction plate.
  NOTE: Do not damage the fuel suction plate or fuel tank fuel filter.

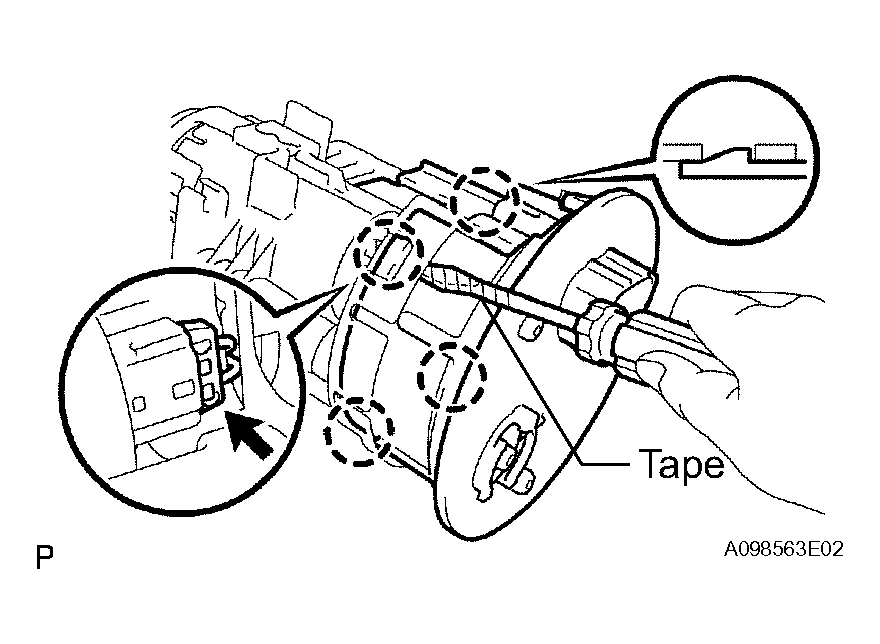

Fig 2: Separating Claws Fittings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP HARNESS
1. Remove the 2 pump harness terminals.
2. Disconnect the pump harness connector, then remove the fuel pump harness.

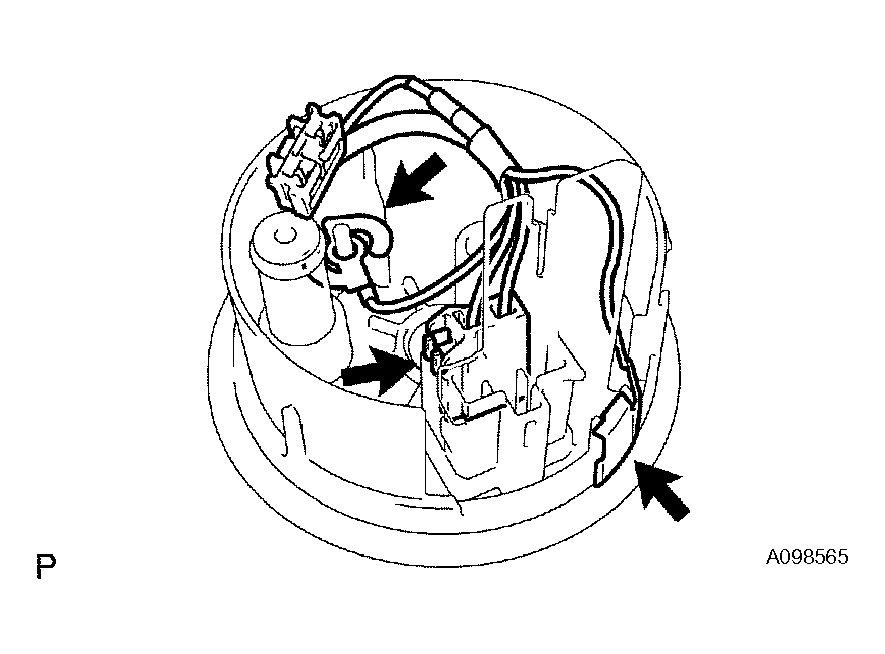

Fig 3: Removing Pump Harness Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 FUEL SUCTION SUPPORT
1. Using a screwdriver with its tip wrapped in tape, separate the 5 claws fittings. Then remove the fuel suction support.
  NOTE: Do not damage the fuel suction support or fuel tank fuel filter.

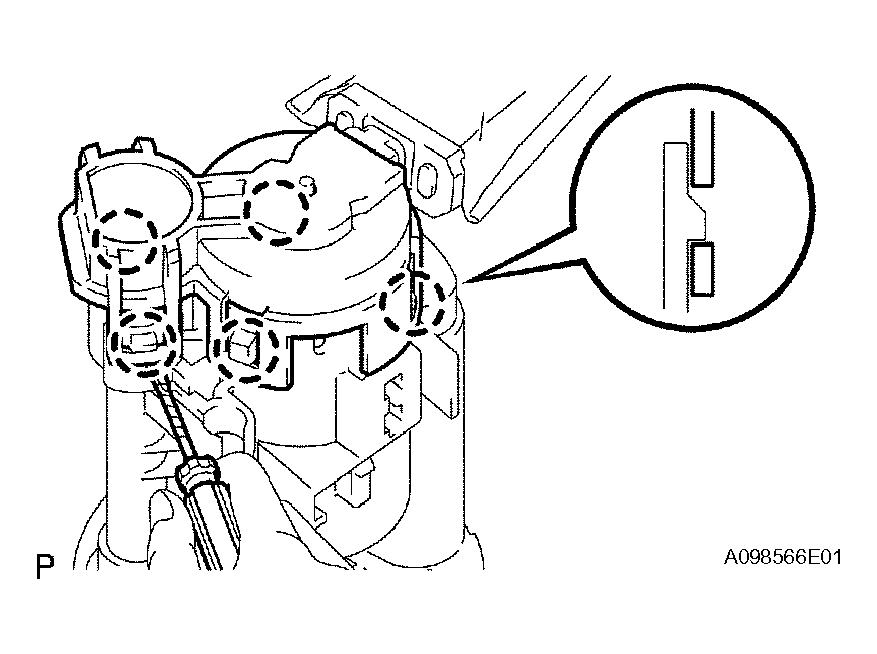

Fig 4: Separating Claws Fittings Using Screwdriver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP CUSHION RUBBER
1. Remove the fuel pump cushion rubber from the fuel pump.

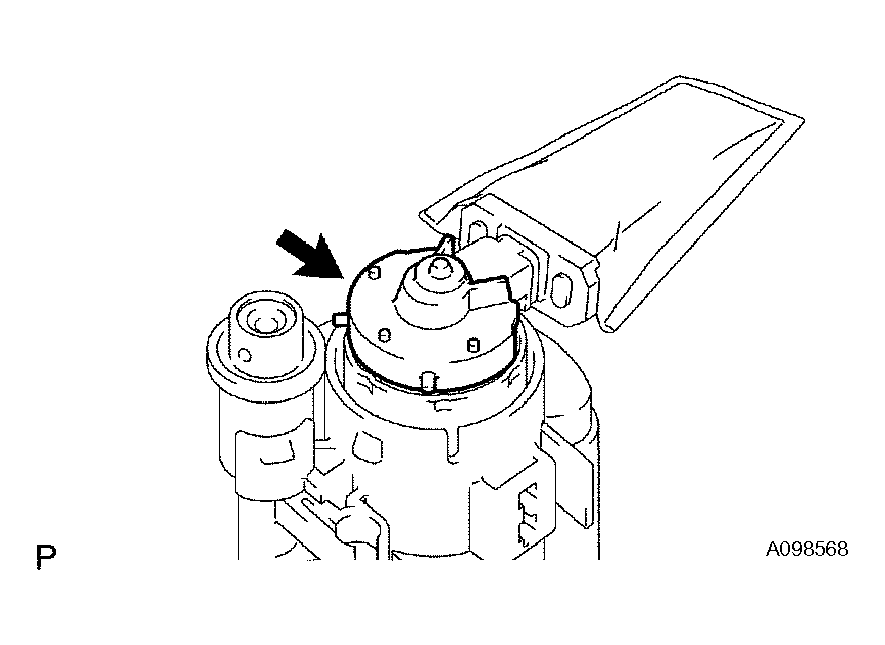

Fig 5: Removing Fuel Pump Cushion Rubber From Fuel Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP
1. Pull the fuel pump out of the fuel filter.

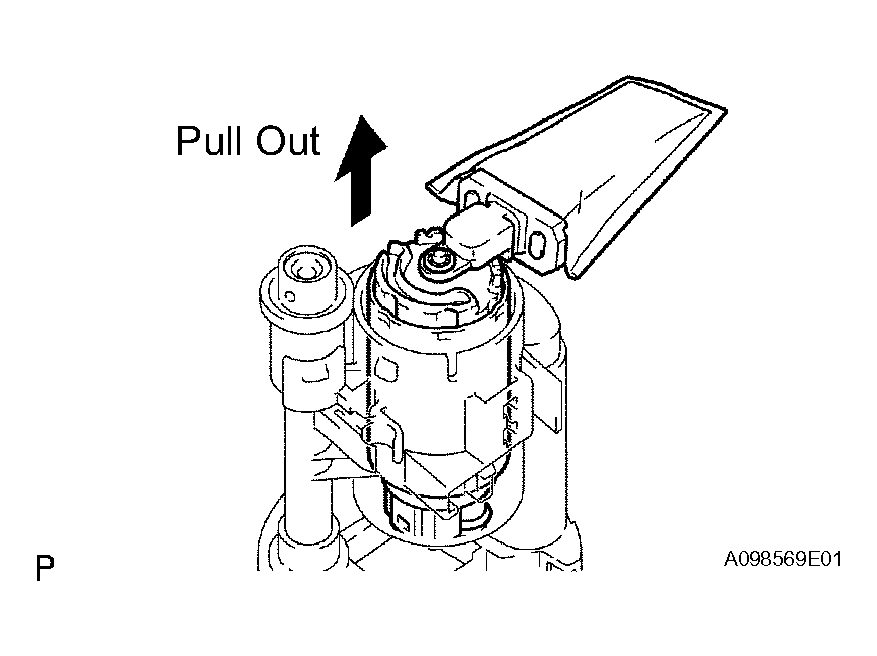

Fig 6: Pulling Fuel Pump Out Of Fuel Filter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP FILTER
1. Using a small screwdriver, pry out the clip.
2. Remove the fuel pump filter from the fuel pump.

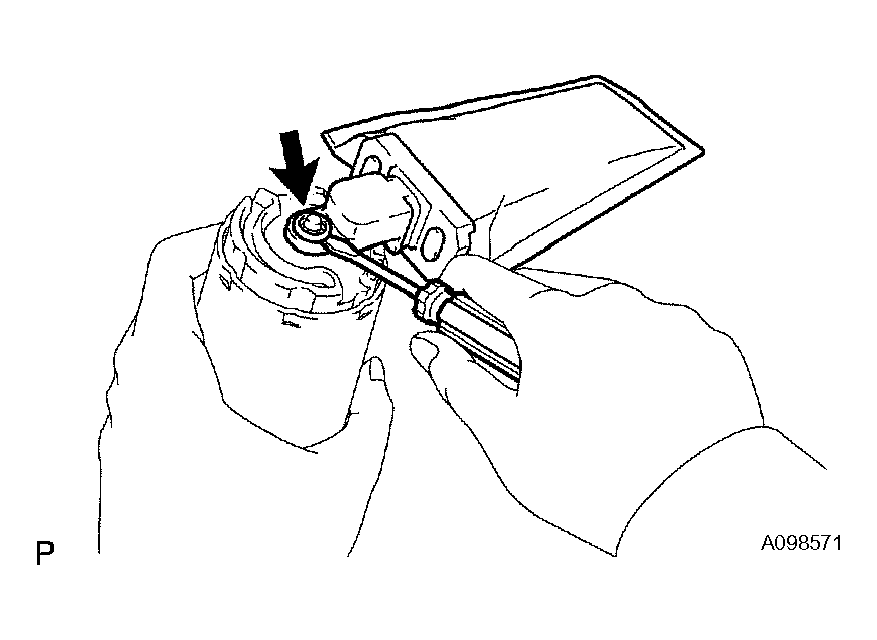

Fig 7: Prying Clip Using Screwdriver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
1. Pull the fuel pressure regulator out of the fuel tank fuel filter.
2. Remove the O-ring from the fuel pressure regulator.

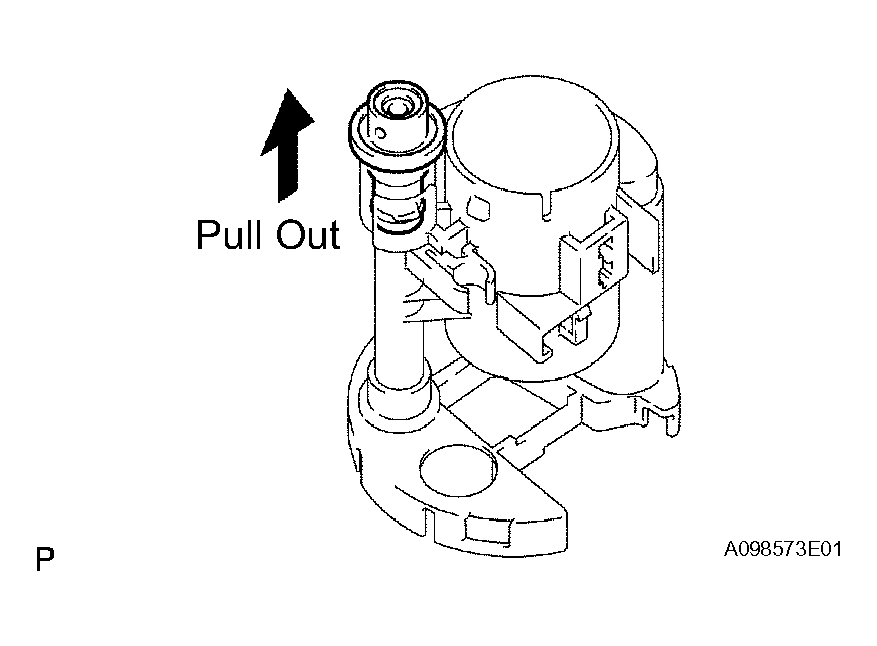

Fig 8: Pulling Fuel Pressure Regulator Out Of Fuel Tank Fuel Filter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
