Fuel Injector: Inspection

Standard resistance: 11.6 to 12.4 Ω at 20°C (68°F)

If the result is not as specified, replace the injector.

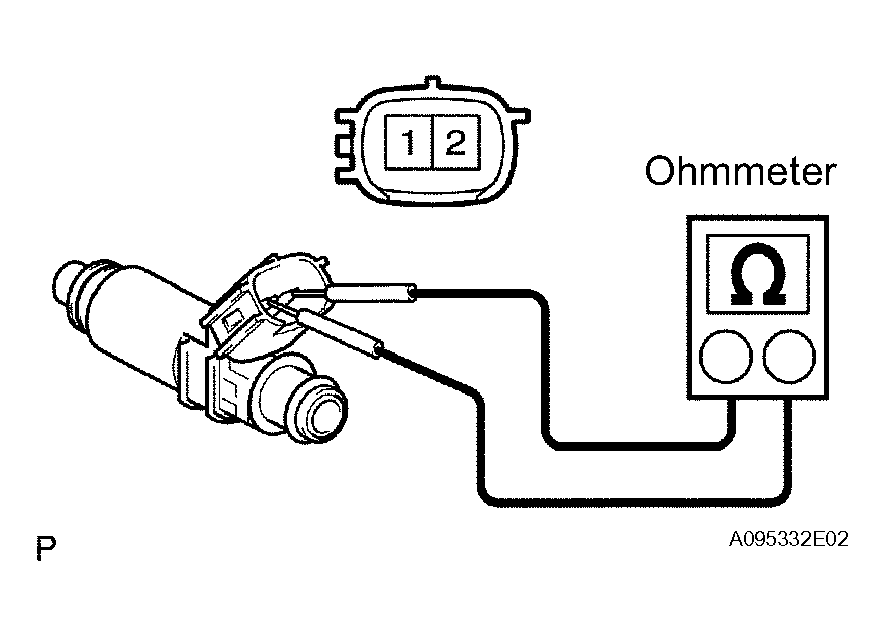

Fig 1: Measuring Resistance Between Injector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the fuel tube connector to SST (hose). Then connect the tube connector to the fuel pipe (vehicle side).

   SST 09268-41048 (09268-41500, 90467-13001, 95336-08070)

2. Install the O-ring to the fuel injector.

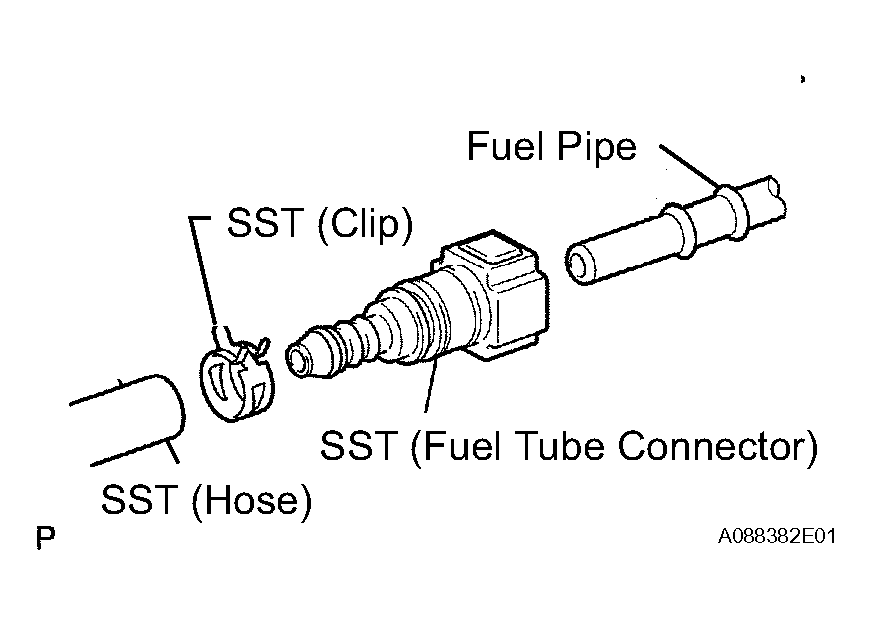

   Fig 2: Installing Fuel Tube Connector To SST (Hose)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

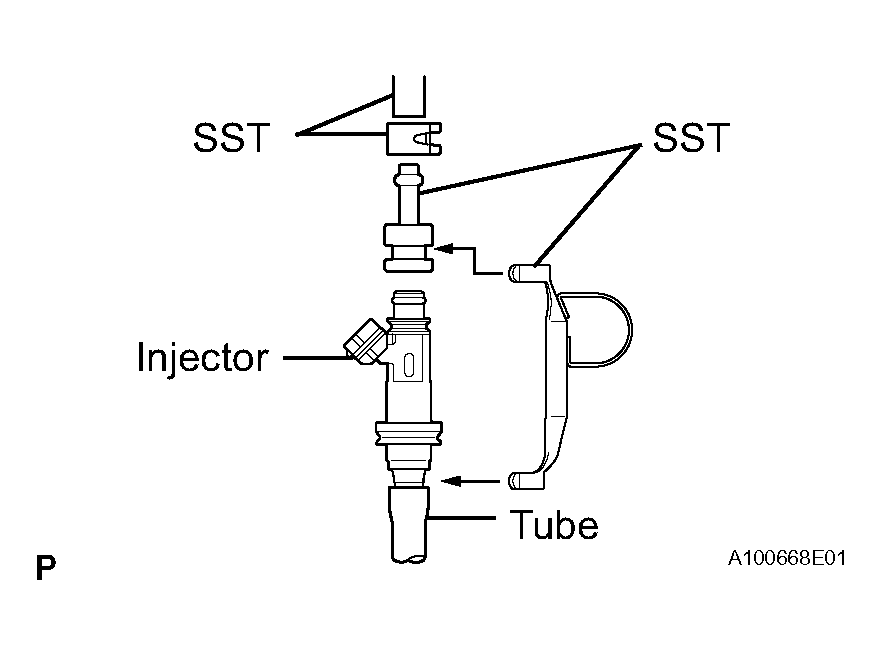

3. Connect SST (adapter and hose) to the injector, and hold the injector and union with SST (clamp).

   SST 09268-41048 (90467-13001, 09268-41110, 09268-41300)

4. Put the injector into the graduated cylinder.
   CAUTION: Install a suitable vinyl tube onto the injector to contain gasoline spray.
5. Operate the fuel pump.
   Fig 3: Connecting SST To Injector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect SST (wire) to the injector and the battery for 15 seconds, and measure the injection volume with the graduated cylinder. Test each injector 2 or 3 times.

   SST 09842-30080

   Standard injection volume: 76 to 92cm ³  (4.6 to 5.6 cu in.) per 15 seconds

   Standard difference between each injector: 16 cm ³  (1.0 cu in.) or less

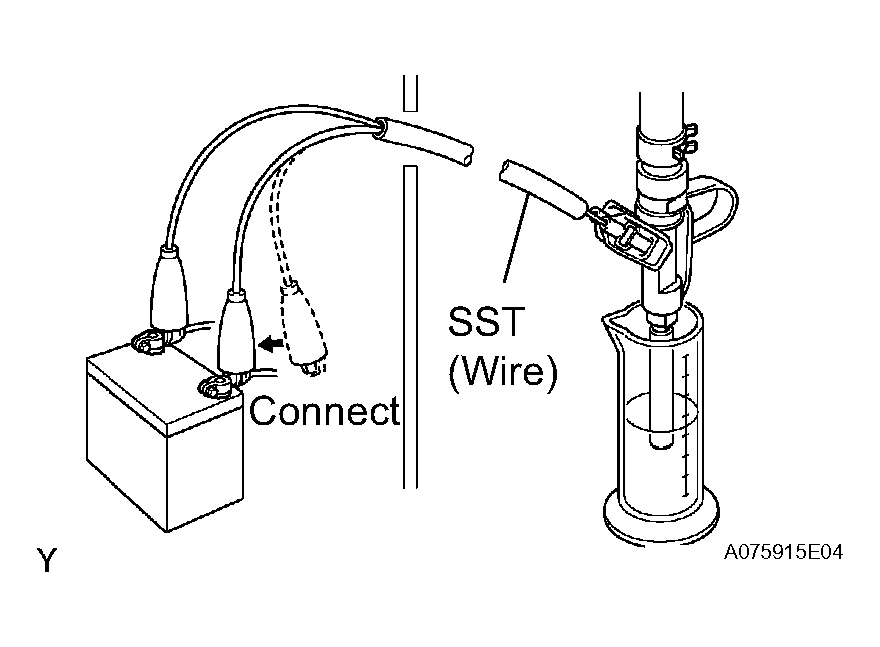

   Fig 4: Connecting SST (Wire) To Injector And Battery

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

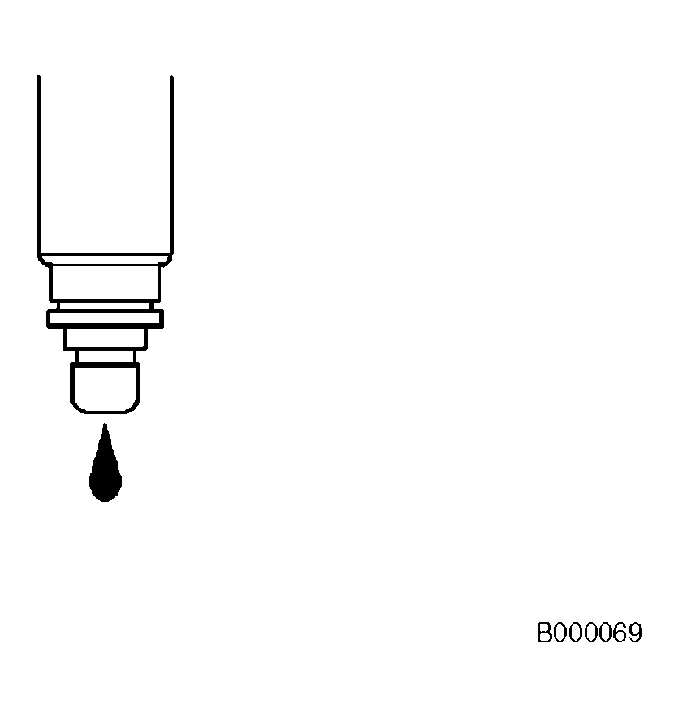

1. Disconnect the SST (wire) tester probes from the battery and check the fuel leakage from the injector.

   Standard fuel drop: 1 drop or less per 12 minutes

2. Turn the ignition switch OFF.
3. Disconnect the cable from the negative (-) battery terminal.
4. Remove SST.

   SST 09268-41048 (09268-41500, 90467-13001, 95336-08070, 09268-41110, 09268-41300), 09842-30080

5. Disconnect the intelligent tester from the DLC3.
6. Reconnect the fuel inlet hose (rear fuel pipe) to the fuel main tube.
