Scion
>>
2006
>>
tC Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Radiator Fan and Condenser Fan
>>
Notes
Radiator Fan and Condenser Fan: Notes

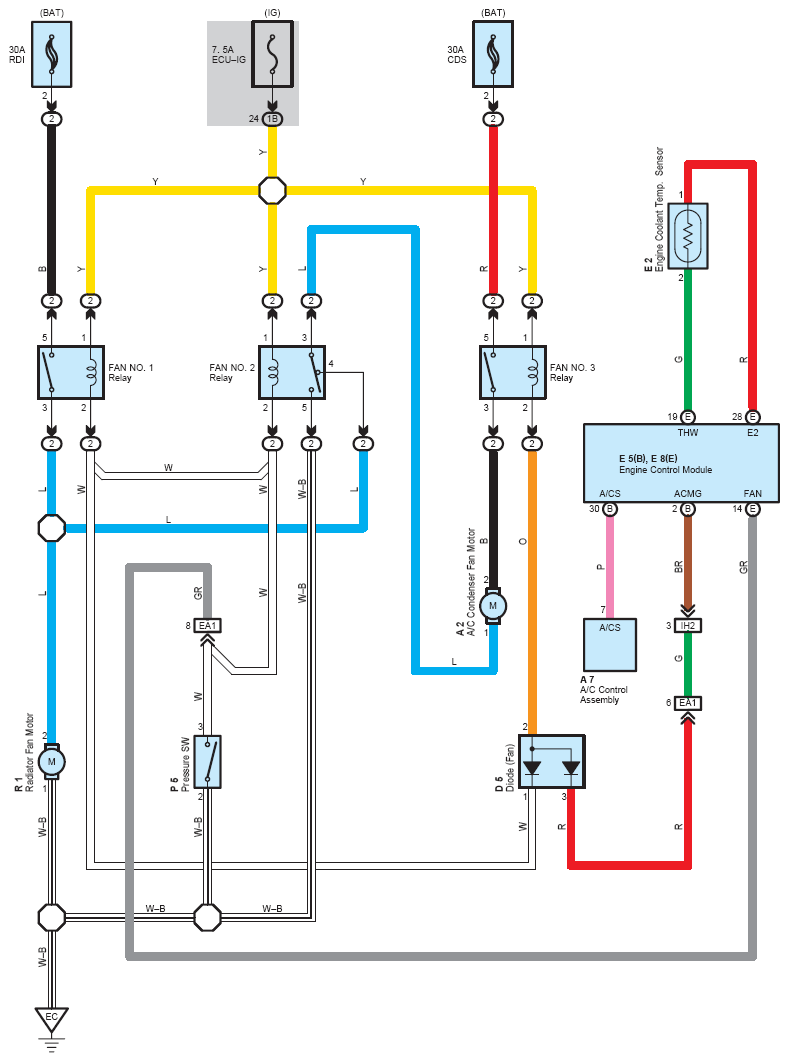

Fig 1: Radiator And Condenser Fan System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
