ABS and Tire Pressure Warning System: Notes

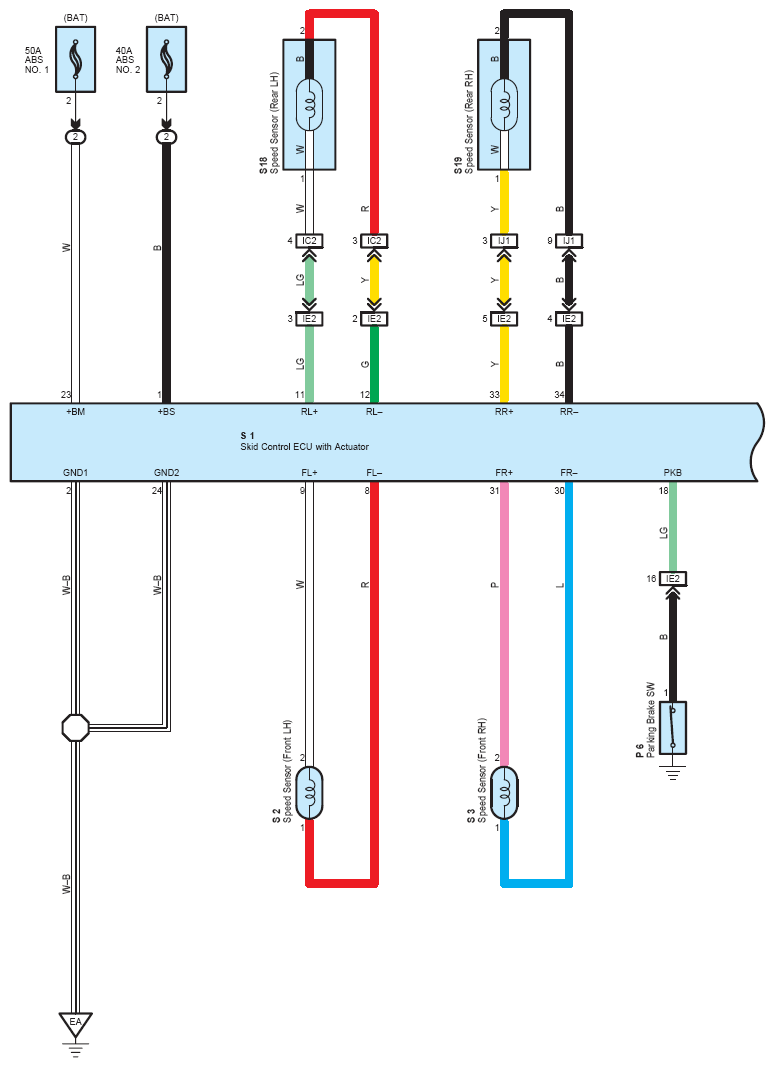

Fig 1: ABS And Tire Pressure Warning System Wiring Diagram (1 Of 4)
G08758351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

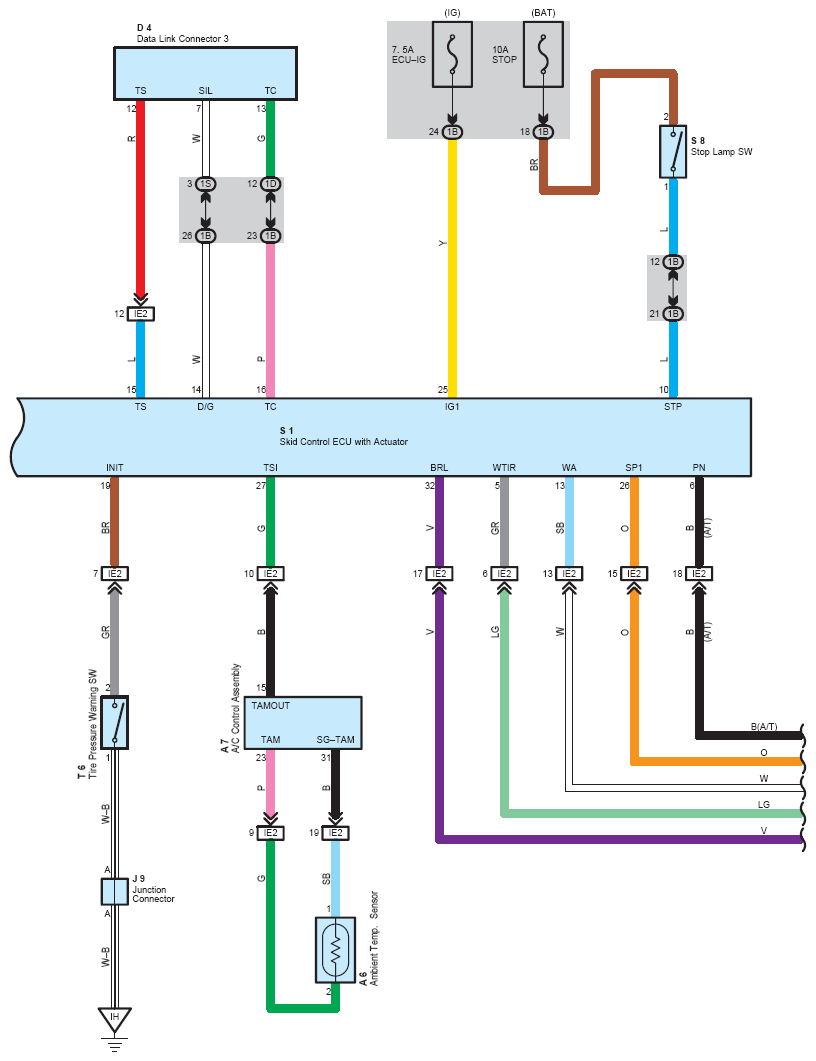

Fig 2: ABS And Tire Pressure Warning System Wiring Diagram (2 Of 4)
G08758352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

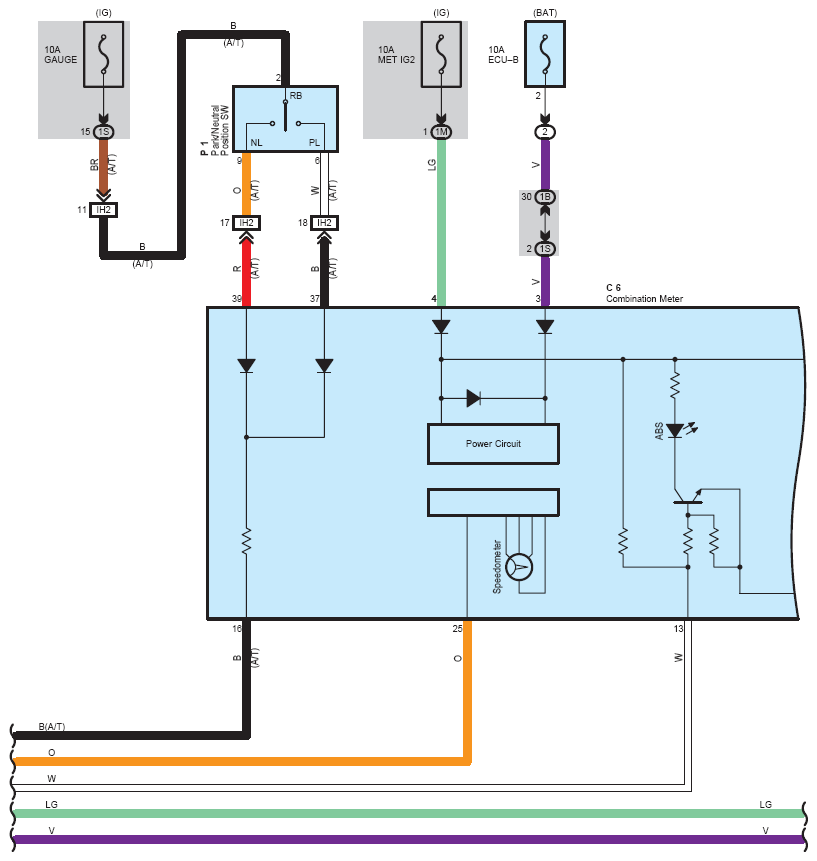

Fig 3: ABS And Tire Pressure Warning System Wiring Diagram (3 Of 4)
G08758353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

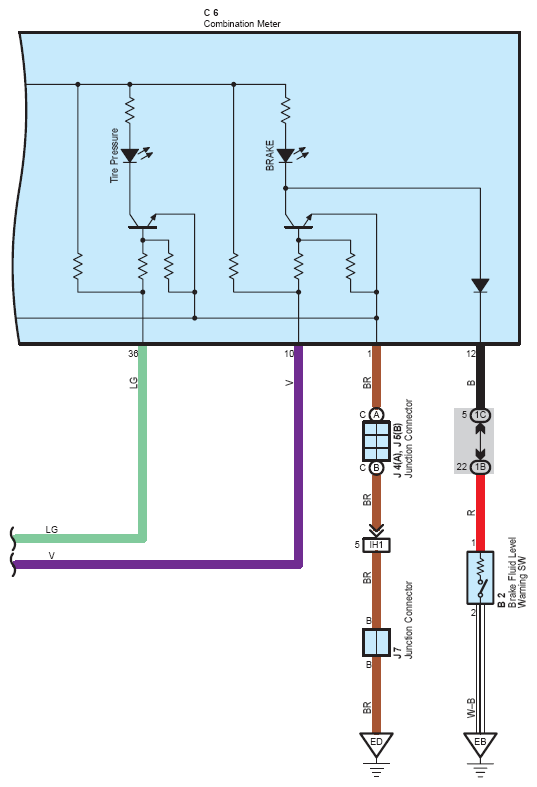

Fig 4: ABS And Tire Pressure Warning System Wiring Diagram (4 Of 4)
G08758354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
