OEM System Circuits: Taillight: Notes

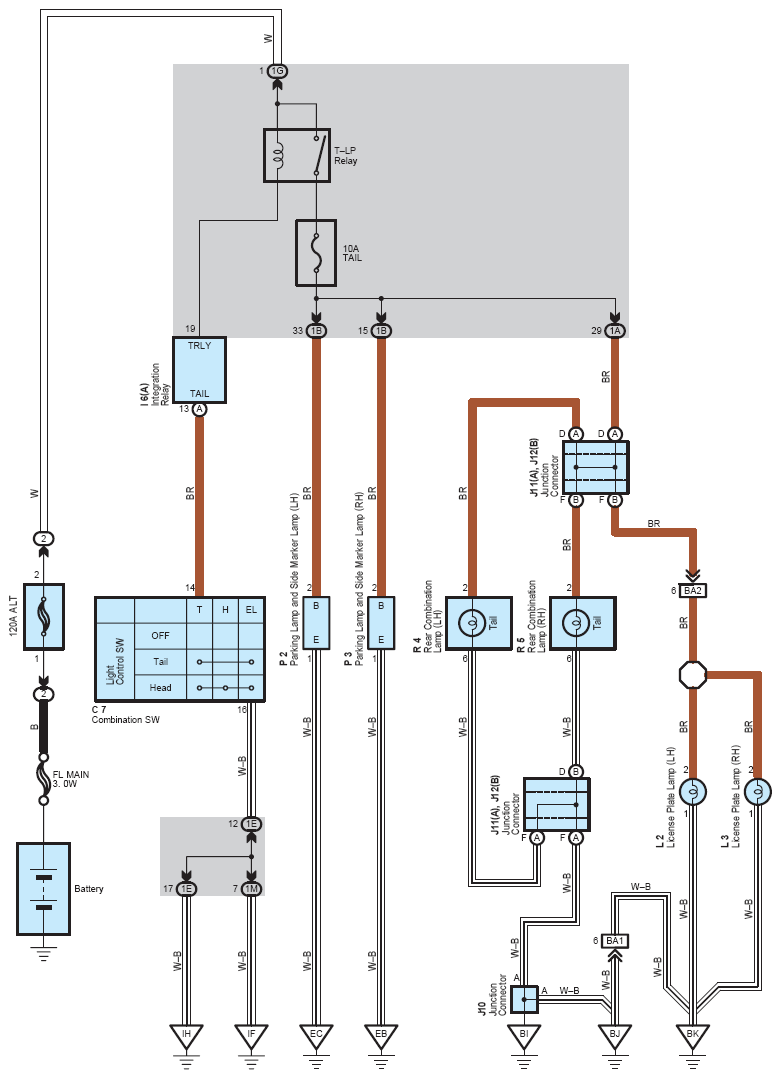

Fig 1: Taillight Wiring Diagram

G08758326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
