Engine Immobilizer System: Notes

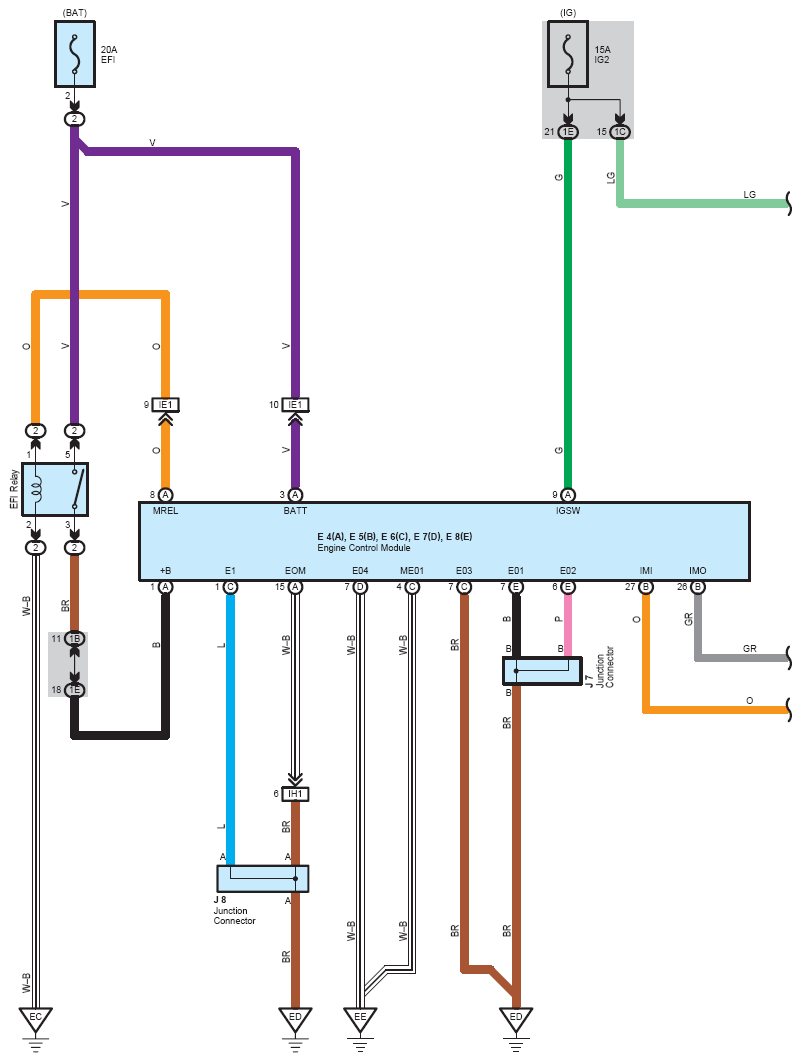

Fig 1: Engine Immobilizer System Wiring Diagram (1 Of 2)
G08758317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

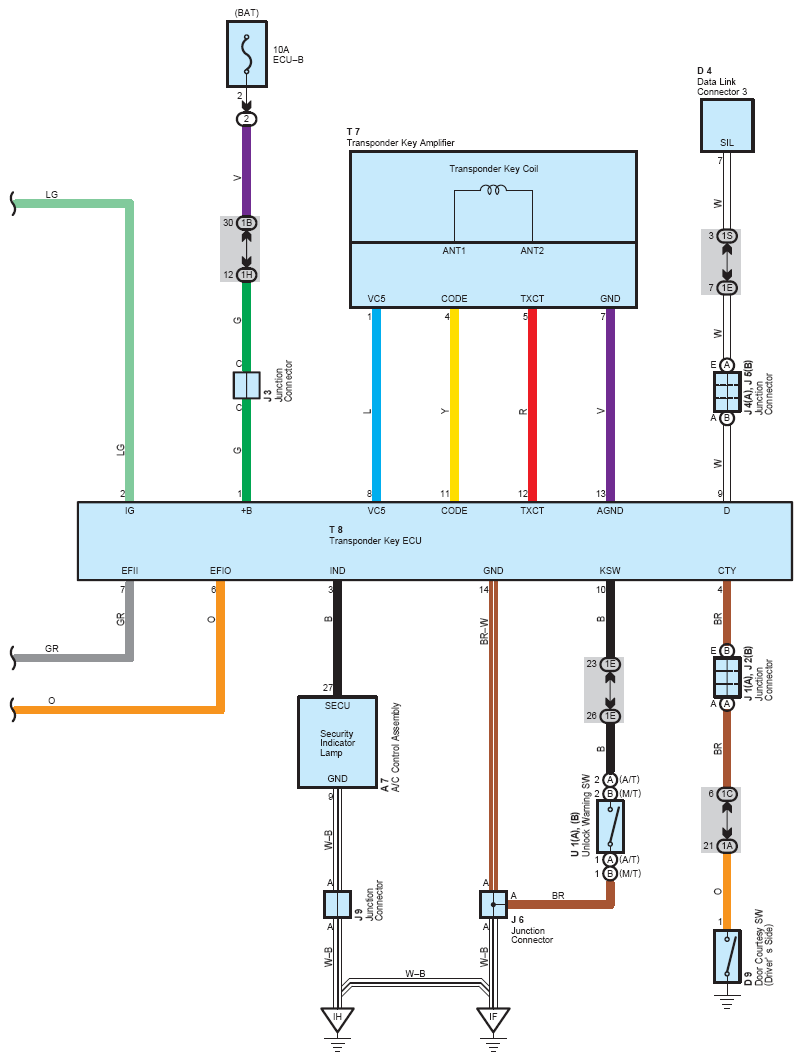

Fig 2: Engine Immobilizer System Wiring Diagram (2 Of 2)
G08758318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
