Valve Body Assembly: Installation

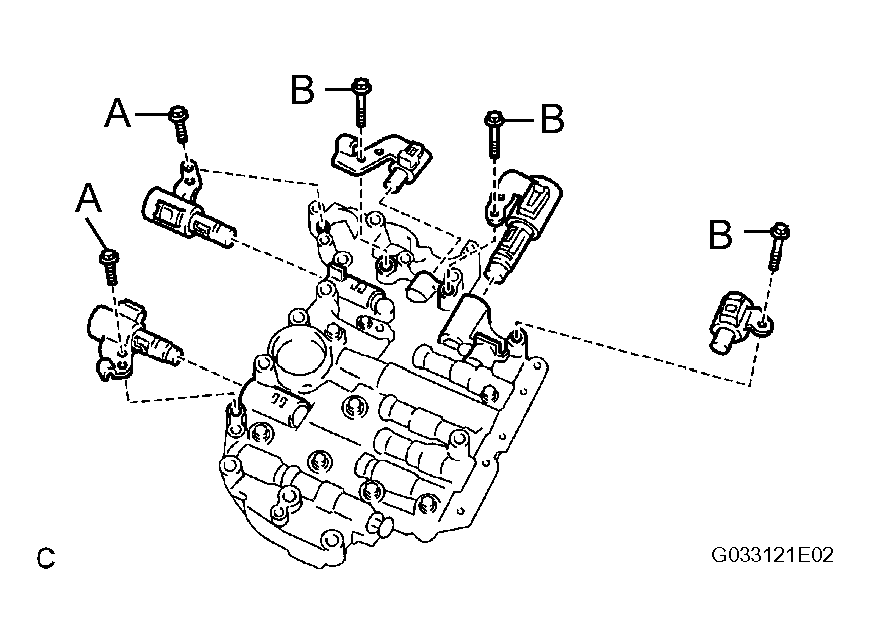

1. Install the 5 solenoid valves with the 5 bolts.

   Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf) for bolt A

   11 N*m (112 kgf*cm, 8 ft.*lbf) for bolt B

   Bolt length:

   12 mm (0.47 in.) for bolt A

   45 mm (1.77 in.) for bolt B

   Fig 1: Installing 5 Solenoid Valves With 5 Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

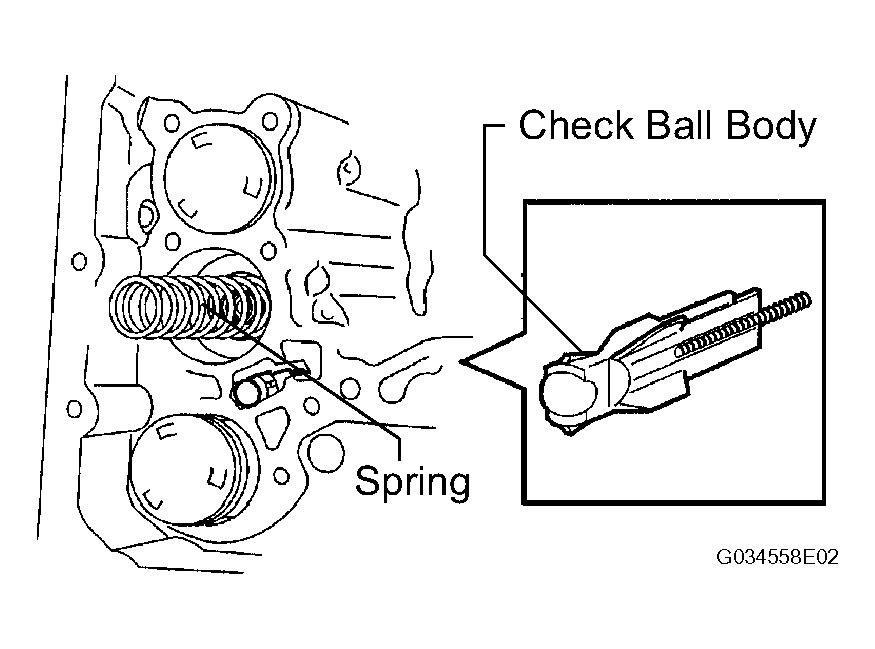

2. Install the spring and check ball body.
   Fig 2: Installing Spring And Check Ball Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Align the groove of the manual valve with the pin of the lever.

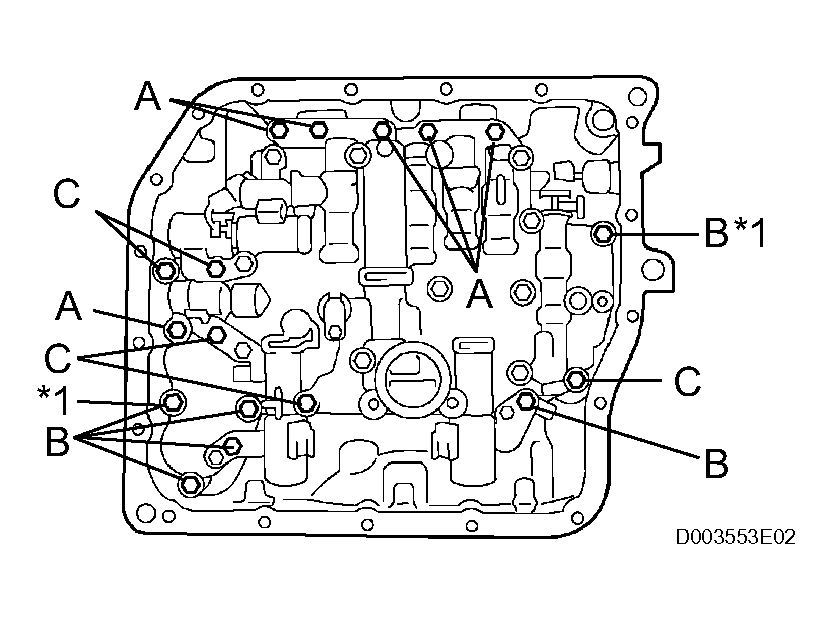

4. Install the valve body with the 17 bolts.

   Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   NOTE:

   • Push the valve body against the accumulator Piston spring and the check ball body to install it.
   • First, temporarily tighten the bolts marked with a *1 in the illustration because they are positioning bolts.

   for bolt length:

   25 mm (0.984 in.) for bolt A

   41 mm (1.614 in.) for bolt B

   45 mm (1.771 in.) for bolt C

   Fig 3: Aligning Groove Of Manual Valve With Pin Of Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat a new O-ring with ATF.
2. Install the O-ring to the oil strainer.
   Fig 4: Installing O-Ring To Oil Strainer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

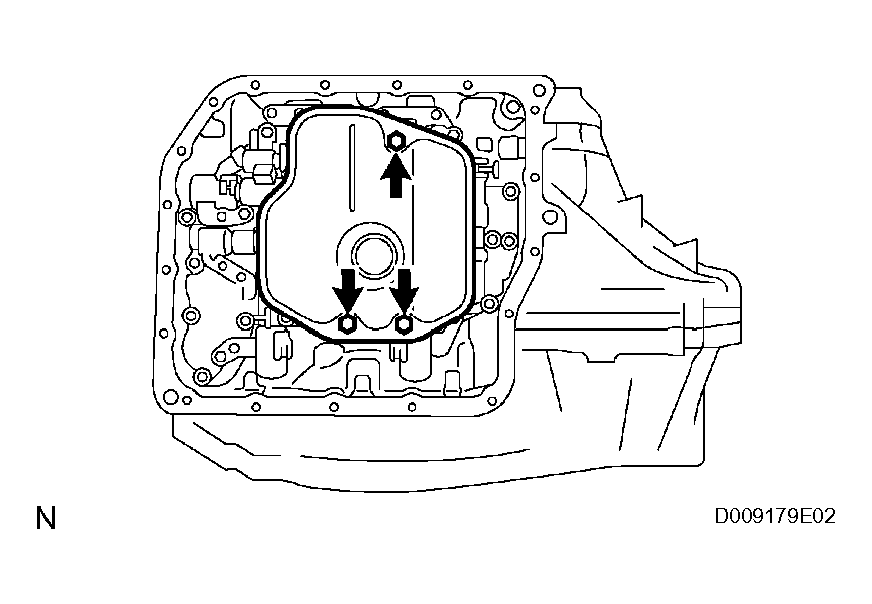

3. Install the oil strainer with the 3 bolts.

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

Fig 5: Installing Oil Strainer With 3 Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

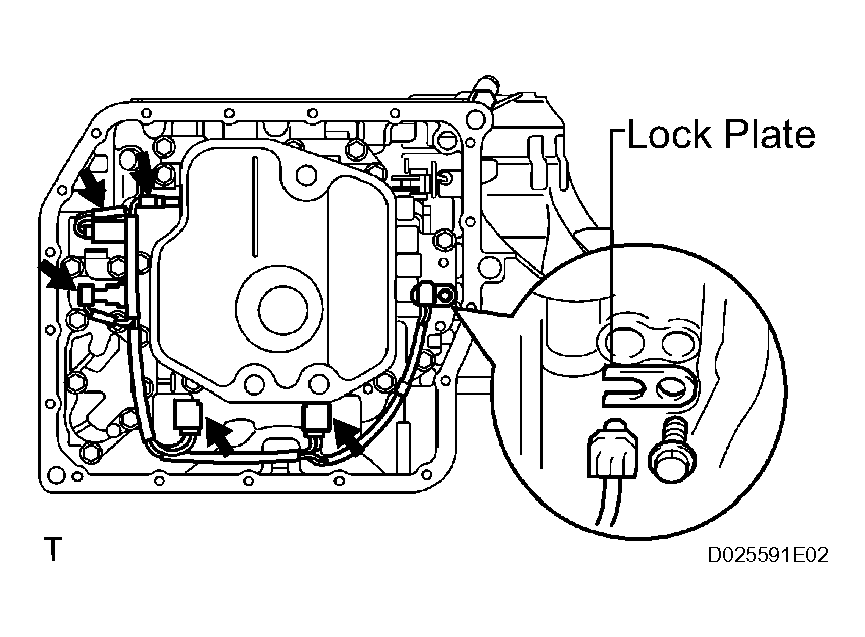

1. Coat a new O-ring with ATF and install it to the ATF temperature sensor.
2. Install the ATF temperature sensor with the lock plate and bolt.

   Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

3. Connect the 5 solenoid valve connectors.

Fig 6: Installing Transmission Wire

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

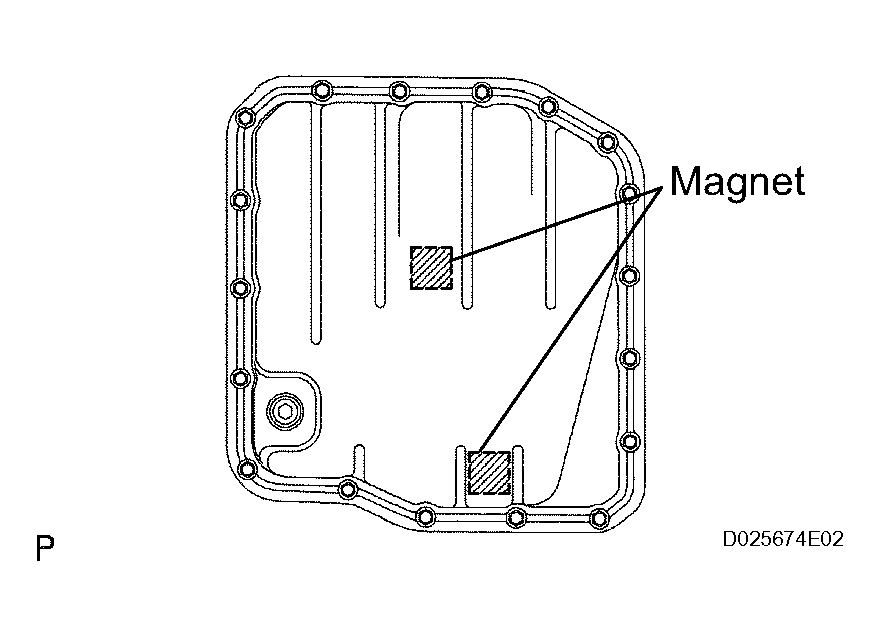

1. Install the 2 magnets in the oil pan.
2. Apply seal packing or equivalent to the 18 bolts.

   Seal packing:

   THREE BOND 1344 or equivalent

   NOTE: Apply seal packing or equivalent to the bolts and tighten them within 10 minutes after application because the bolts should be seal bolts.
3. Install a new gasket and the oil pan to the transaxle case with the 18 bolts.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

   Fig 7: Installing 2 Magnets In Oil Pan

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fluid type:

T-IV

Standard capacity:

3.5 liters (3.7 US qts, 3.1 lmp. qts)

Fig 8: Identifying Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Inspect the fluid (see AUTOMATIC TRANSAXLE FLUID  ).

1. Perform initialization (see INITIALIZATION ).
