Valve Body Assembly: Components

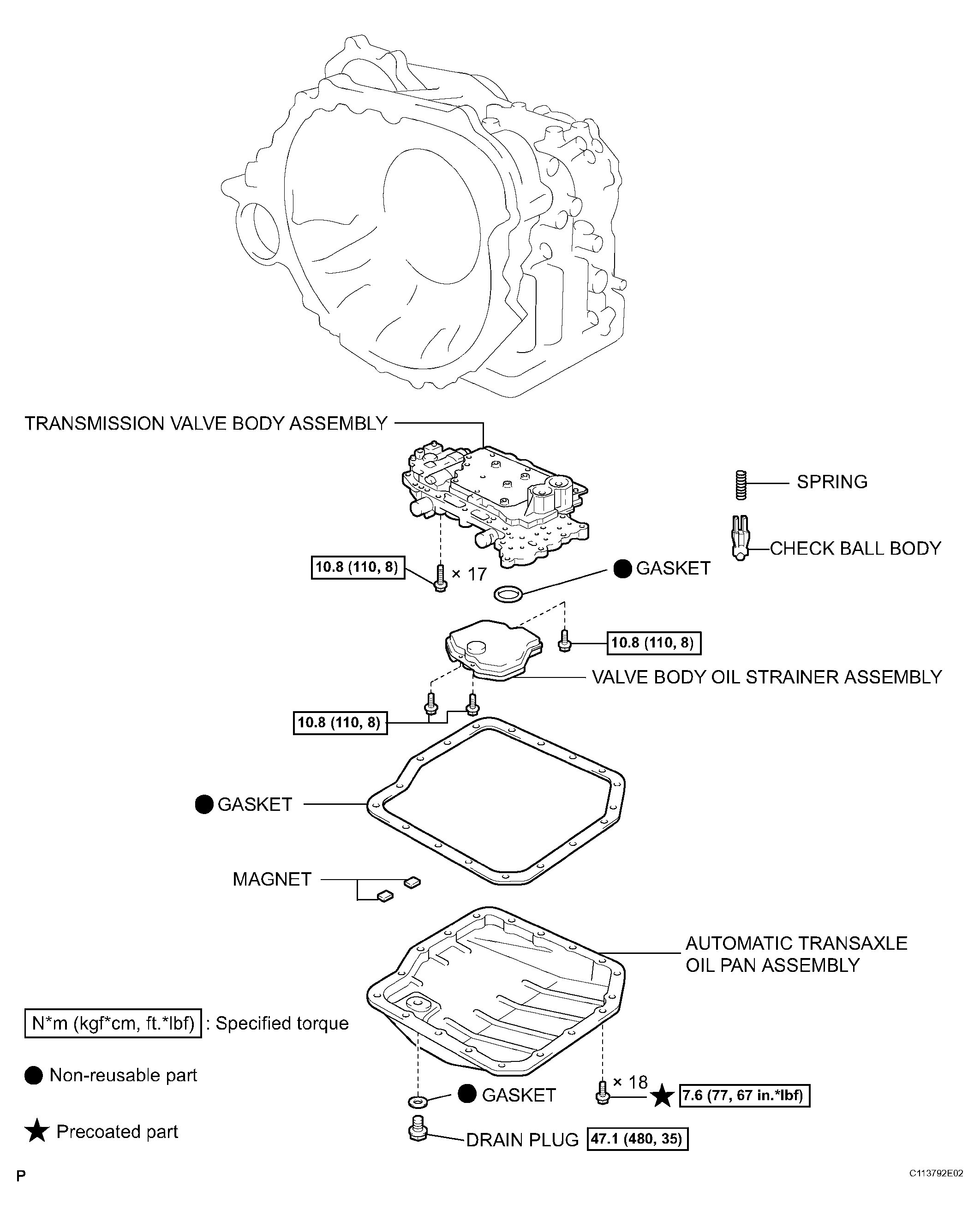

Fig 1: Identifying Valve Body Assembly Components

G04222266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
