Transmission Wire: Components

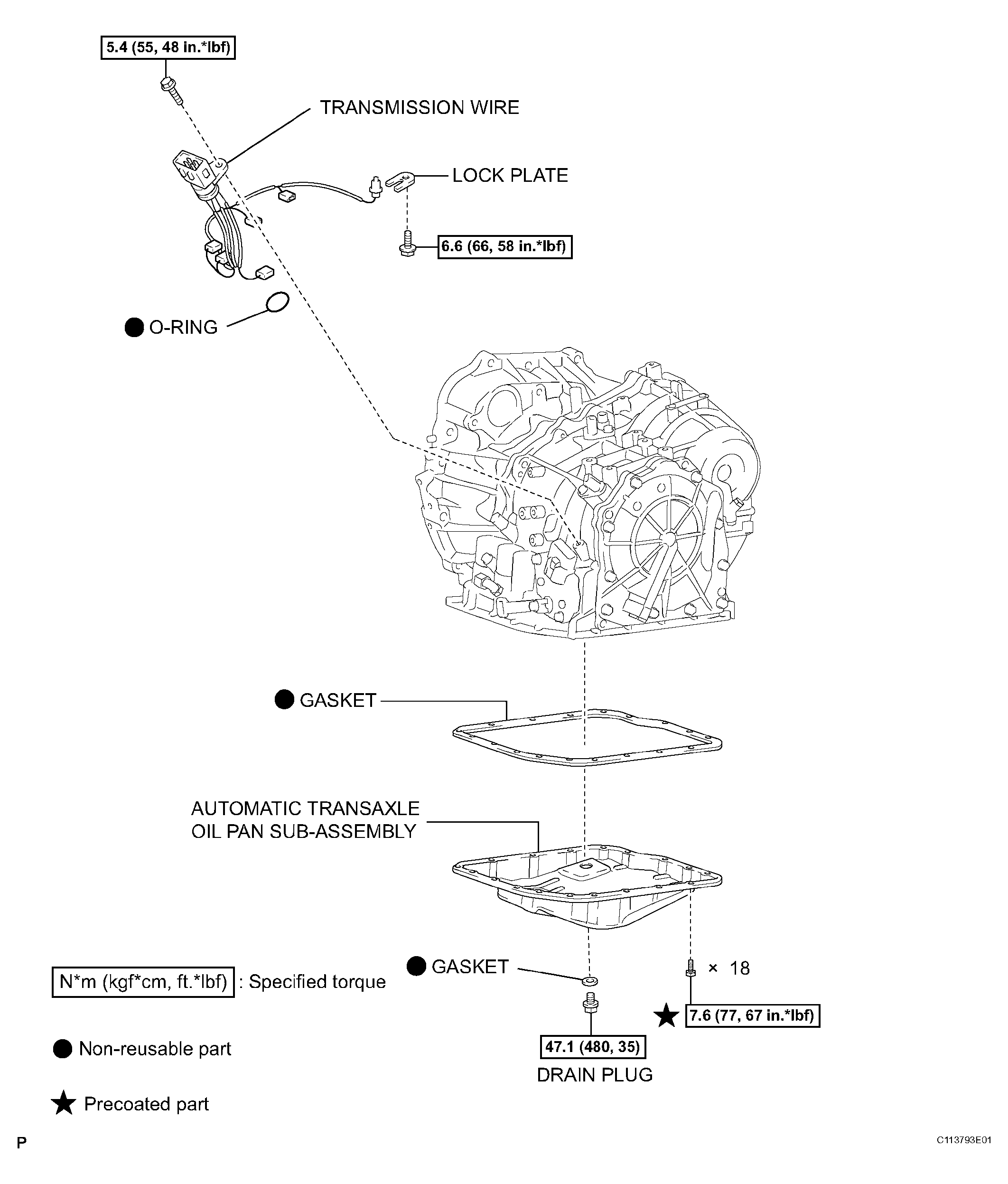

Fig 1: Identifying Transmission Wire Components
G04222255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
