Floor Shift Assembly: Reassembly

INSTALL SHIFT LOCK CONTROL ECU SUBASSEMBLY

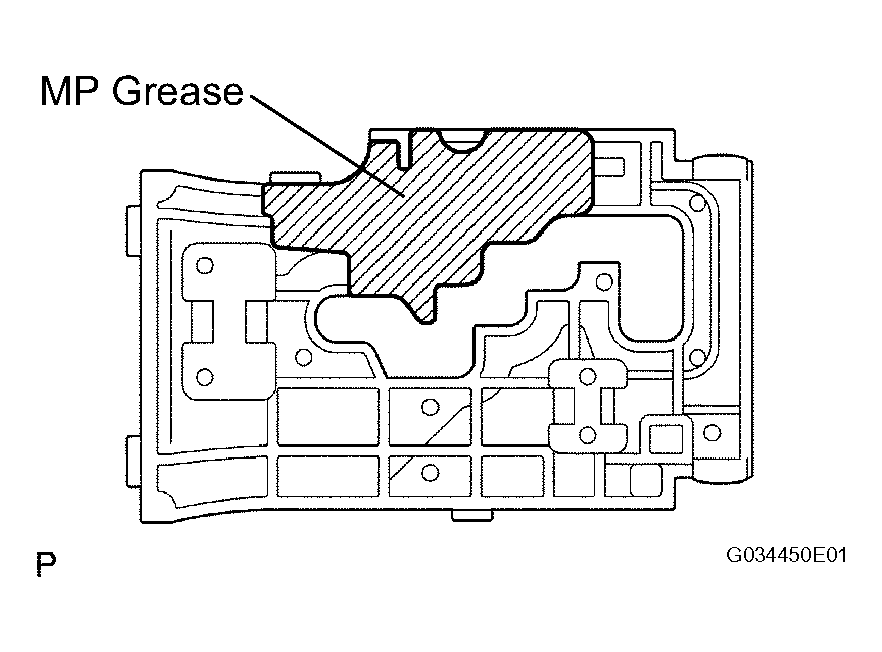

1. Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.

  Fig 1: Applying MP Grease To Hatched Area Of Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

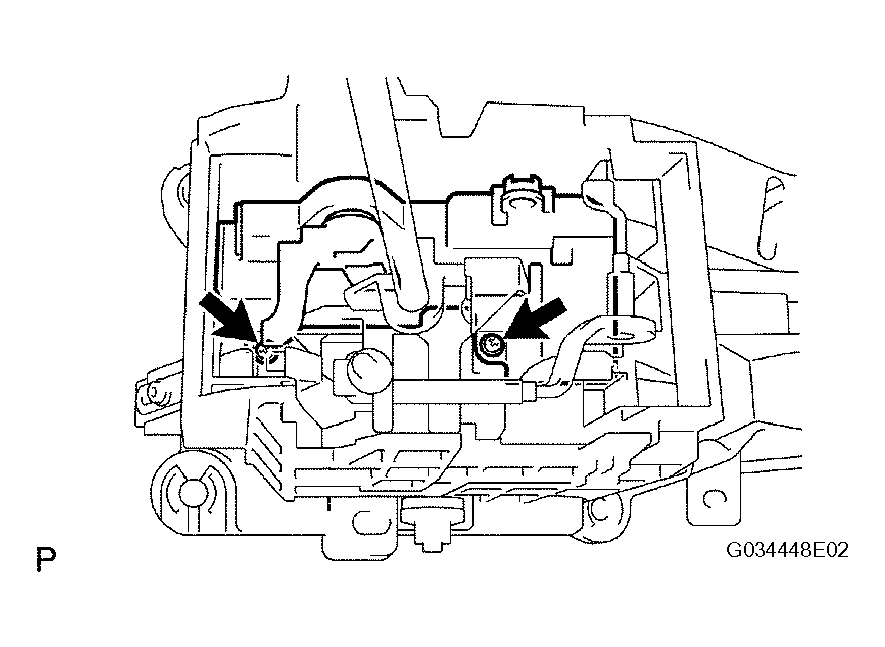

2. Install the ECU with the 2 screws.

  Fig 2: Installing ECU With 2 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

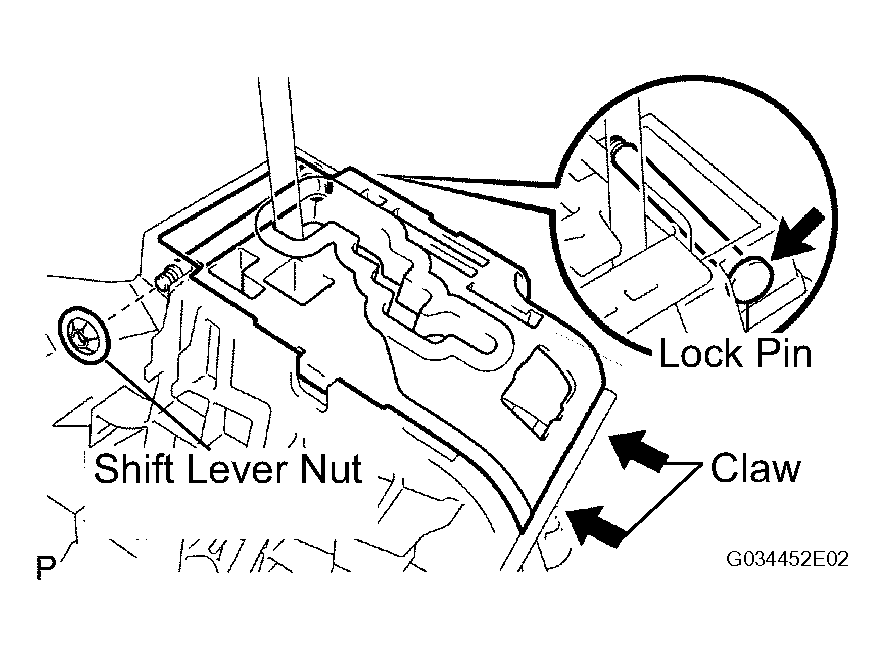

3. Install the shift lever guide housing with the shift lever lock pin and a new shift lever nut.
NOTE:
- Install the shift lever nut and lock pin after first engaging the 2 claws.
- Securely engage the claws.
Fig 3: Installing Shift Lever Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

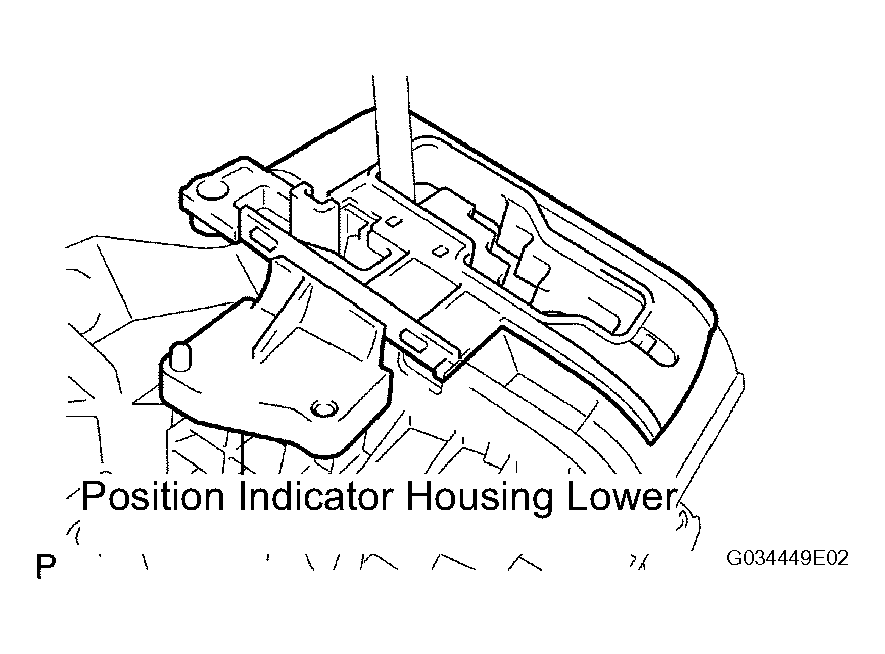

INSTALL POSITION INDICATOR HOUSING LOWER
1. Install the housing to the shift lock control unit.
Fig 4: Installing Housing To Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

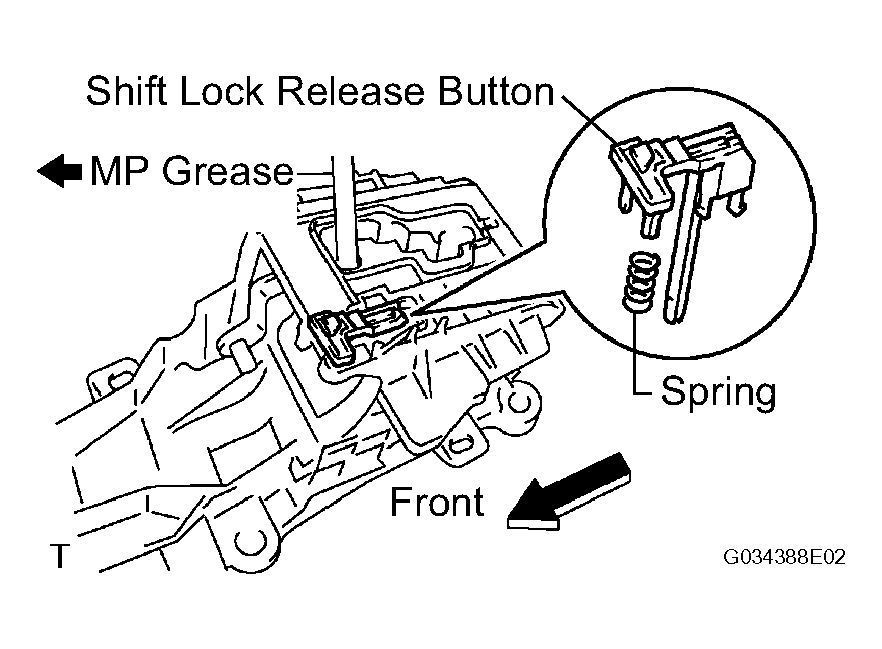

INSTALL SHIFT LOCK RELEASE BUTTON
1. Apply MP grease to the button and spring.
2. Install the button and spring to the shift lock control unit.
Fig 5: Installing Button And Spring To Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the cover to the position indicator slide cover.
Fig 6: Installing Cover To Position Indicator Slide Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the cover to the shift lock control unit.
Fig 7: Installing Cover To Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Install the bulb to the indicator light wire.
2. Install the cap to the bulb.

  Fig 8: Installing Bulb To Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire to the position indicator light guide.
NOTE: Make sure that the indicator light wire is securely installed to the position indicator light guide.

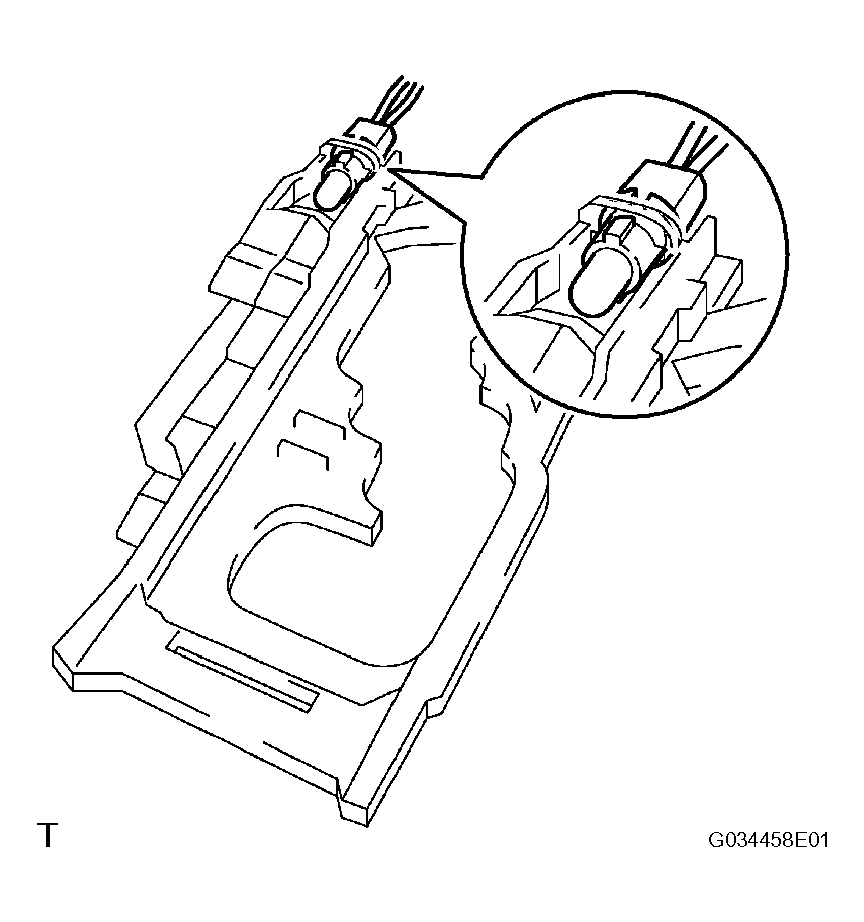

Fig 9: Installing Wire To Position Indicator Light Guide
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

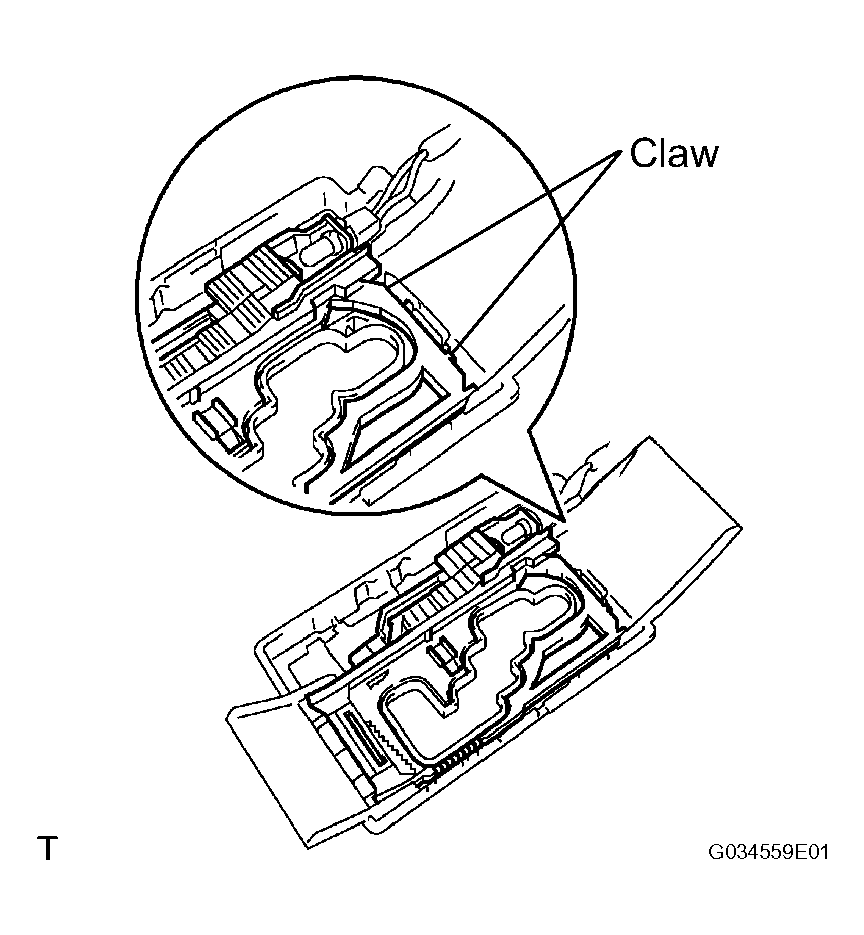

INSTALL POSITION INDICATOR LIGHT GUIDE
1. Install the guide to the floor shift position indicator housing.
  HINT:

  Securely engage the claws.

  Fig 10: Installing Guide To Floor Shift Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

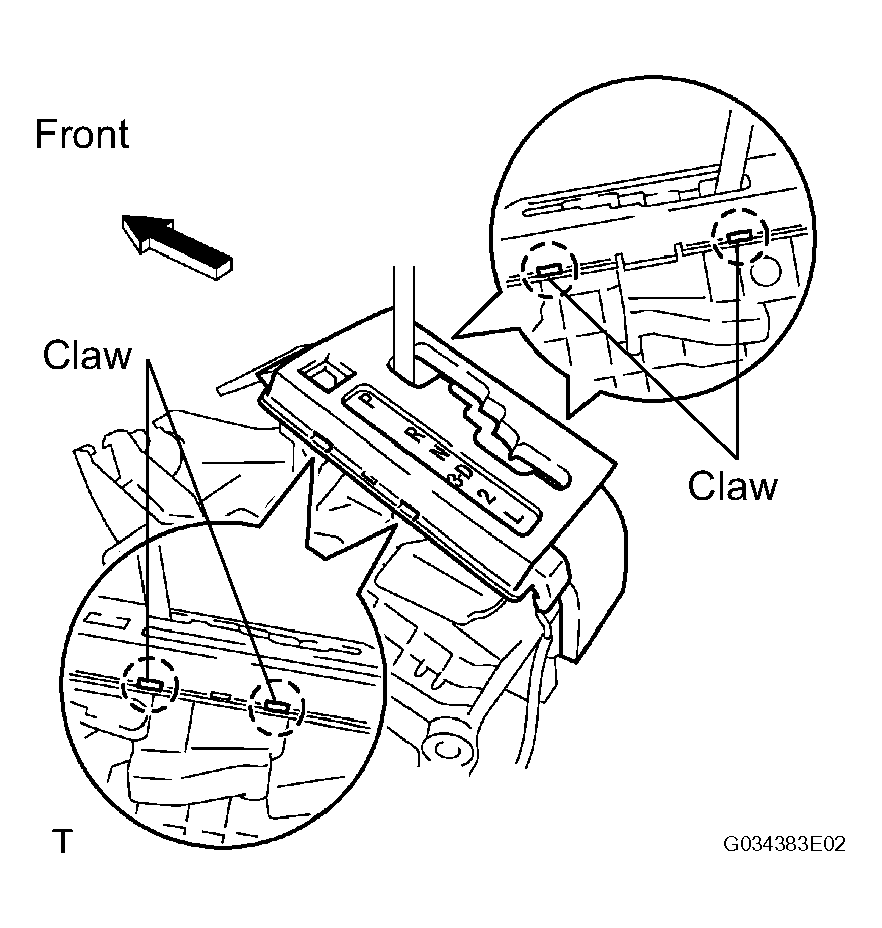

INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
1. Install the housing to the shift lock control unit.
  HINT:

  Securely engage the 4 claws.

  Fig 11: Installing Housing To Shift Lock Control Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

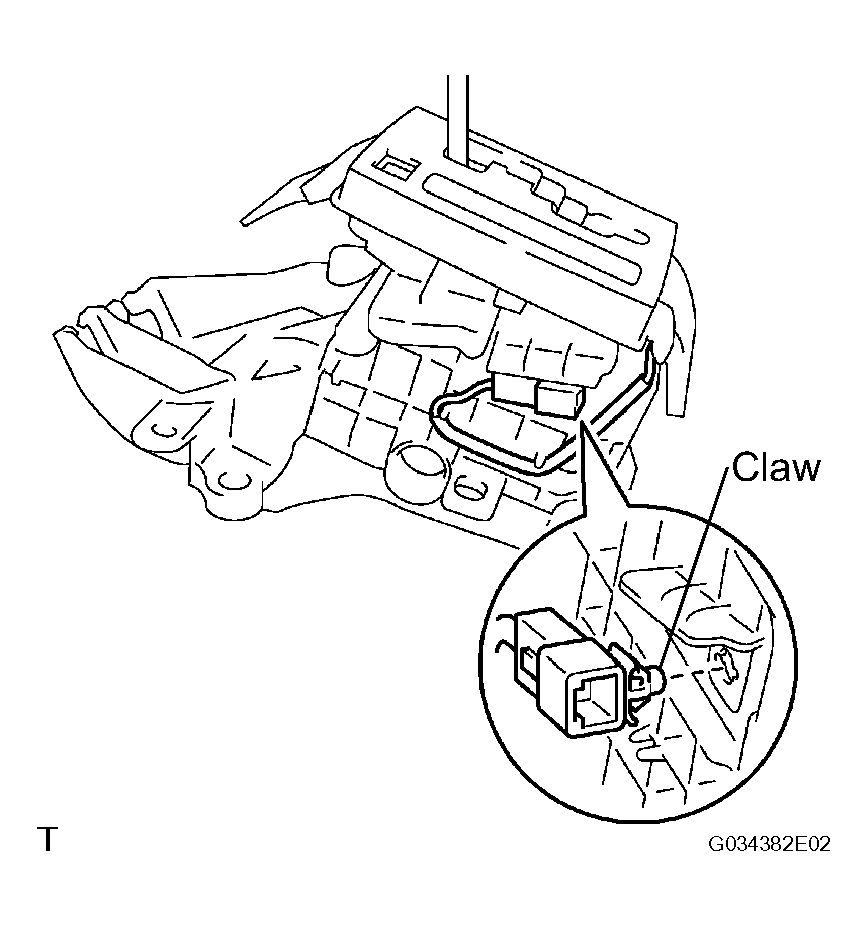

CONNECT INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Connect the wire connector to the floor shift.
NOTE: Make sure that the indicator light wire is securely installed to the floor shift.

Fig 12: Connecting Wire Connector To Floor Shift
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON COVER
1. Install the cover to the floor shift position indicator housing.
Fig 13: Installing Cover To Floor Shift Position Indicator Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
