Floor Shift Assembly: Disassembly

REMOVE SHIFT LOCK RELEASE BUTTON COVER
1. Using a screwdriver, remove the cover from the position indicator housing.
  HINT:

  Tape the screwdriver tip before use.

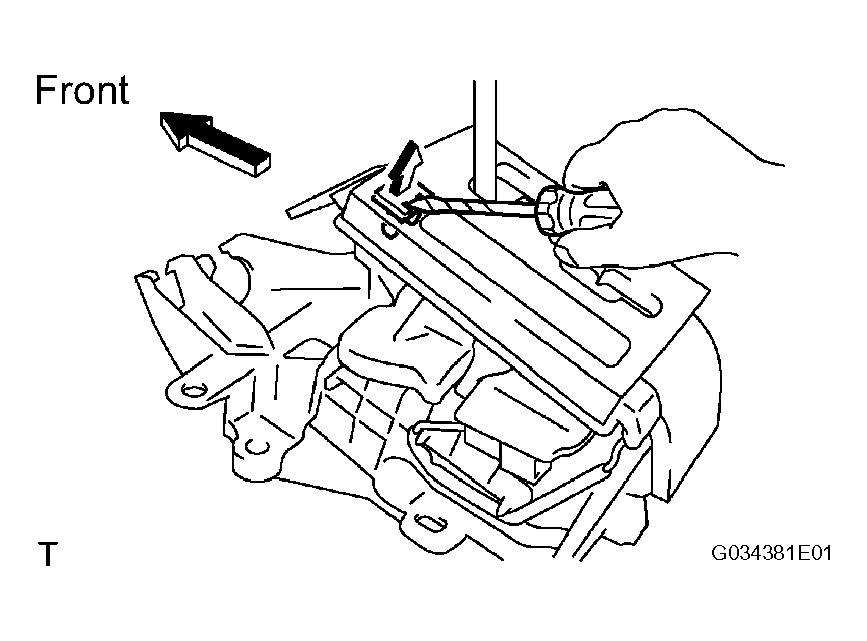

Fig 1: Removing Cover From Position Indicator Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT INDICATOR LIGHT WIRE SUBASSEMBLY
1. Disconnect the wire connector from the floor shift.

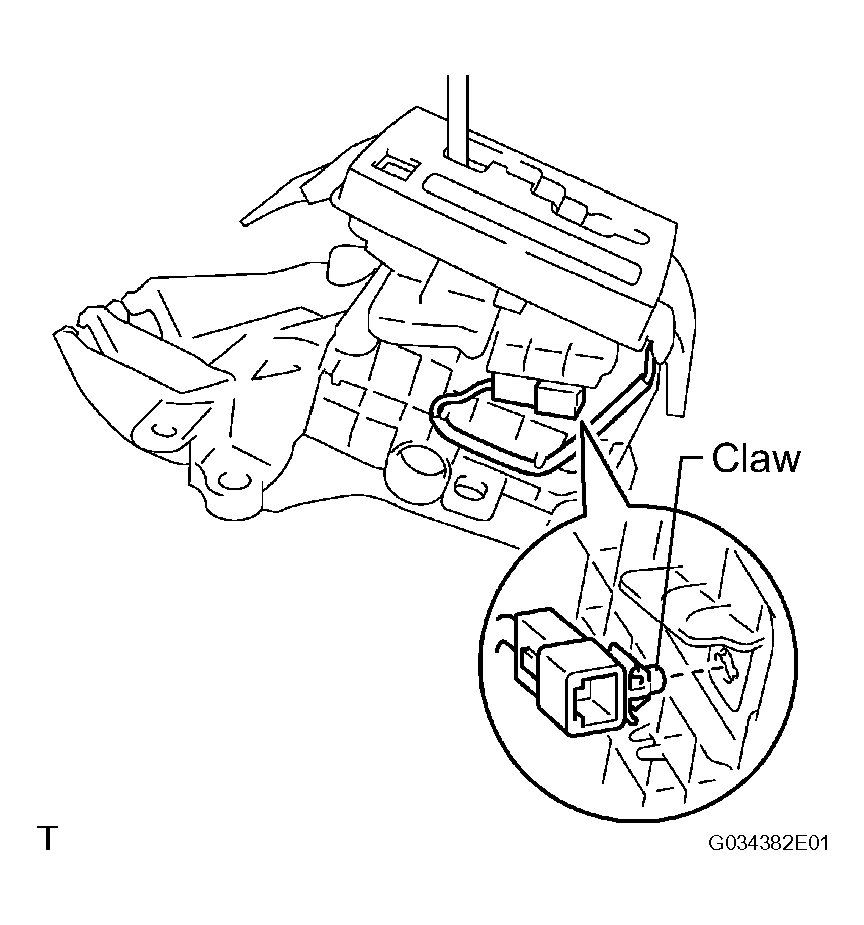

Fig 2: Disconnecting Wire Connector From Floor Shift
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
1. Using a screwdriver, remove the housing from the shift lock control unit.
  HINT:

  Tape the screwdriver tip before use.

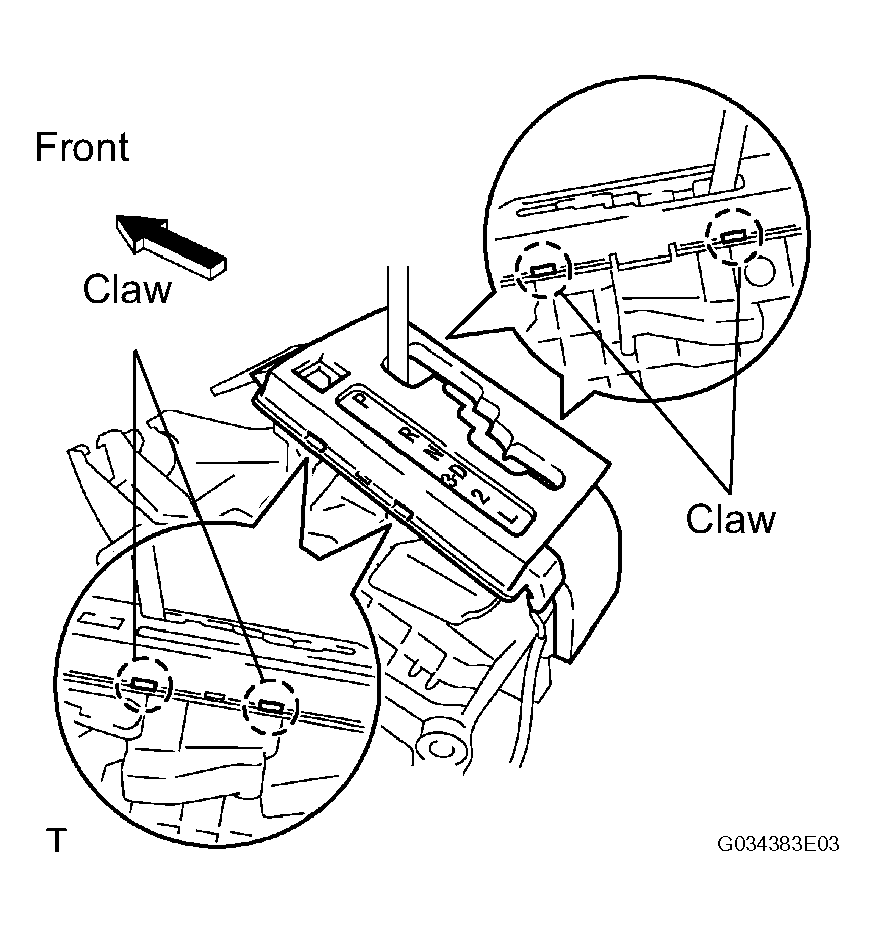

Fig 3: Removing Housing From Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LIGHT GUIDE
1. Using a screwdriver, remove the guide from the floor shift position indicator housing sub-assembly.
  HINT:

  Tape the screwdriver tip before use.

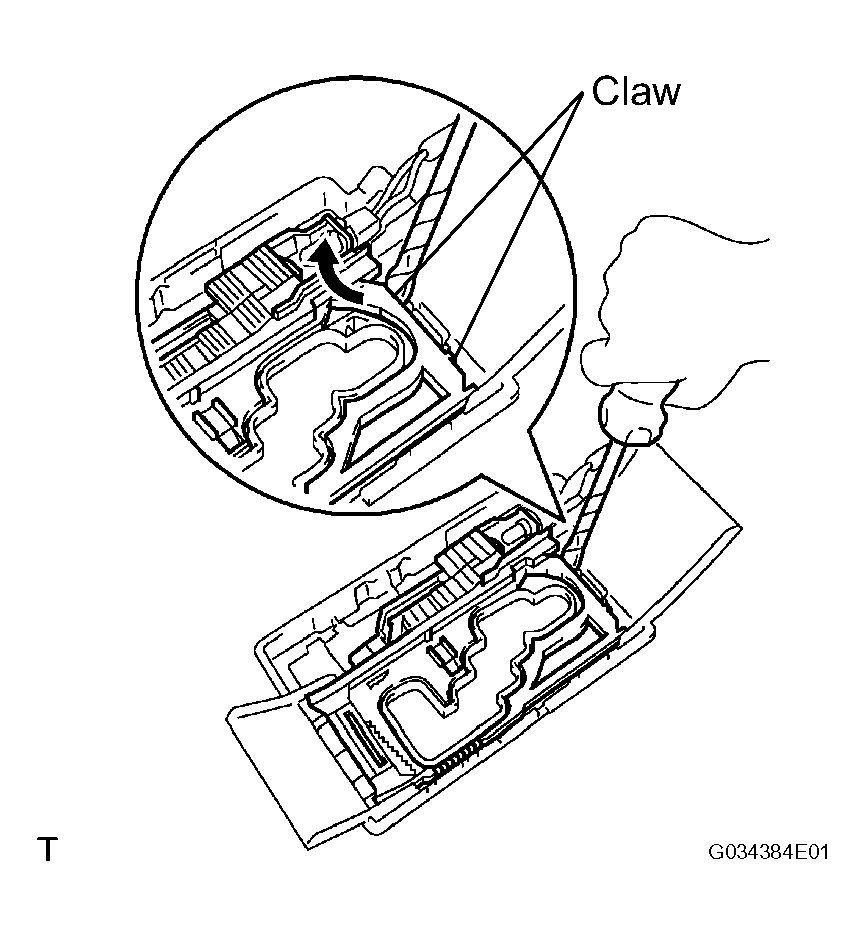

  Fig 4: Removing Guide From Floor Shift Position Indicator Housing Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Remove the wire from the position indicator light guide.

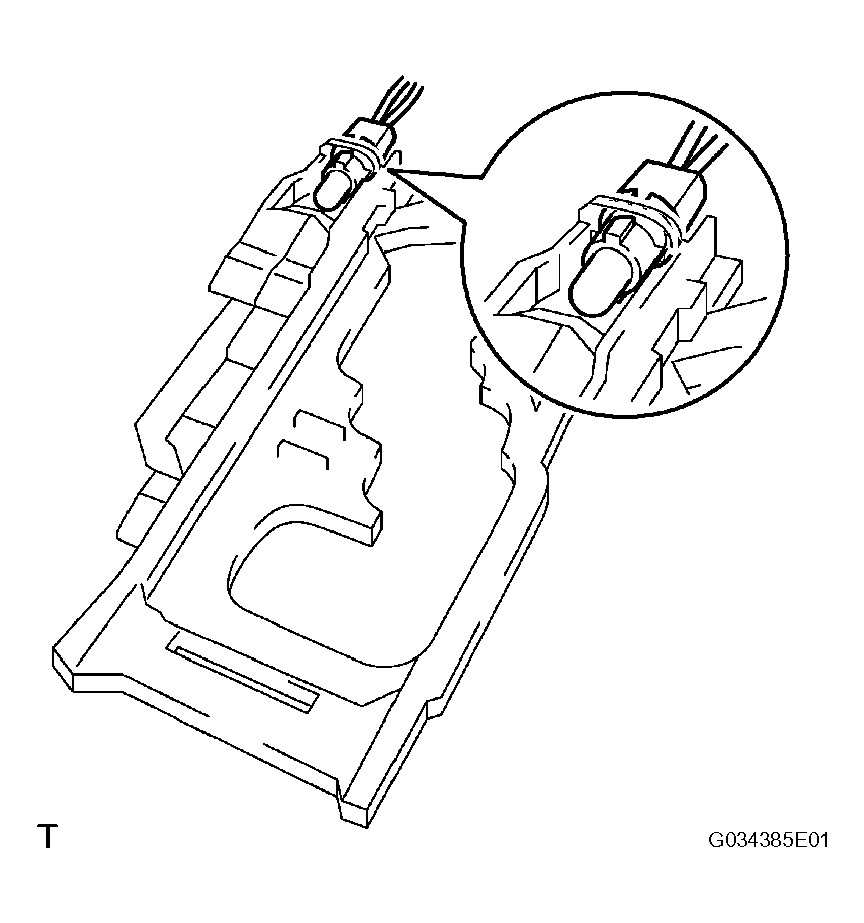

  Fig 5: Removing Wire From Position Indicator Light Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bulb from the wire.
3. Remove the cap from the bulb.
Fig 6: Removing Cap From Bulb
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the cover from the shift lock control unit.
Fig 7: Removing Cover From Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the cover from the position indicator slide cover.
Fig 8: Removing Cover From Position Indicator Slide Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON
1. Remove the button and spring from the shift lock control unit.

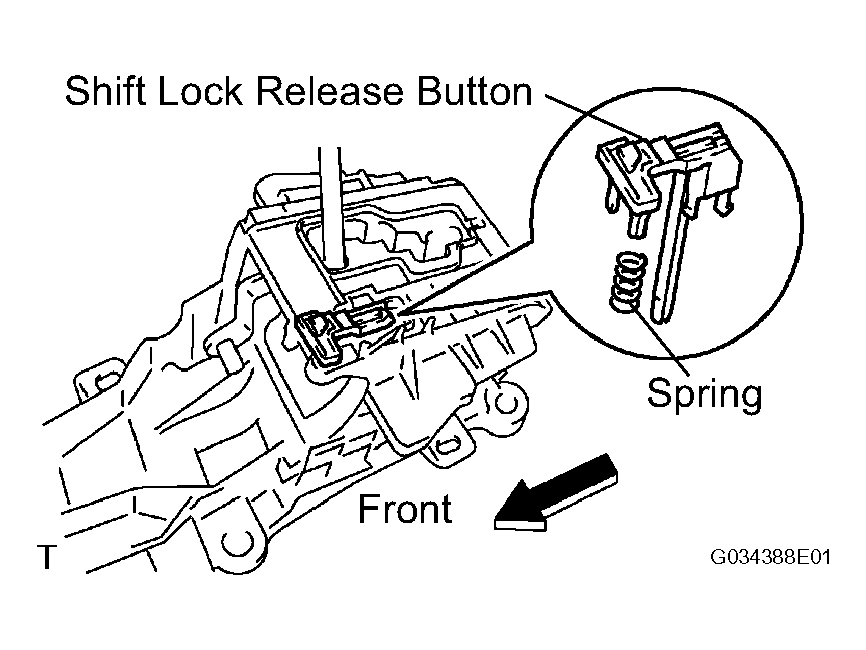

Fig 9: Removing Button And Spring From Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING LOWER
1. Remove the housing from the shift lock control unit.

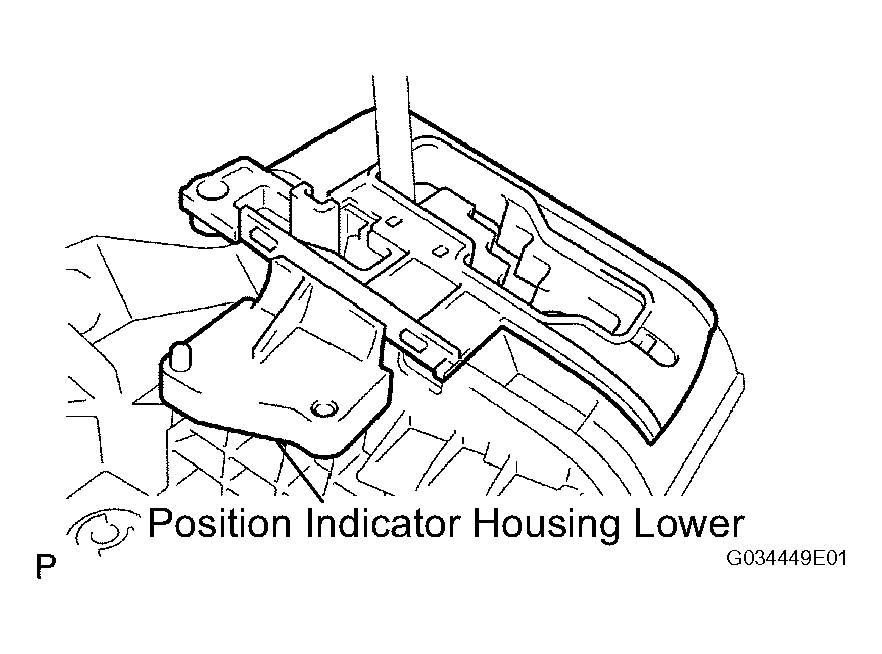

Fig 10: Removing Housing From Shift Lock Control Unit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL ECU SUBASSEMBLY
1. Remove the shift lever nut and lock pin from the shift lock control unit.
2. Remove the shift lever guide housing from the shift lock control unit.

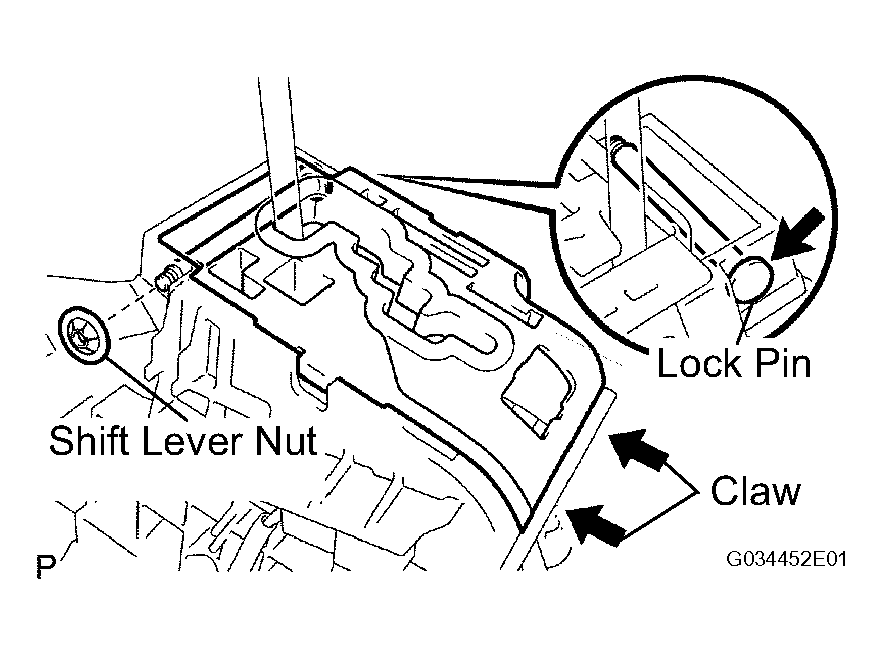

  Fig 11: Removing Shift Lock Control ECU Subassembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: First remove the shift lever nut and lock pin. Then disengage the 2 claws.
3. Remove the 2 screws and ECU.

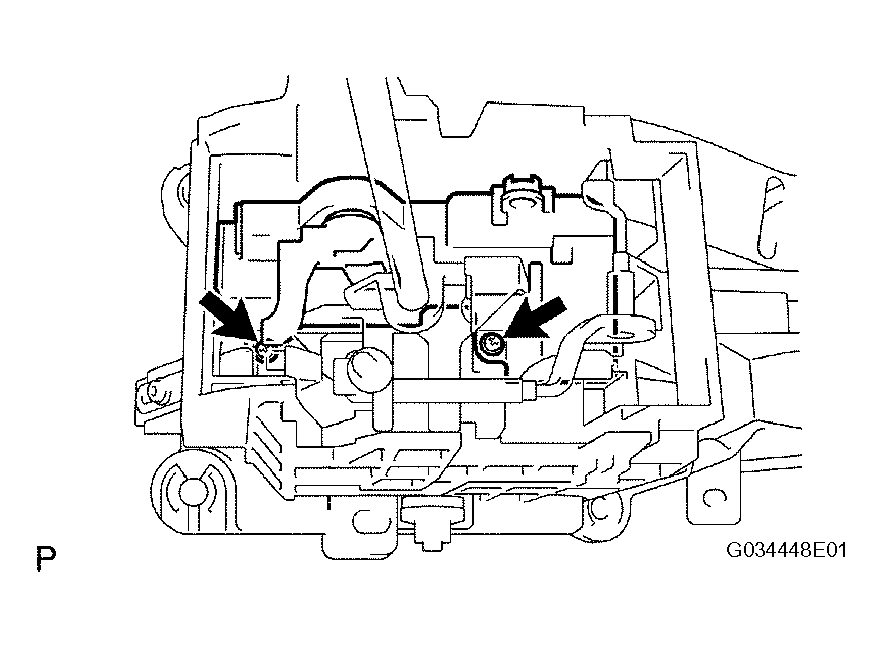

Fig 12: Removing Screws And ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
