System Diagram

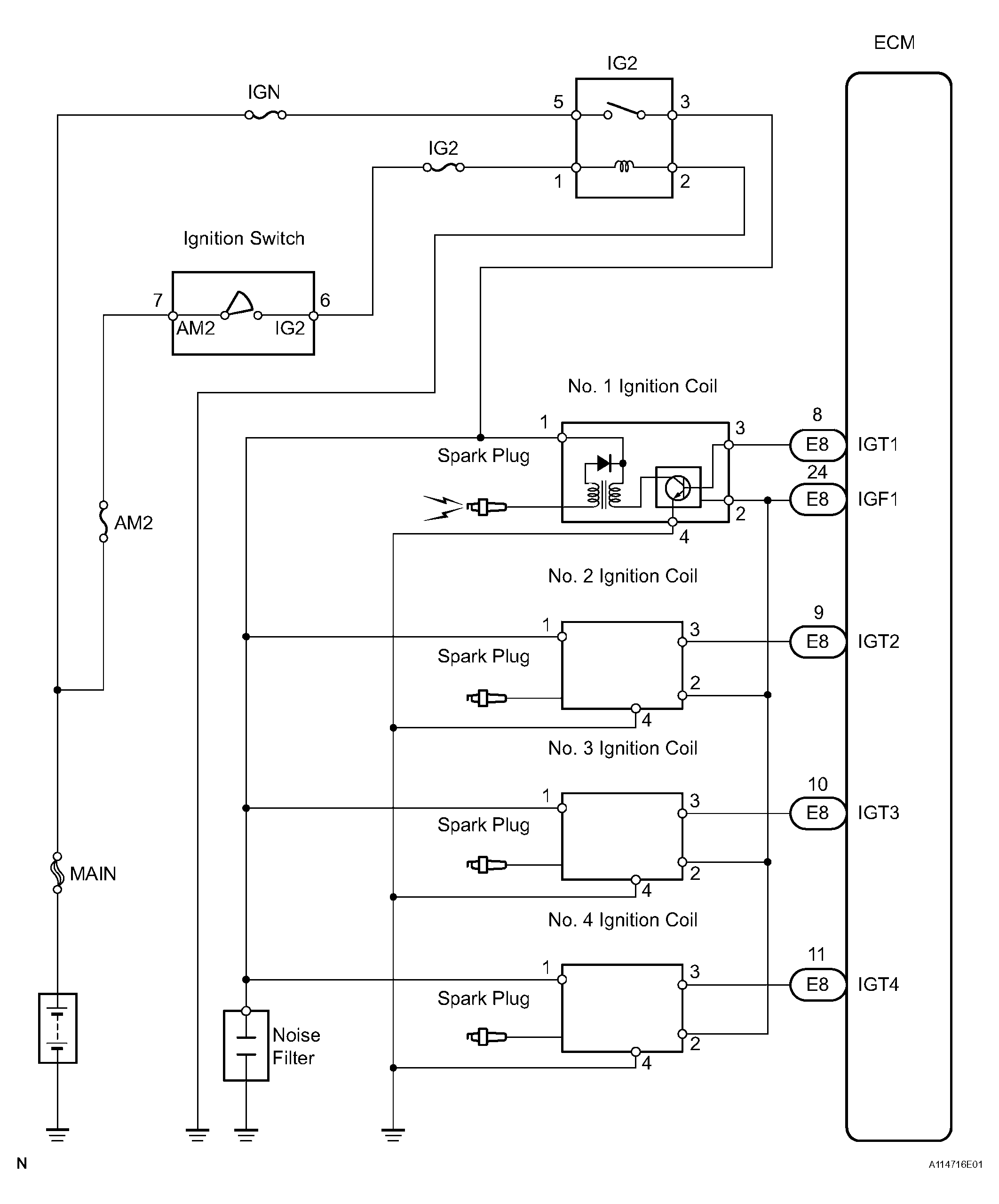

Fig 1: Identifying Ignition System Diagram (1 Of 2)
G04222032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

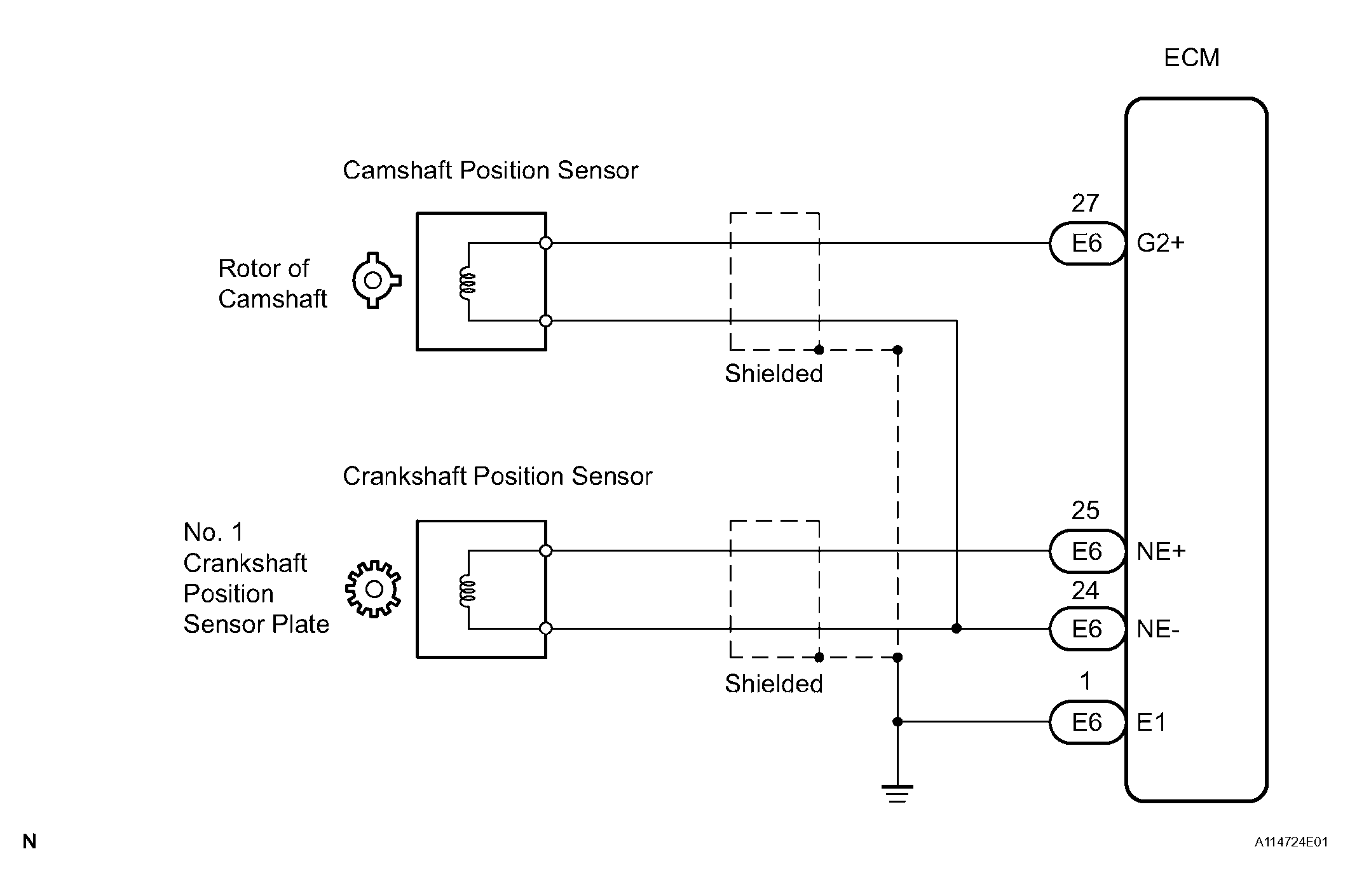

Fig 2: Identifying Ignition System Diagram (2 Of 2)
G04222033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
