Ignition Coil: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE ENGINE COVER (See  REMOVAL  )
  3. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 4 ignition coil connectors.

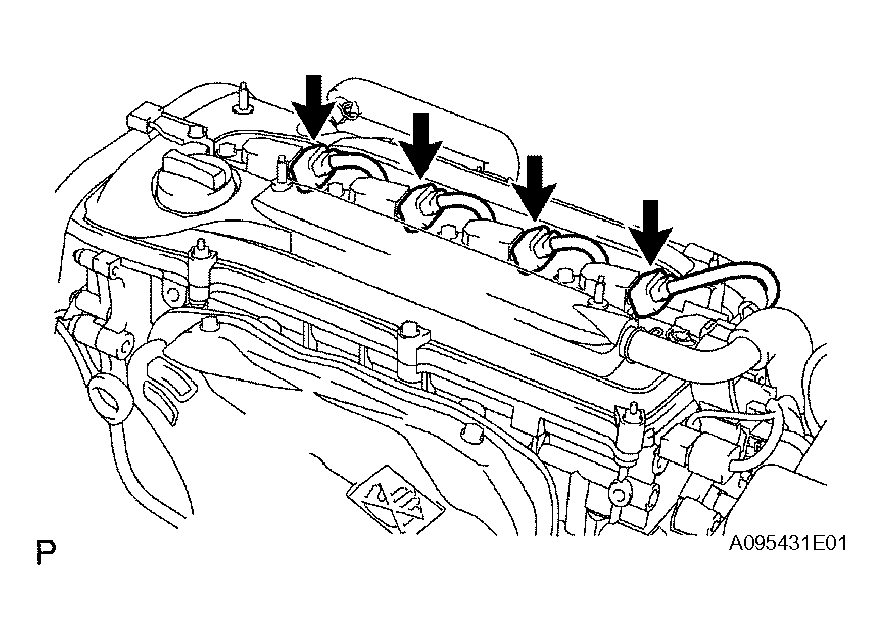

      Fig 1: Disconnecting Ignition Coil Connectors
      G04222041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 ignition coils.

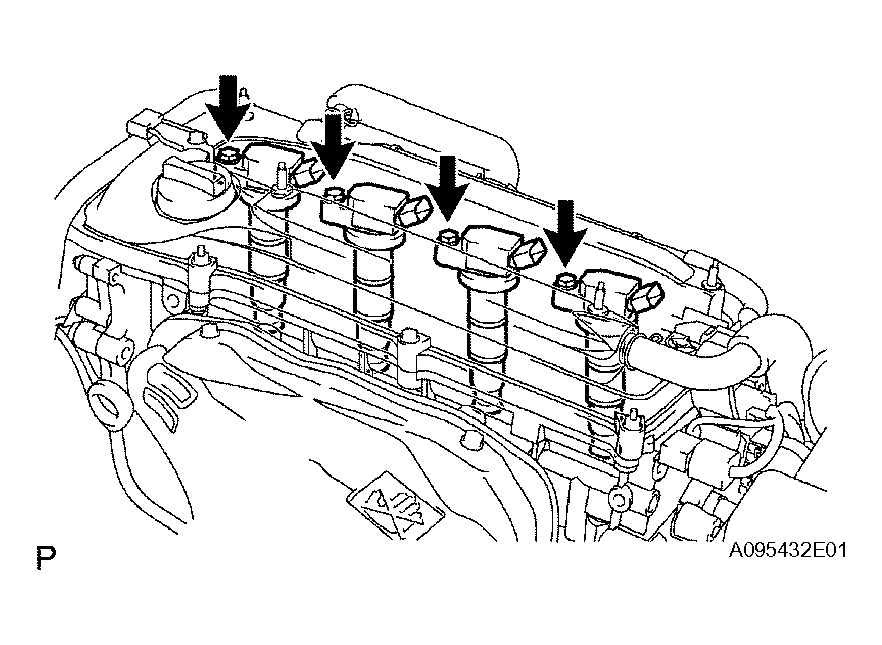

    Fig 2: Removing Bolts And Ignition Coils
    G04222042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
