Fuel Injector: Components

Fig 1: Fuel Injector, Replacement Components With Torque Specifications (1 Of 2)
G04221788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

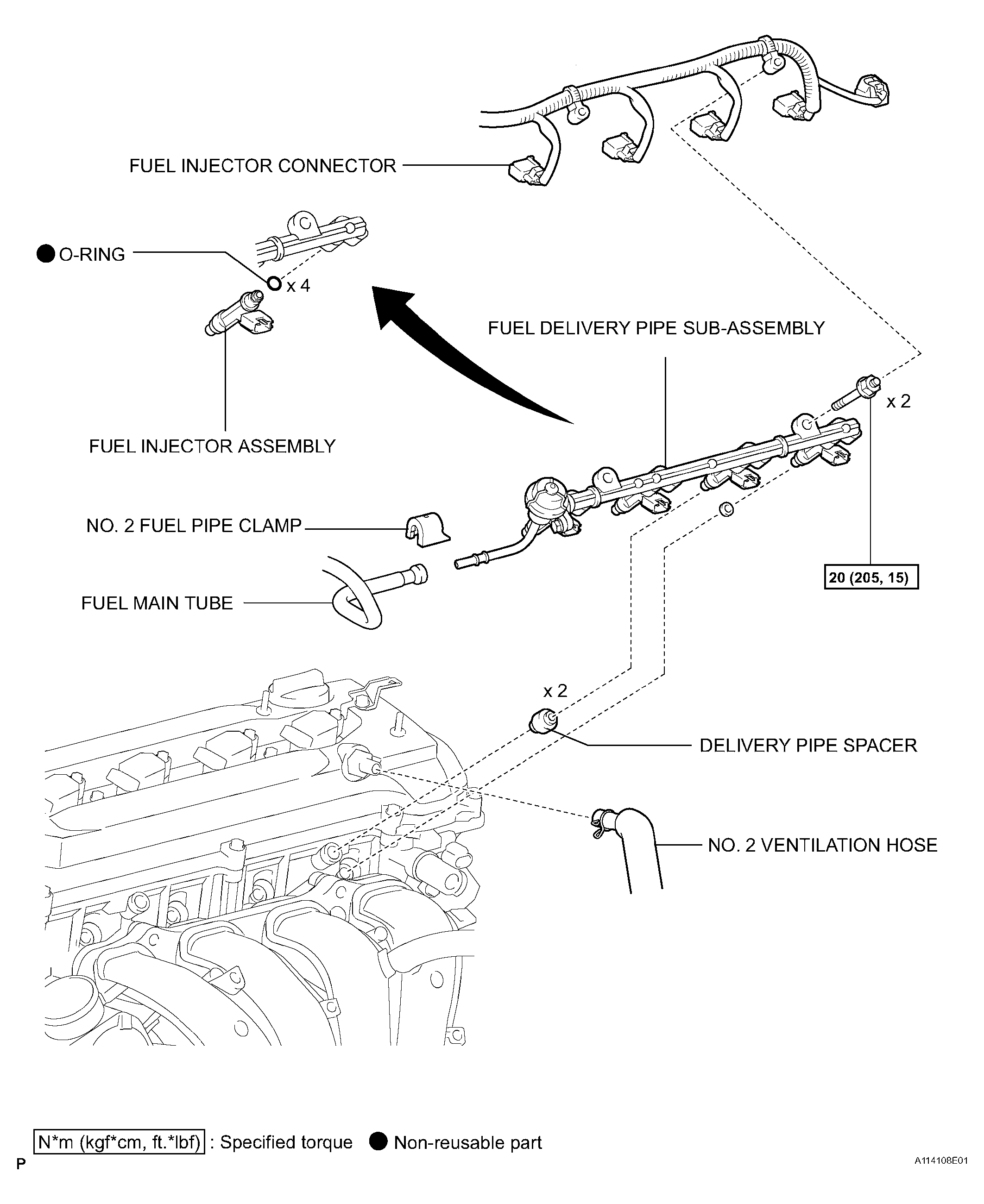

Fig 2: Fuel Injector, Replacement Components With Torque Specifications (2 Of 2)
G04221789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
