Home >> Scion >> 2006 >> tC Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Door Lock >> Front Door Lock >> Components

Front Door Lock: Components

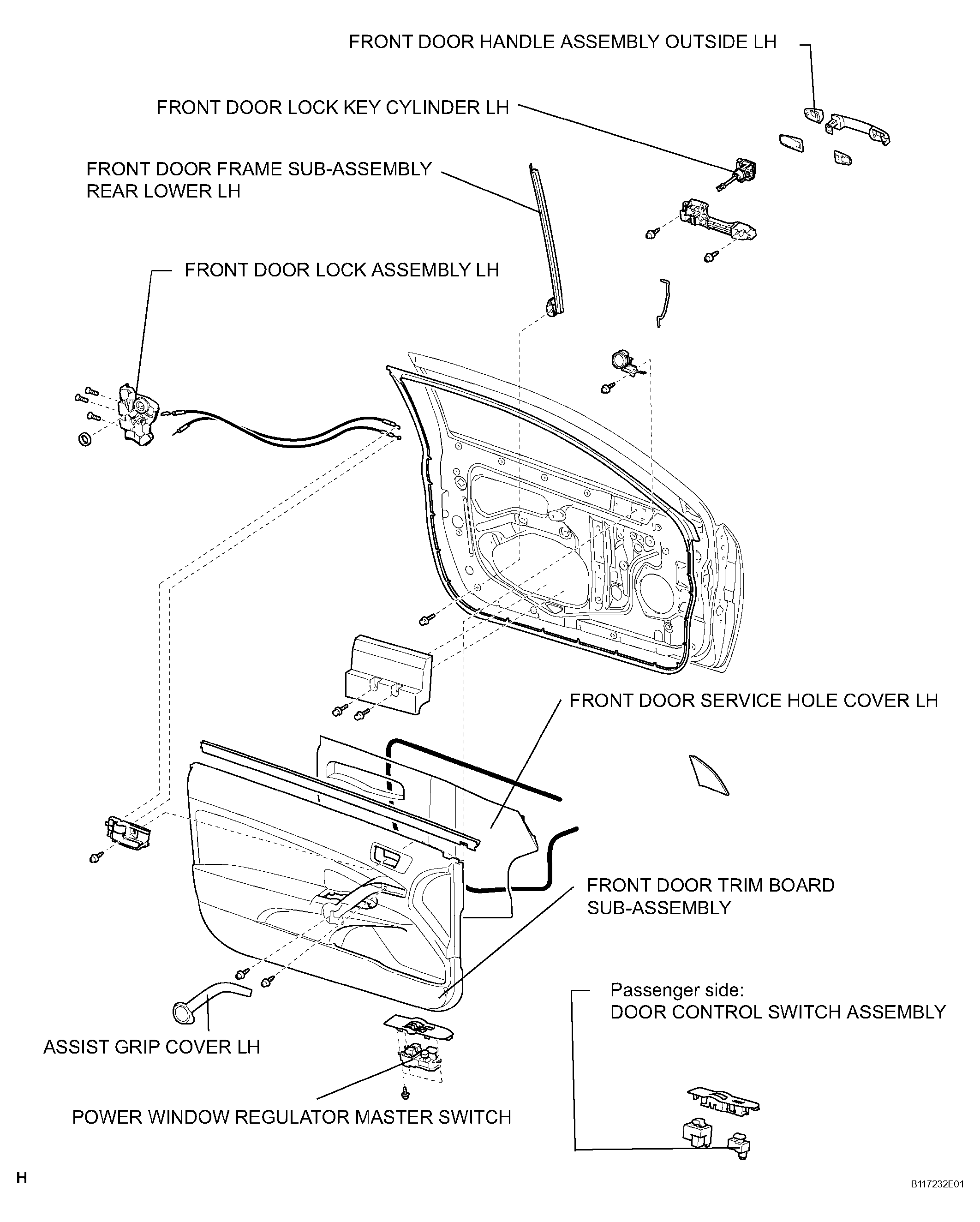

Fig 1: Identifying Front Door Lock Components

G04224312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
