Transmission Control Cable ASSY (MTM): Replacement

HINT:

See COMPONENTS

REMOVE FRONT FLOOR HEAT INSULATOR NO. 1
REMOVE SHIFT LEVER KNOB SUB-ASSY (See REPLACEMENT )
REMOVE CONSOLE BOX SUB-ASSY REAR (See REPLACEMENT )
SEPARATE FLOOR SHIFT LEVER ASSY

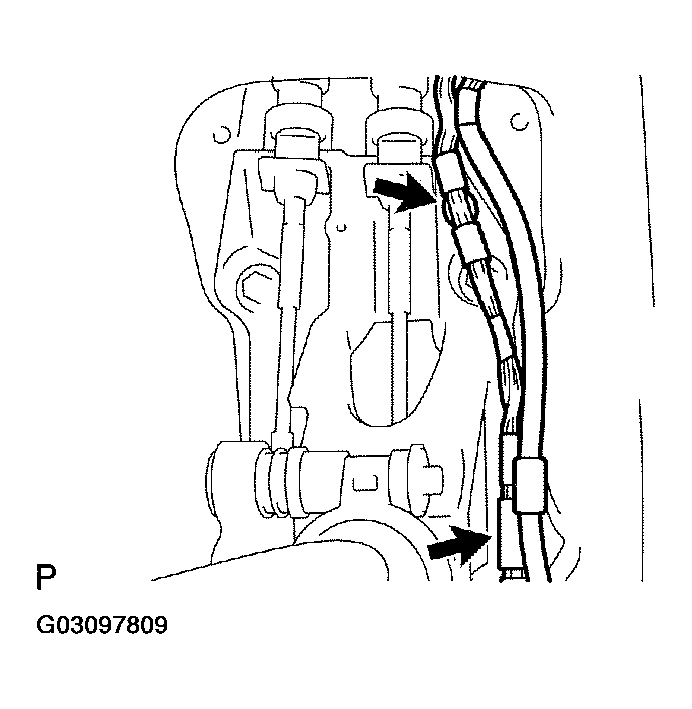

1. Separate the wire harness.

  Fig 1: Separating Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

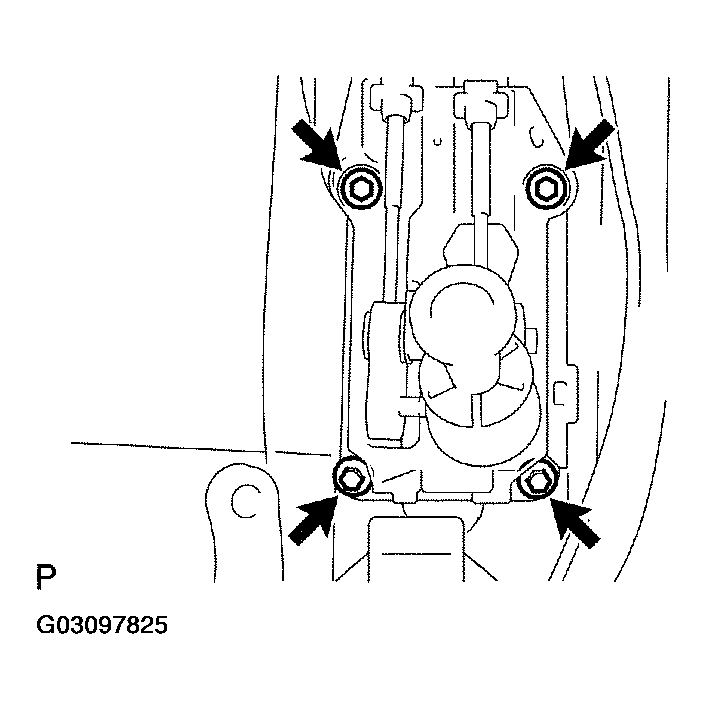

2. Remove the 4 bolts and separate the floor shift lever assy.

  Fig 2: Removing Bolts And Separating Floor Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL CABLE ASSY

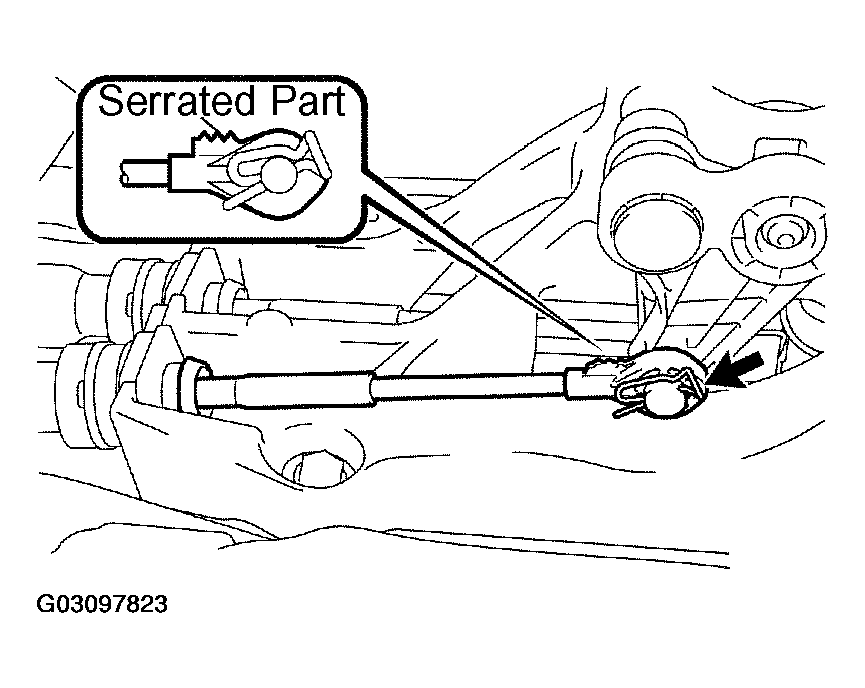

1. Remove the clip, and separate the cable end of the transmission control select cable from the floor shift lever assy.

  Fig 3: Removing Transmission Control Select Cable Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

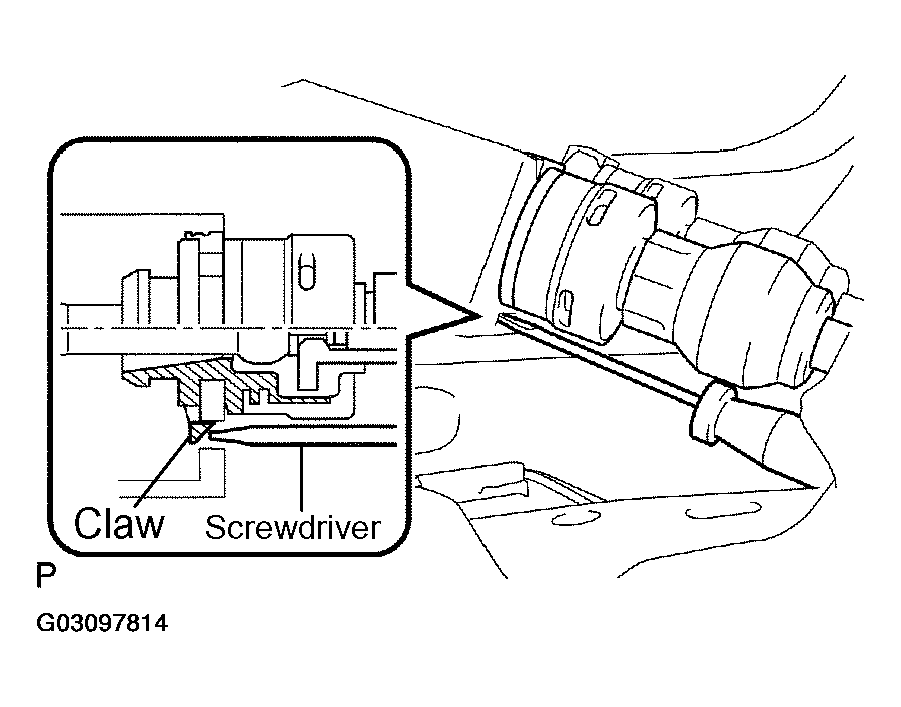

2. Using a screwdriver, release the claw.

  Fig 4: Releasing Transmission Control Select Cable Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Separate the transmission control select cable from the shift lever retainer.
4. Remove the clip, and separate the cable end of the transmission control shift cable from the floor shift lever assy.

  Fig 5: Removing Transmission Control Shift Cable Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

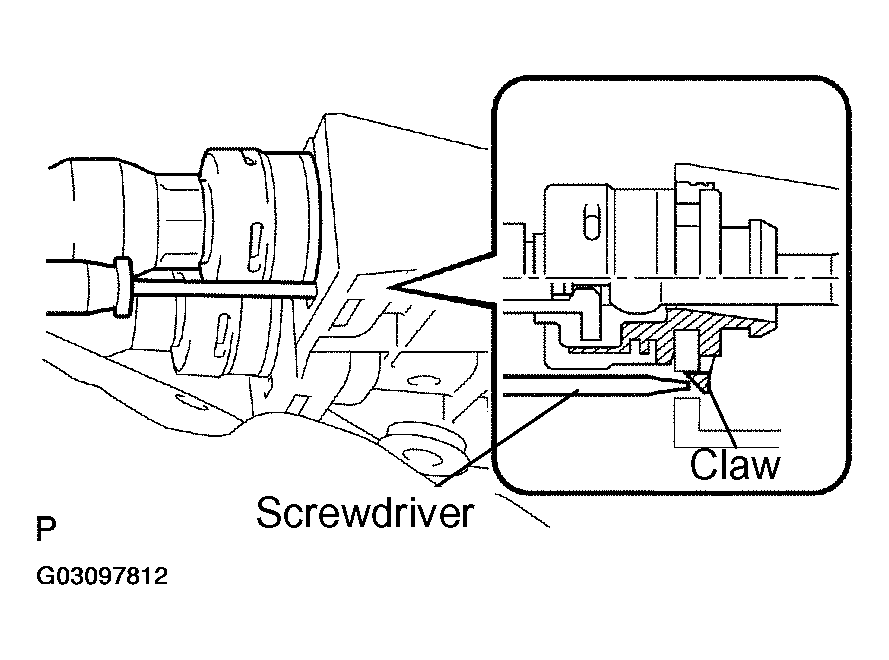

5. Using a screwdriver, release the claw.

  Fig 6: Releasing Transmission Control Shift Cable Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Separate the transmission control shift cable from the shift lever retainer.
7. Remove the 2 clips and the 2 washers, and separate the 2 cables from the manual transaxle.

  Fig 7: Removing Clips And Washers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the 2 clips, and separate the 2 cables from the control cable bracket.
9. Remove the 2 bolts and the retainer from the floor.

  Fig 8: Removing Bolts And Retainer From Floor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Remove the retainer from the grommet.

  Fig 9: Removing Retainer From Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. Remove the transmission control select cable from the grommet.

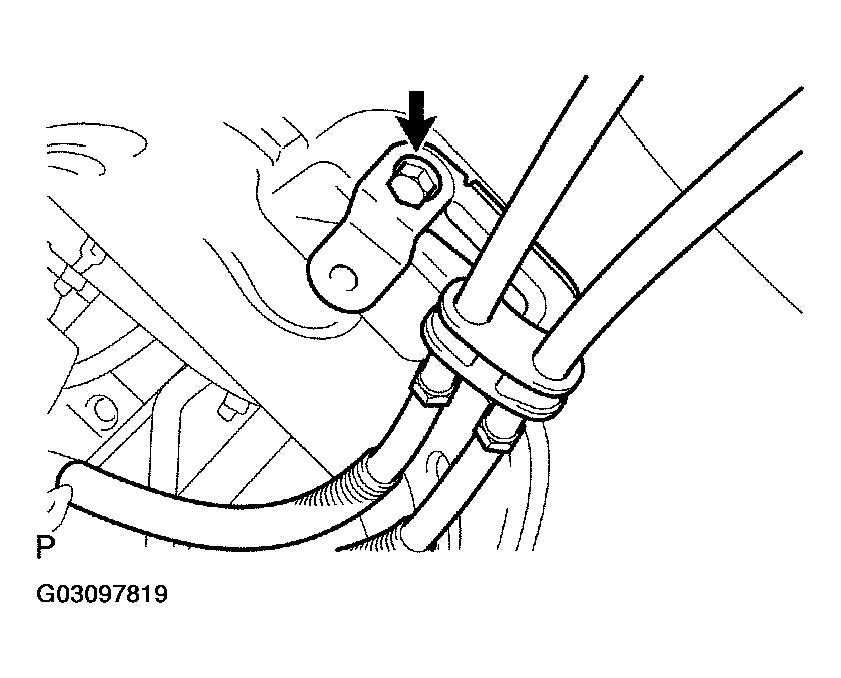

12. Remove the bolt and the clamp.

  Fig 10: Removing Bolt And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. Pull out the transmission control select cable through the floor hole and the retainer.
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Pull the transmission control select cable through the floor hole and the retainer.
2. Install the clamp with the bolt.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  Fig 11: Installing Transmission Control Cable Clamp Assy With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the transmission control cable assy on the grommet.
4. Install the retainer on the grommet.
  NOTE: Fit the projections of the grommet into the hole of the retainer.

  Fig 12: Installing Retainer On Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the retainer on the floor with the 2 bolts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

  Fig 13: Installing Retainer On Floor With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the transmission control cable assy to the shift lever refiner.
7. Connect the end of the transmission control shift cable to the floor shift lever assy.

  Fig 14: Connecting End Of Transmission Control Shift Cable To Floor Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Connect the end of the transmission control select cable to the floor shift lever assy.
  NOTE:
  - The serrated part of the select cable should face up ward when the select cable is connected.
  - The clip should be inserted in the direction shown in Fig 15.
  Fig 15: Connecting End Of Transmission Control Select Cable To Floor Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Connect the 2 cable ends, and install the 2 washers and the 2 clips.
10. Install the 2 new clips on the control cable bracket.

  Fig 16: Connecting Cable Ends And Installing Washers And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR SHIFT LEVER ASSY

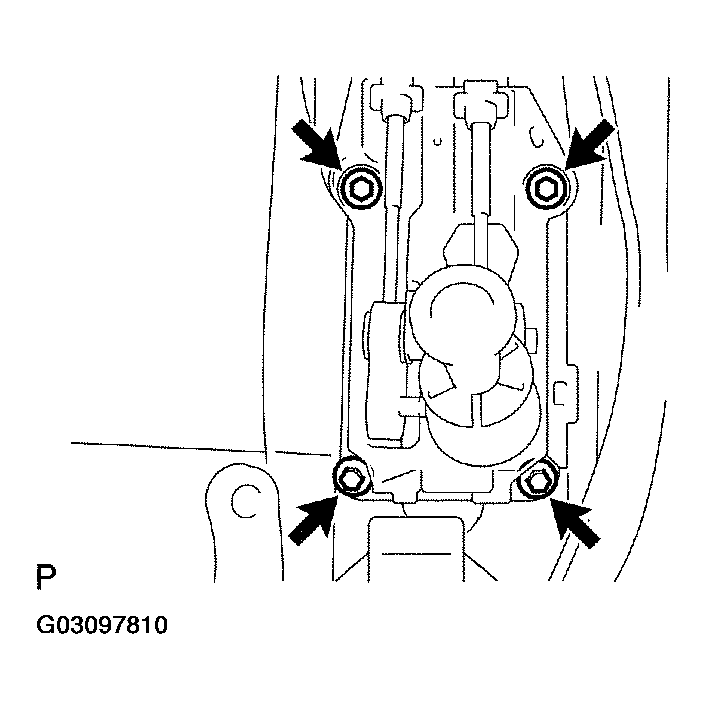

1. Install the floor shift lever assy with the 4 bolts.
  Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

  Fig 17: Installing Floor Shift Lever Assy With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wire harness.

  Fig 18: Installing Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX SUB-ASSY REAR (See REPLACEMENT )
INSTALL SHIFT LEVER KNOB SUB-ASSY (See REPLACEMENT )
INSTALL FRONT FLOOR HEAT INSULATOR NO. 1

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
