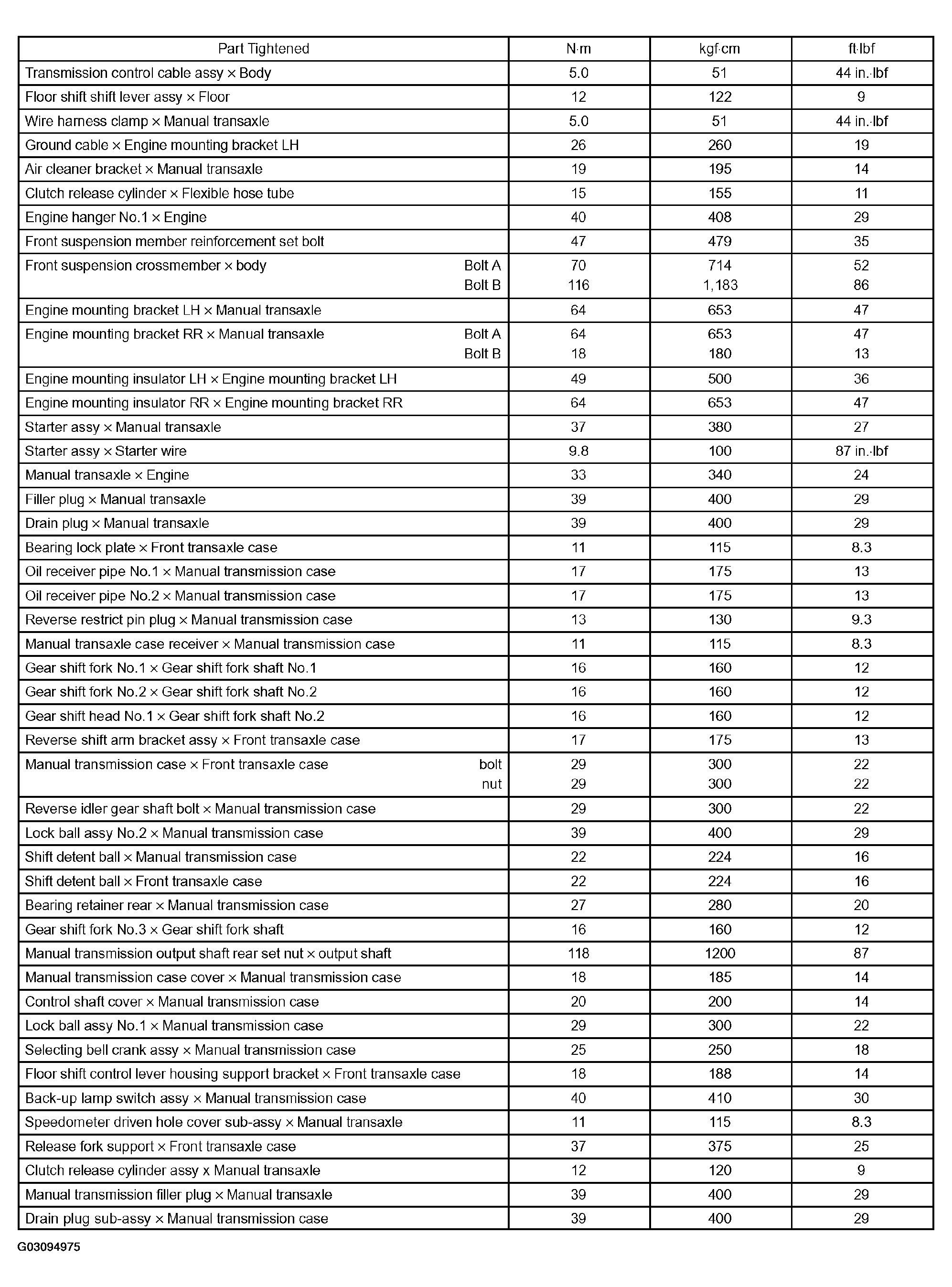

Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 MANUAL TRANSMISSION/TRANSAXLE TORQUE SPECIFICATIONS (2 OF 2)
| Part Tightened |
N.m |
kgf.cm |
ft.lbf |
| Selecting bell crank No.2 plate washer at Selecting bell crank |
12 |
120 |
9 |
| Front differential ring gear at Front differential case |
77 |
790 |
57 |
