Circuit Description

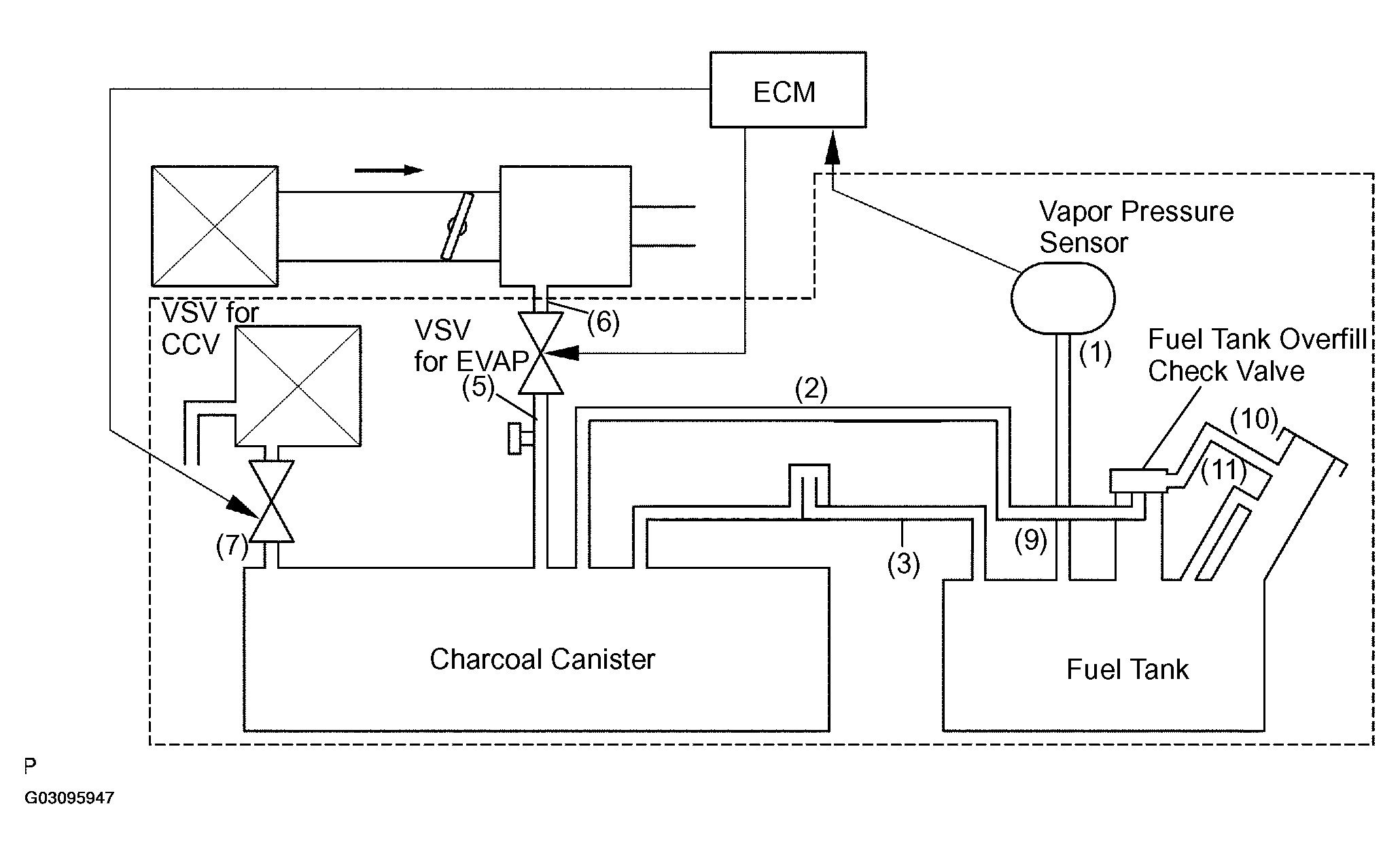

The vapor pressure sensor, VSV for CCV (Vacuum Switching Valve for Canister Closed Valve) and VSV for EVAP (Evaporative Emission) are used to detect abnormalities in the EVAP control system.
The ECM determines whether there is an abnormality in the EVAP control system based on the vapor pressure sensor signal.
