Engine Compartment Junction & Relay Blocks
NOTE:

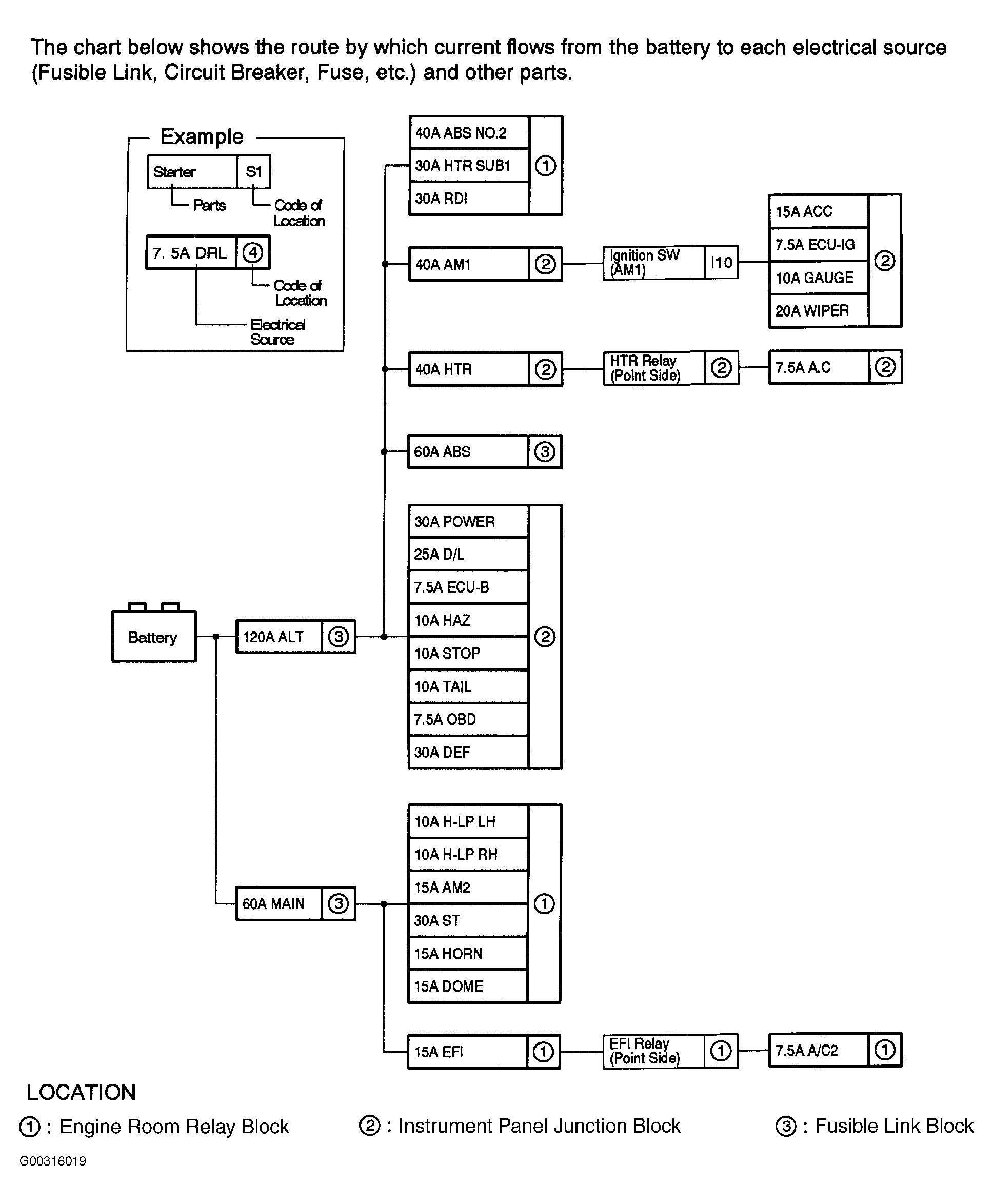

For engine compartment fusible link and relay block location, see Fig 1. For description of electrical power distribution, see Fig 2.
Component Locations
- Anti-lock Brake System (ABS) relay block is located at right rear of engine compartment. For identification of relays, see Fig 3. For wiring diagrams of circuits, see ANTI-LOCK BRAKES in SYSTEM WIRING DIAGRAMS article.

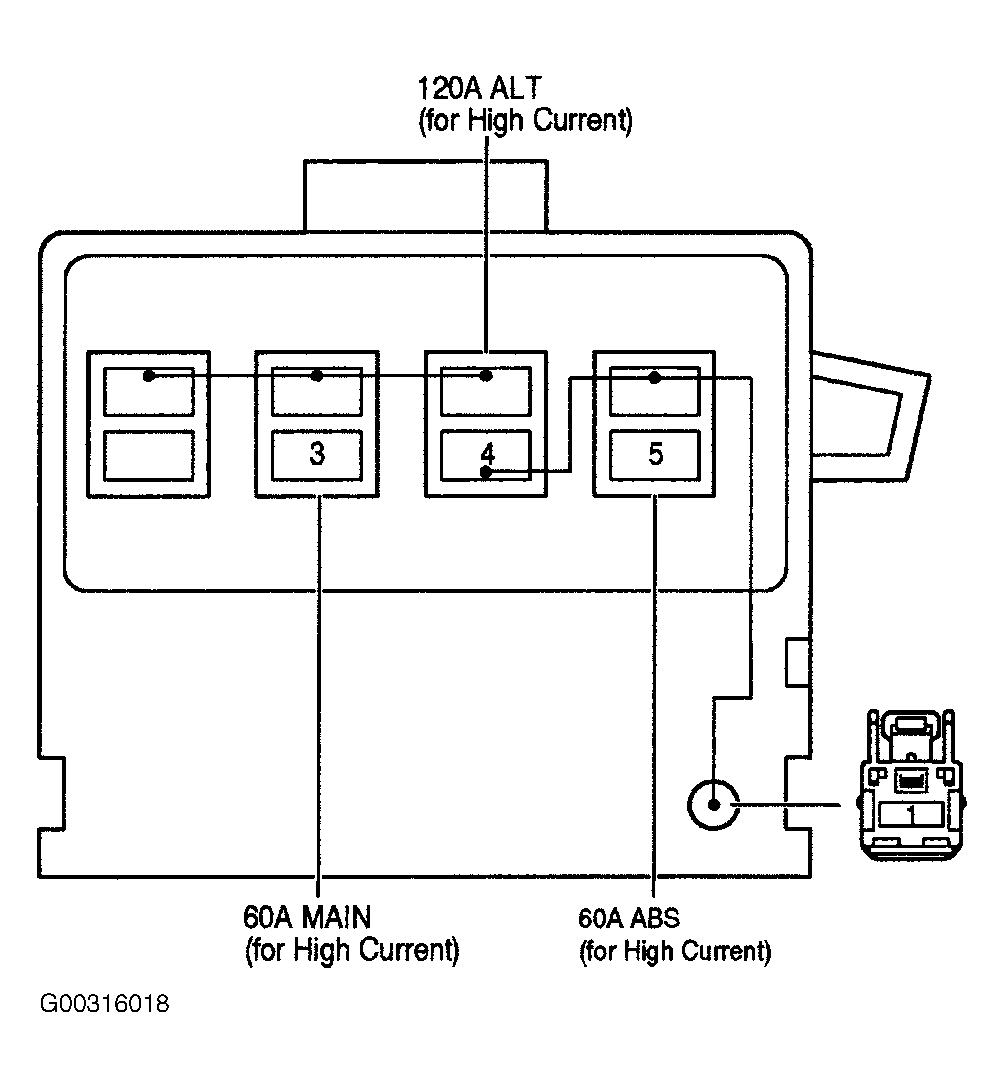

- Fusible link block is located at left side of engine compartment. For identification of components, see Fig 4. For identification of protected circuits, see Engine Compartment Fusible Link Block Protected Circuits . For wiring diagrams of circuits, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
- Engine compartment relay block is located at left of engine compartment. For identification of components, see Fig 5. For identification of protected circuits, see Engine Compartment Relay Block Protected Circuits . For wiring diagrams of circuits, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
ENGINE COMPARTMENT ANTI-LOCK BRAKE SYSTEM RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ABS MTR Relay |
| ABS CUT Relay |
ENGINE COMPARTMENT FUSIBLE LINK BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 60A | ABS | VSC |
| 60A | MAIN | Charging |
| Combination Meter | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| SRS | ||
| Starting and Ignition | ||
| VSC | ||
| 120A | ALT | Charging |
| VSC | ||
ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ST Relay |
| Fan No.2 Relay |
| Fan No.1 Relay |
| EFI Relay |
| Horn Relay |
| HTR SUB1 Relay |
ENGINE COMPARTMENT RELAY BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | A/C2 | Air Conditioning |
| 10A | H-LP LH/H-LP LO LH | Headlight |
| Wireless Door Lock Control | ||
| 10A | H-LP RH/H-LP LO RH | Headlight |
| Wireless Door Lock Control | ||
| 15A | AM2 | Charging |
| Combination Meter | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| SRS | ||
| Starting and Ignition | ||
| VSC | ||
| 15A | DOME | Audio System |
| Combination Meter | ||
| Door Lock Control | ||
| Engine Control | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder and Seat Belt Warning | ||
| Light Reminder | ||
| SRS | ||
| Taillight and Illumination | ||
| VSC | ||
| Wireless Door Lock Control | ||
| 15A | EFI | Electronically Controlled Transmission and A/T Indicator |
| Engine Control | ||
| 15A | HORN | Horn |
| Wireless Door Lock Control | ||
| 30A | RDI | Radiator Fan and Condenser Fan |
| 30A | ST | Starting and Ignition |
| 40A | ABS NO.2 | VSC |
| 50A | HTR SUB1 | PTC Heater |
