Starter ASSY: Components

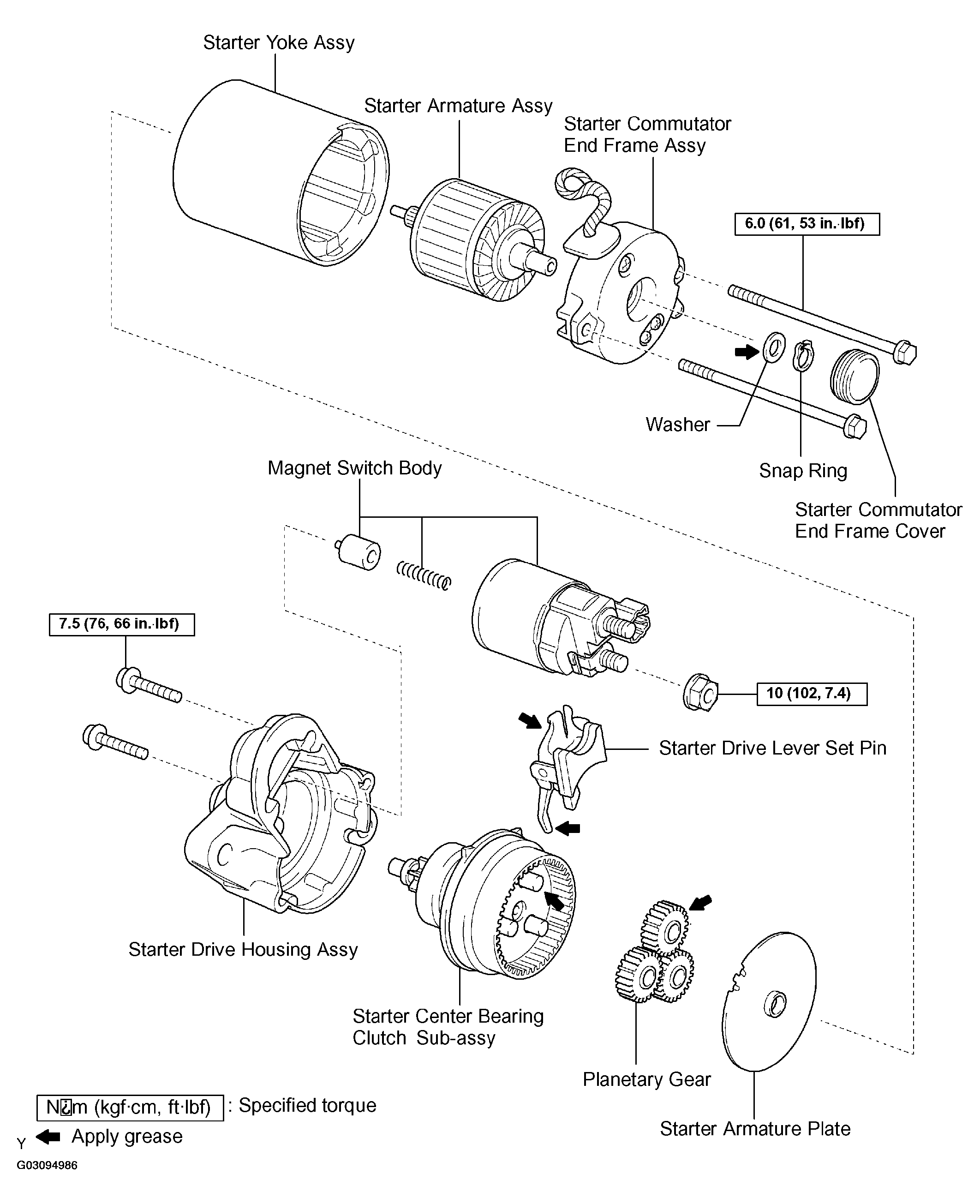

Fig 1: Identifying Starter Assy Components

G03094986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
