Home >> Scion >> 2005 >> xB Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock Control System >> Location

Power Door Lock Control System: Location

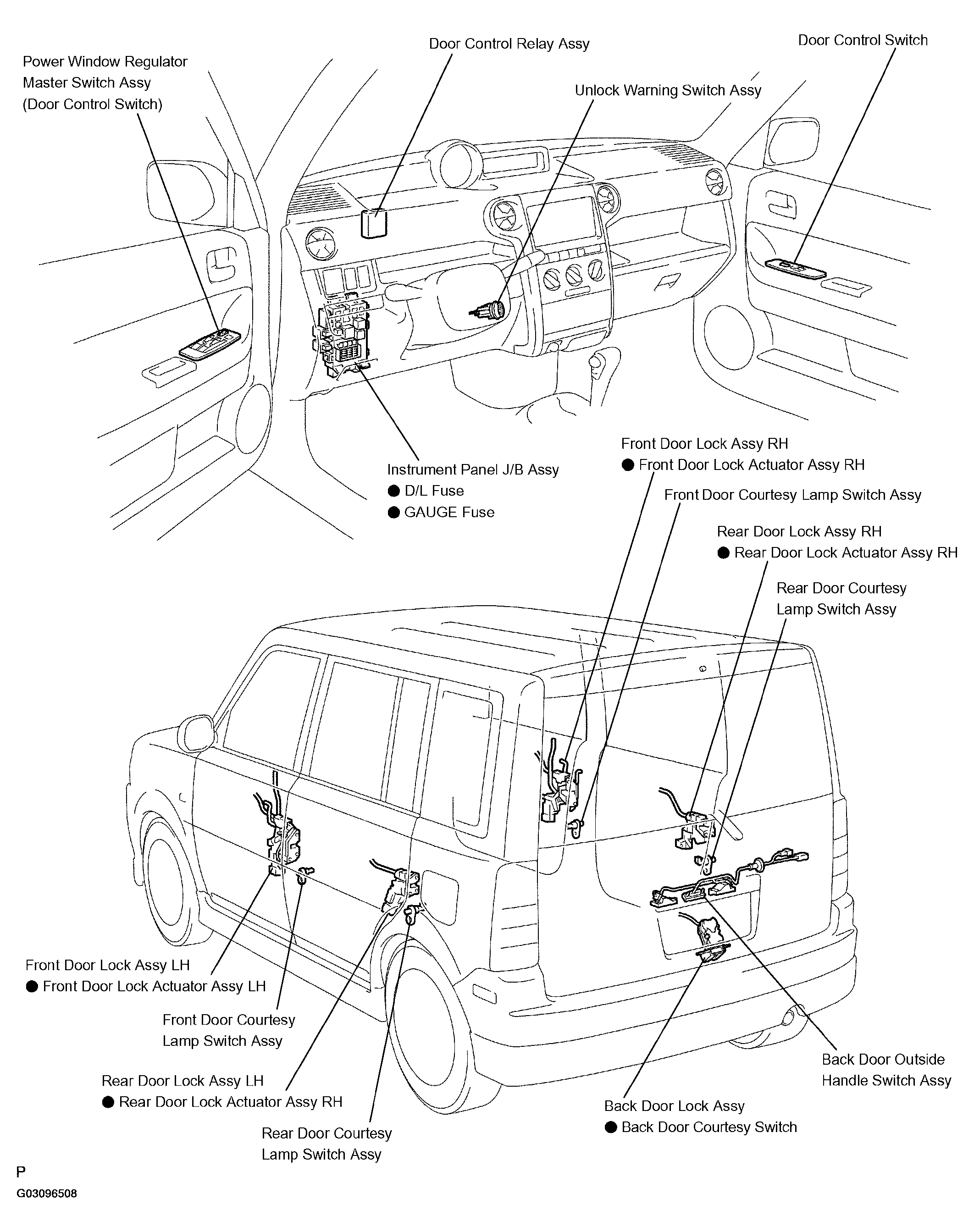

Fig 1: Locating Power Door Lock Control System Components

G03096508

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
