Quarter Window ASSY RH: Components

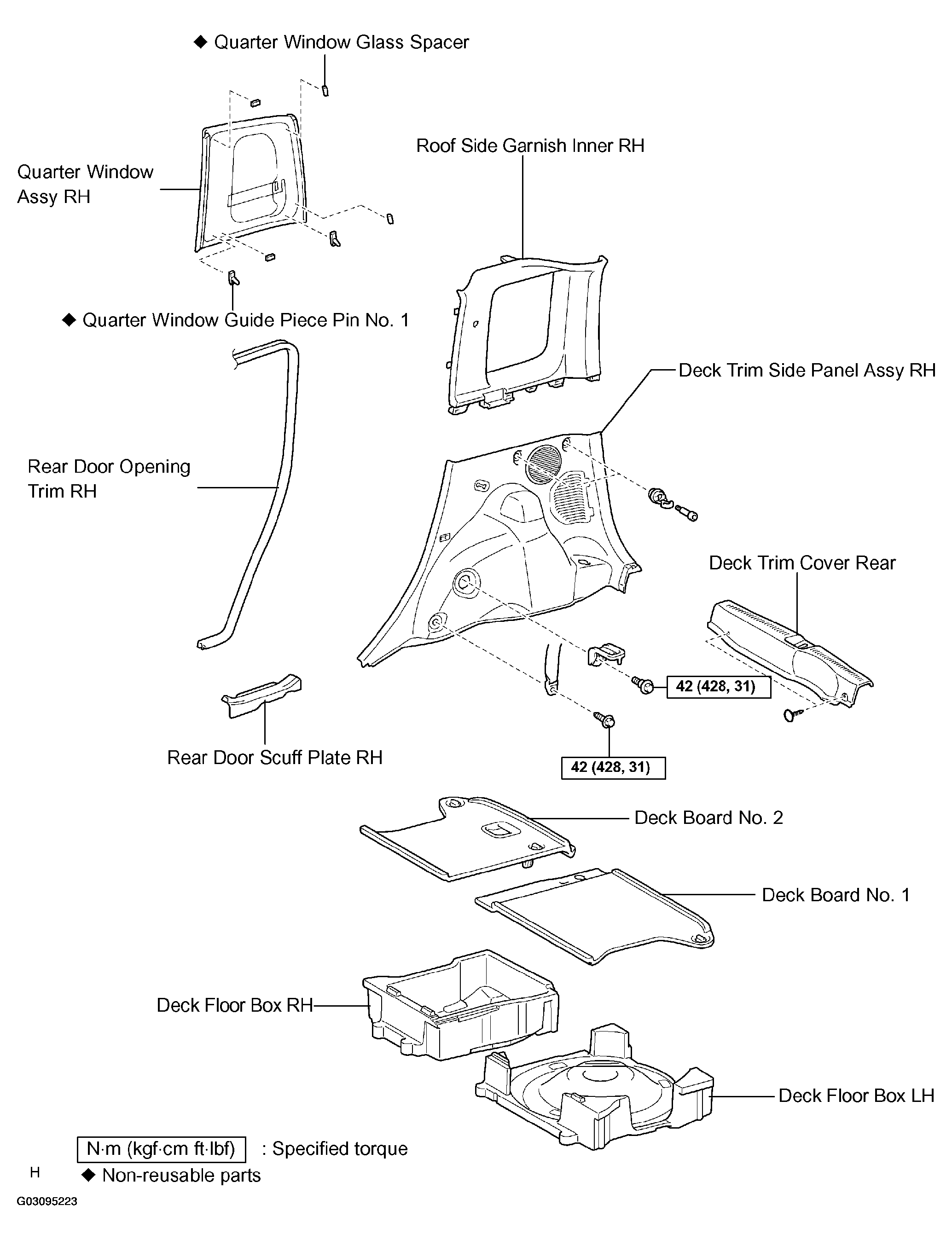

Fig 1: Identifying Quarter Window Assembly (RH) Components

G03095223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
