Inspection Procedure

CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND)

Disconnect the transmission control switch connector of shift lever assy.
Measure the resistance according to the value(s) in CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND) RESISTANCE SPECIFICATIONS .

Standard:

CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - BODY GROUND) RESISTANCE SPECIFICATIONS

Tester connection	Specified Condition
4 - Body ground	Below 1 Ω

Fig 1: Checking Harness And Connector (Transmission Control Switch - Body Ground)

G03096241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
OK: GO TO NEXT STEP

INSPECT TRANSMISSION CONTROL SWITCH
1. Measure the resistance according to the value(s) in Fig 2.
Standard:

Fig 2: Transmission Control Switch Resistance Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Inspecting Transmission Control Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE TRANSMISSION CONTROL SWITCH
2. OK: GO TO NEXT STEP
CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL SWITCH - ECM)
1. Connect the transmission control switch connector of shift lever assy.
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in Fig 4.
Standard:

Fig 4: Check Harness And Connector (Transmission Control Switch - ECM) Resistance Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

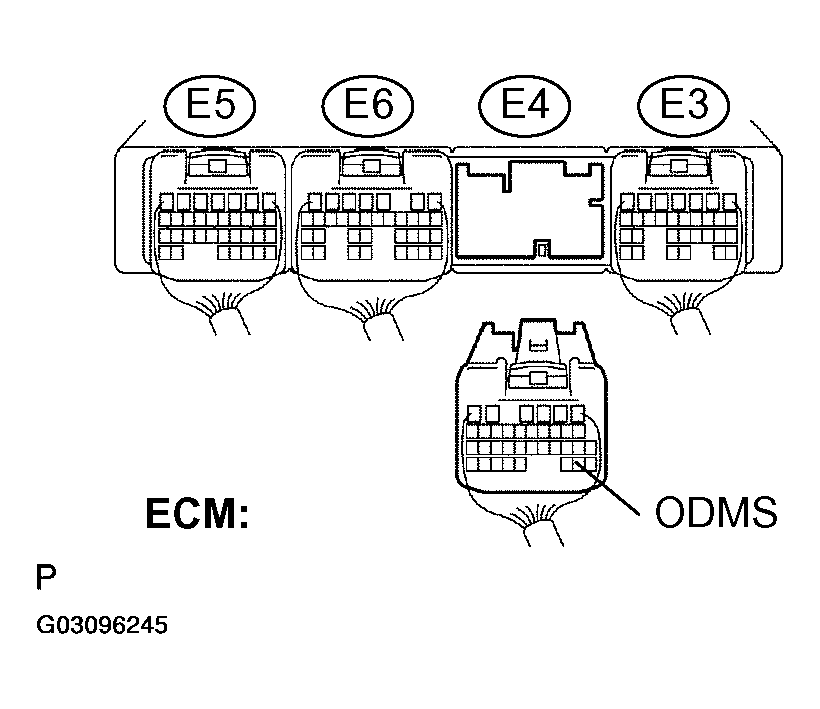

Fig 5: Checking Harness And Connector (Transmission Control Switch - ECM)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (see PROBLEM SYMPTOMS TABLE )
