Manual Shifting Test

HINT:

By this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transaxle.

1. Disconnect the transmission wire connector.

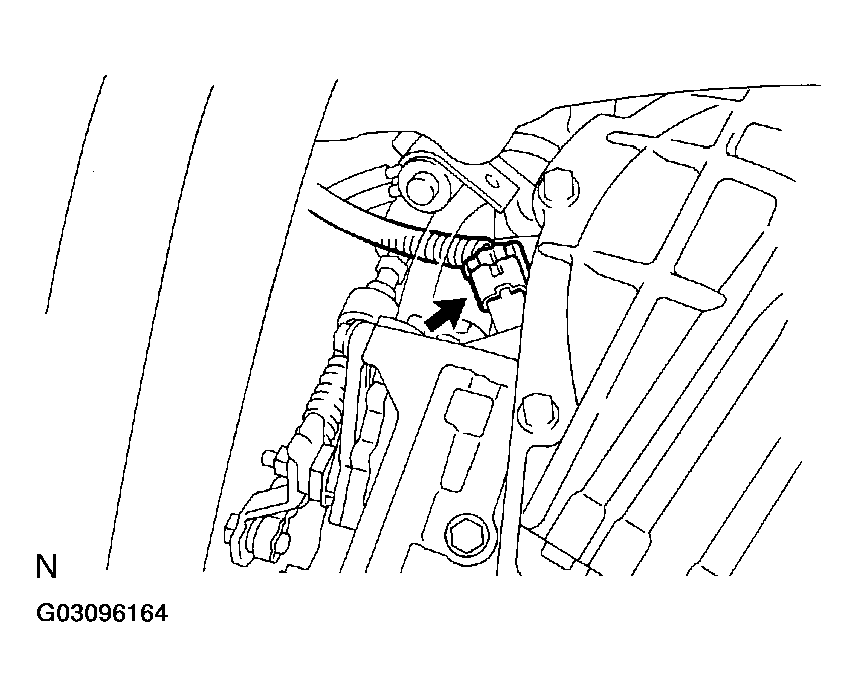

   Fig 1: Disconnecting Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the manual driving operation.

   Check that the shift and gear positions correspond to CORRESPONDING SHIFT AND GEAR POSITIONS .

   While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.

   CORRESPONDING SHIFT AND GEAR POSITIONS



   Shift Position	Gear Position
   D	3rd
   2	3rd
   L	3rd
   R	Reverse
   P	Pawl Lock

   HINT:

   If the gear positions of the L, 2 and D are difficult to distinguish, do the following road test.

   If any abnormality is found in the above test, the problem is in the transaxle itself.

3. Connect the transmission wire connector.
4. Clear the DTC (See DTC CHECK/CLEAR ).
