Electronic Controlled Automatic Transaxle (ECT): Location

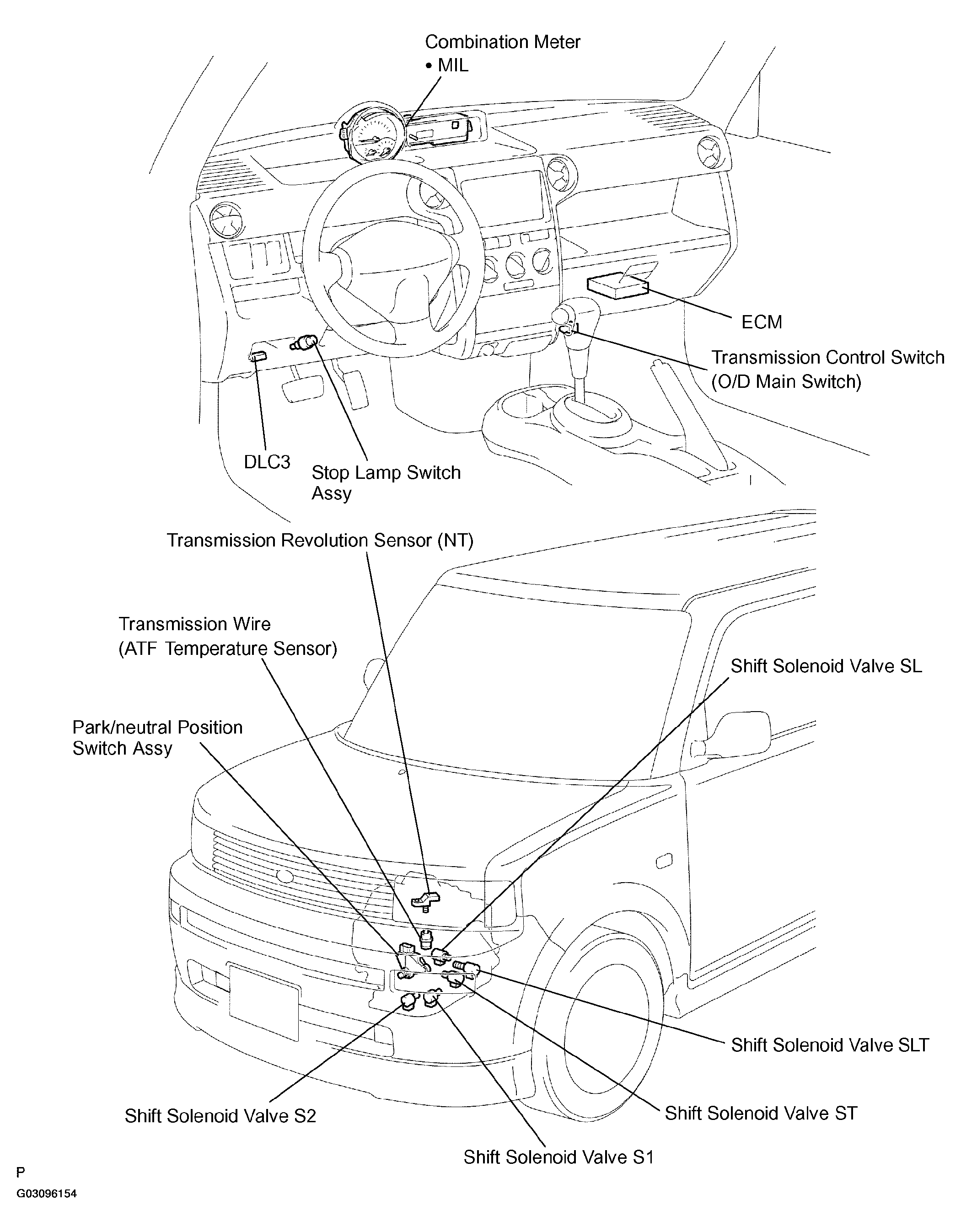

Fig 1: Identifying ECT Location

G03096154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
