Transmission Revolution Sensor (ATM): Replacement

  1. REMOVE AIR CLEANER ASSY
  2. REMOVE AIR CLEANER BRACKET
    1. Disconnect wire harness clamp.

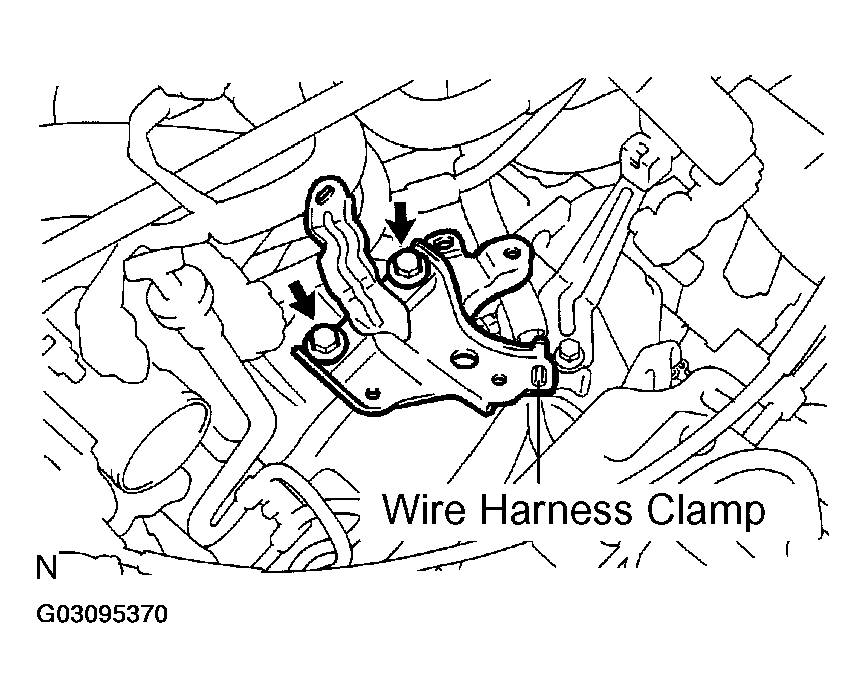

      Fig 1: Disconnecting Wire Harness Clamp
      G03095370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and air cleaner bracket.
  3. REMOVE TRANSMISSION REVOLUTION SENSOR
    1. Disconnect the connector.
    2. Remove the bolt and transmission revolution sensor.

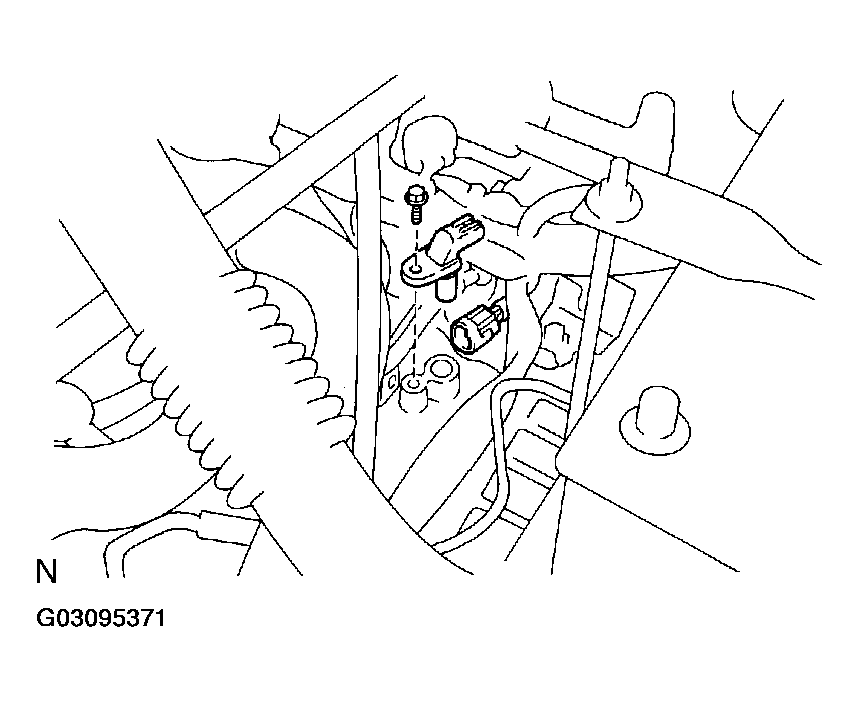

    Fig 2: Removing Transmission Revolution Sensor
    G03095371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL TRANSMISSION REVOLUTION SENSOR
    1. Coat the O-ring with ATF.
    2. Install the transmission revolution sensor with the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    3. Connect the connector.

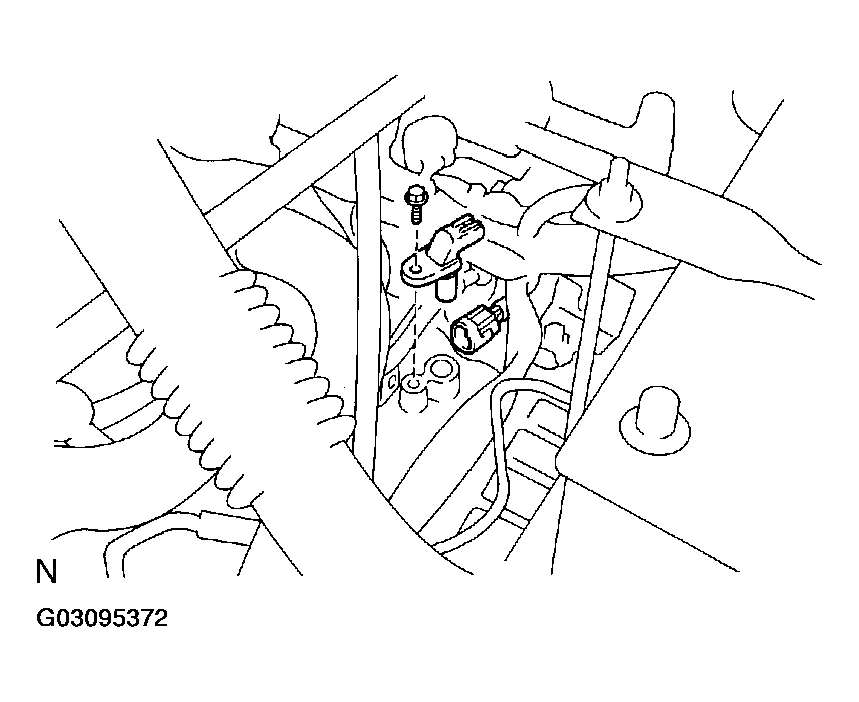

    Fig 3: Installing Transmission Revolution Sensor
    G03095372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR CLEANER BRACKET
    1. Install the air cleaner bracket with the 2 bolts.

      Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

    2. Connect the wire harness clamp to the air cleaner bracket.
    Fig 4: Installing Air Cleaner Bracket
    G03095373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL AIR CLEANER ASSY
