Automatic Transmission/Trans: Preparation

SST

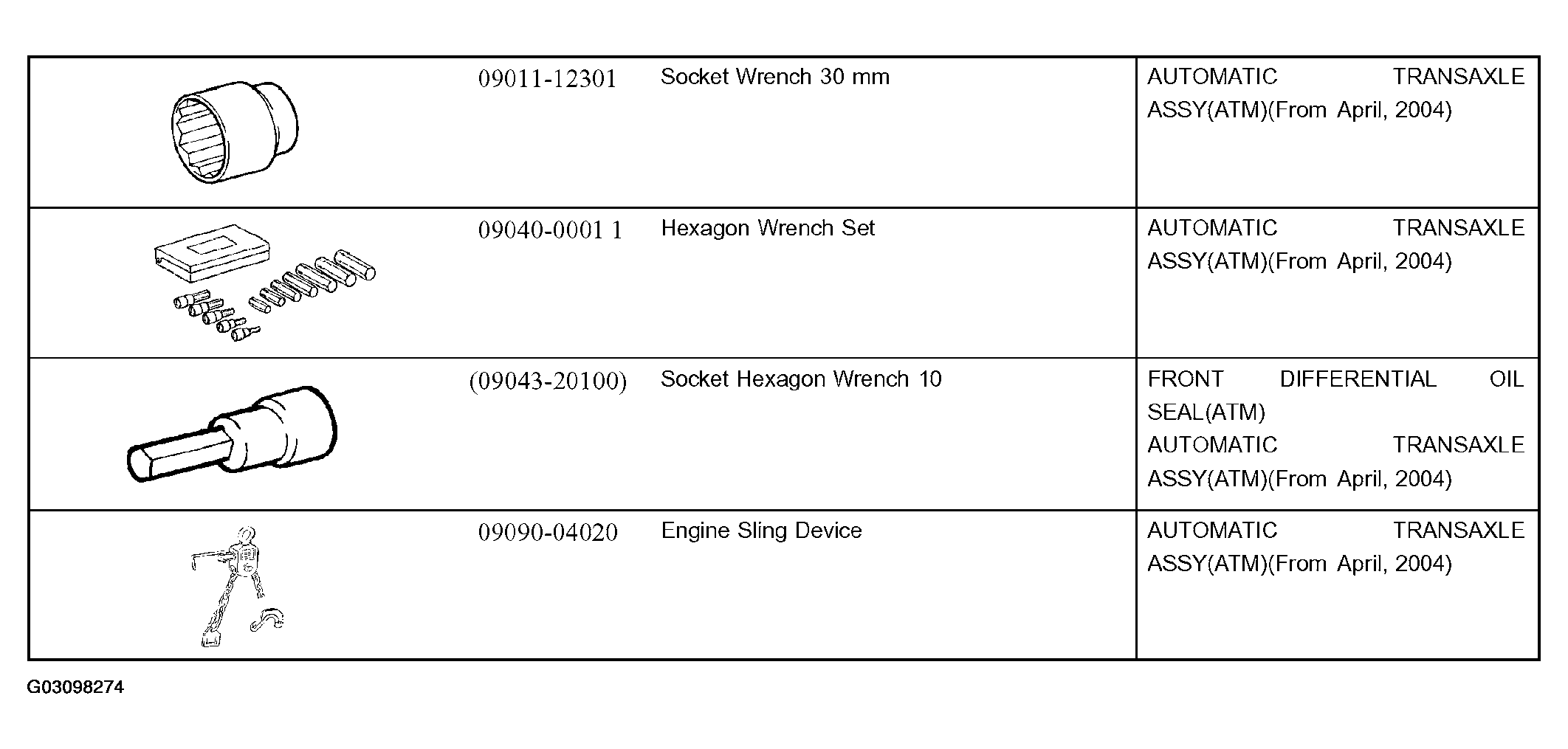

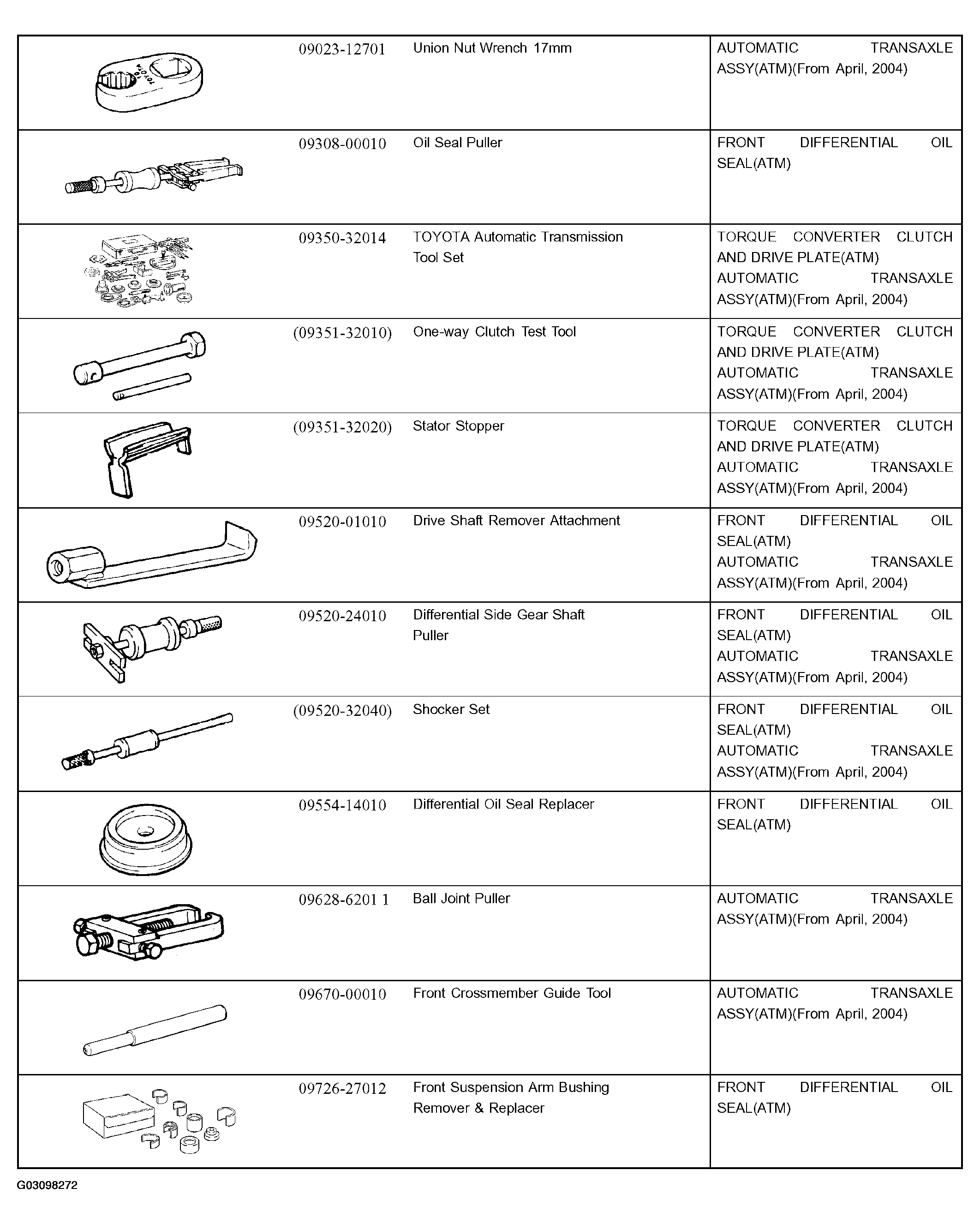

Fig 1: Identifying Automatic Transmission/Trans SST (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

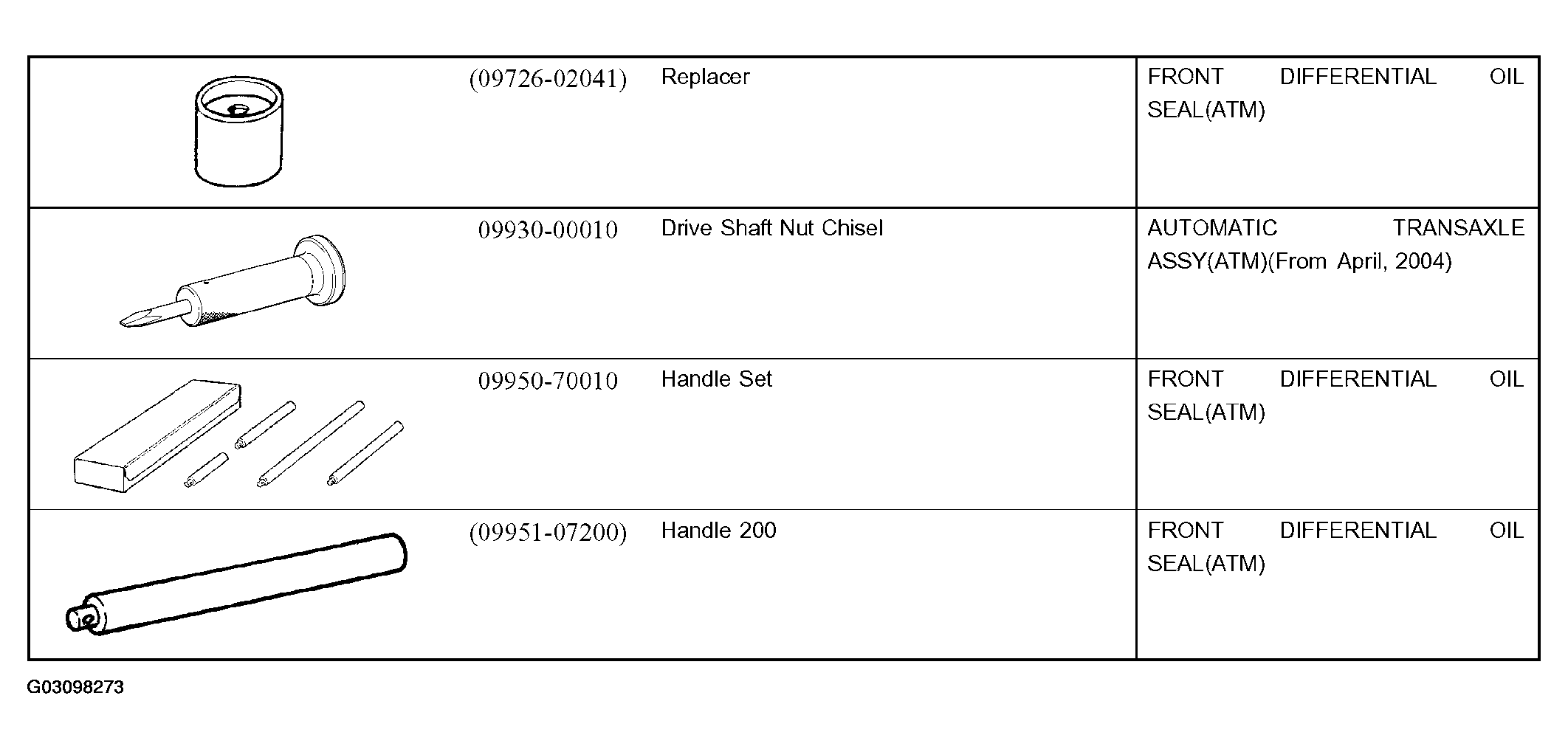

Fig 2: Identifying Automatic Transmission/Trans SST (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

Fig 3: Identifying Automatic Transmission/Trans Recommended Tools

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

AUTOMATIC TRANSMISSION/TRANS EQUIPMENT

Ohmmeter	Shift lock control switch
Straight edge	Automatic transaxle assy
Vernier calipers	Automatic transaxle assy
Torque wrench
Voltmeter
Dial gauge with magnetic base	Torque converter and drive plate
OBD II scan tool	Floor shift parking lock cable assy
Slide calipers	Automatic transaxle assy
Chain block	Automatic transaxle assy

Lubricant

Fig 4: Automatic Transmission/Trans Lubricant Specifications

SSM (Special Service Materials)

Fig 5: Identifying Automatic Transmission/Trans SSM (Special Service Materials)
