DTC P0120, P0122, P0123: Throttle/Pedal Position Sensor/Switch "A" Circuit, Low Input & High Input: Wiring Diagram

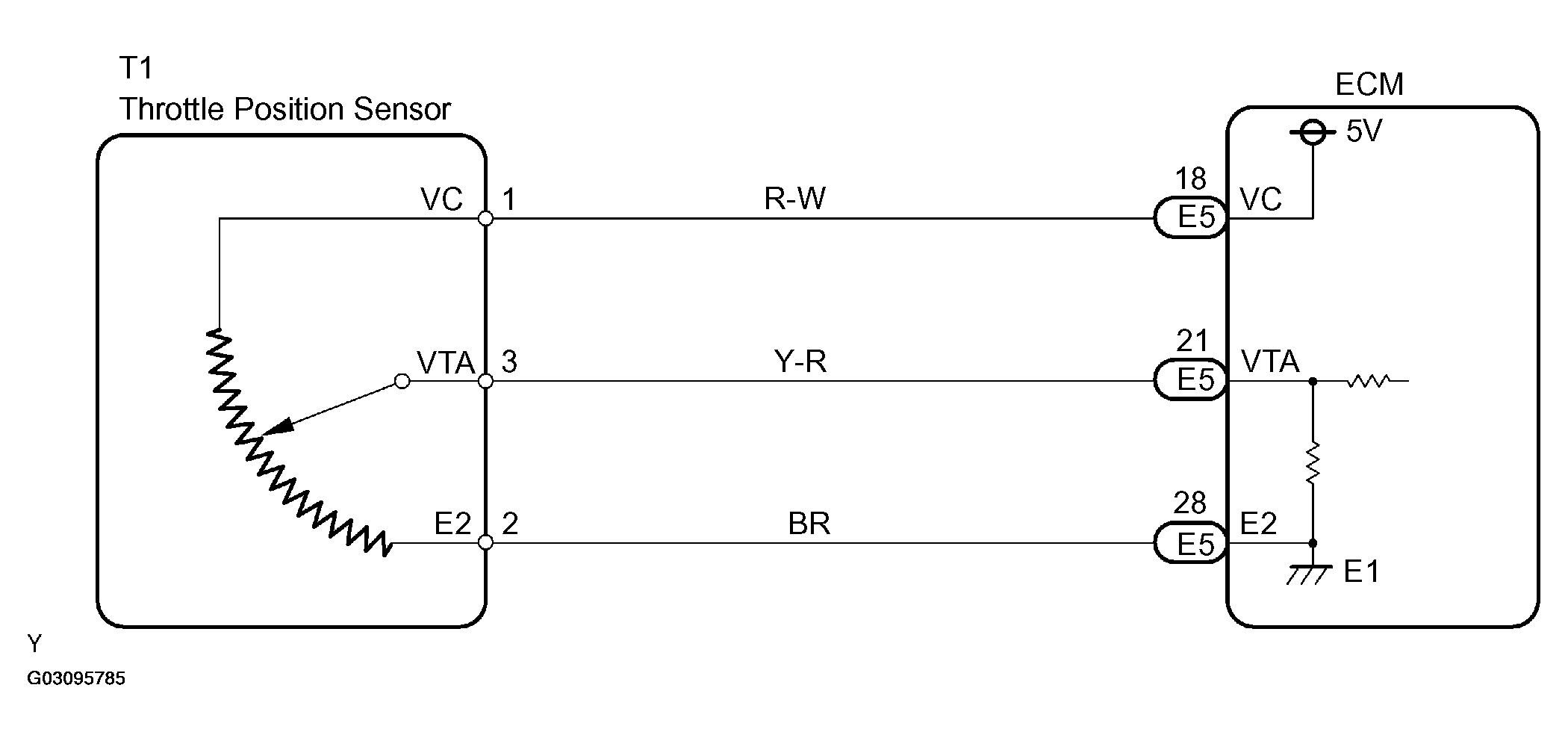

Fig 1: Throttle/Pedal Position Sensor/Switch Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
