Combination Meter ASSY: Overhaul

HINT:

Installation is in the reverse order of removal.

NOTE: When disassembling combination meter assy, measures should be taken to prevent static electricity from damaging the system.

REMOVE INSTRUMENT CLUSTER FINISH PANEL
1. Remove the clip.
2. Disengage the 7 claws and the 2 clips, and remove the instrument cluster finish panel.

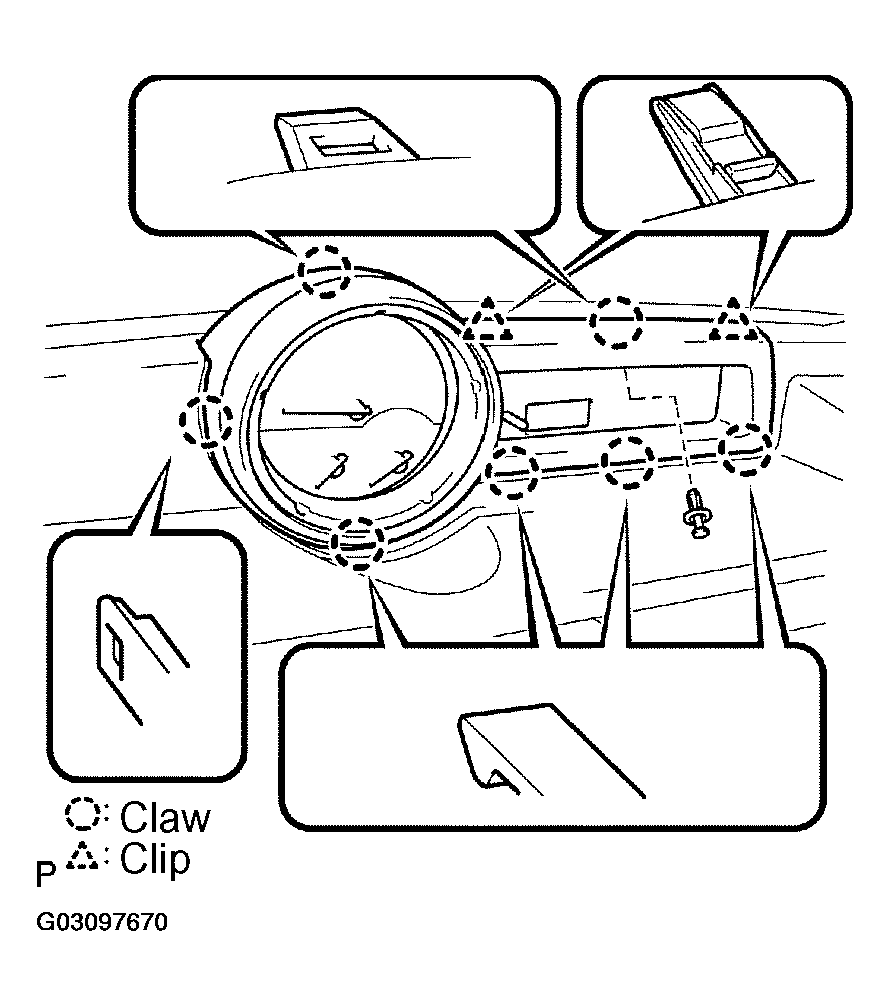

  Fig 1: Locating Instrument Cluster Finish Panel Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSY
1. Remove the 3 screws.

  Fig 2: Locating Combination Meter Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector, and then remove the combination meter assy.
REMOVE COMBINATION METER GLASS
1. Disengage the 3 claws, and remove the combination meter glass.

  Fig 3: Locating Combination Meter Glass Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER COVER NO. 1
1. Disengage the 6 claws, and remove the combination meter cover No. 1.
