Inspection Procedure

  1. 1 CHECK BUZZER
    1. Operate the buzzer and check that the buzzer for seat belt warning, key reminder warning and light reminder warning normally sound.
    CHECK BUZZER

    A All warning buzzer does not sound.
    B Seat belt warning does not sound.
    C Key reminder warning does not sound.
    D Light reminder warning does not sound.
    1. B Go to step   6
    2. C Go to step   8
    3. D Go to step   12
    4. A: GO TO NEXT STEP
  2. 2 INSPECT FUSE
    1. Inspect the AM1 fuse and GAUGE fuse in the instrument panel junction block assy.

    Standard:

    Below 1 Ω

    1. NG INSPECT FOR SHORT CIRCUIT IN HARNESS AND ALL COMPONENTS CONNECTED TO FUSE
    2. OK: GO TO NEXT STEP
  3. 3 INSPECT COMBINATION METER ASSY
    Fig 1: Disconnecting Combination Meter Connector
    G03096485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the combination meter connector.
    2. Measure the voltage according to the value(s) in the table below.

    Standard:

    COMBINATION METER CONNECTOR TERMINALS VOLTAGE

    Tester connection Condition Specified condition
    C6-23 - Body ground Ignition switch OFF Below 1 V
    C6-23 - Body ground Ignition switch ON 10 to 14 V
    1. NG Go to step 4
    2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
  4. 4 INSPECT IGNITION SWITCH
    Fig 2: Identifying Ignition Switch Connector
    G03096486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the ignition switch connector.
    2. Measure the resistance according to the value(s) in the table below.

    Standard:

    IGNITION SWITCH CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    I10-1 - I10-2 Ignition switch OFF 10 kΩ or higher
    I10-1 - I10-2 Ignition switch ON Below 1 Ω
    1. NG REPLACE IGNITION SWITCH
    2. OK: GO TO NEXT STEP
  5. 5 CHECK HARNESS AND CONNECTOR
    Fig 3: Disconnecting Ignition Switch Connector
    G03096487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the ignition switch connector.
    2. Measure the voltage according to the value(s) in the table below.

    Standard:

    IGNITION SWITCH CONNECTOR TERMINALS VOLTAGE

    Tester connection Condition Specified condition
    I10-1 - Body ground Always 10 to 14 V
    1. NG REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH - BATTERY) (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
    2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION METER ASSY - IGNITION SWITCH) (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
  6. 6 INSPECT FRONT SEAT INNER BELT ASSY LH
    Fig 4: Identifying Front Seat Inner Belt Assy LH Connector
    G03096488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the front seat inner belt assy LH connector.
    2. Measure the resistance according to the value(s) in the table below.

    Standard:

    SEAT INNER BELT ASSY LH CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    3 - Body ground Driver side seat belt is fastened 1,200 to 1,460 Ω
    3 - Body ground Driver side seat belt is unfastened 300 to 360 Ω
    1. NG REPLACE FRONT SEAT INNER BELT ASSY LH
    2. OK: GO TO NEXT STEP
  7. 7 CHECK HARNESS AND CONNECTOR(DRIVER SIDE SEAT BELT SIGNAL CIRCUIT)

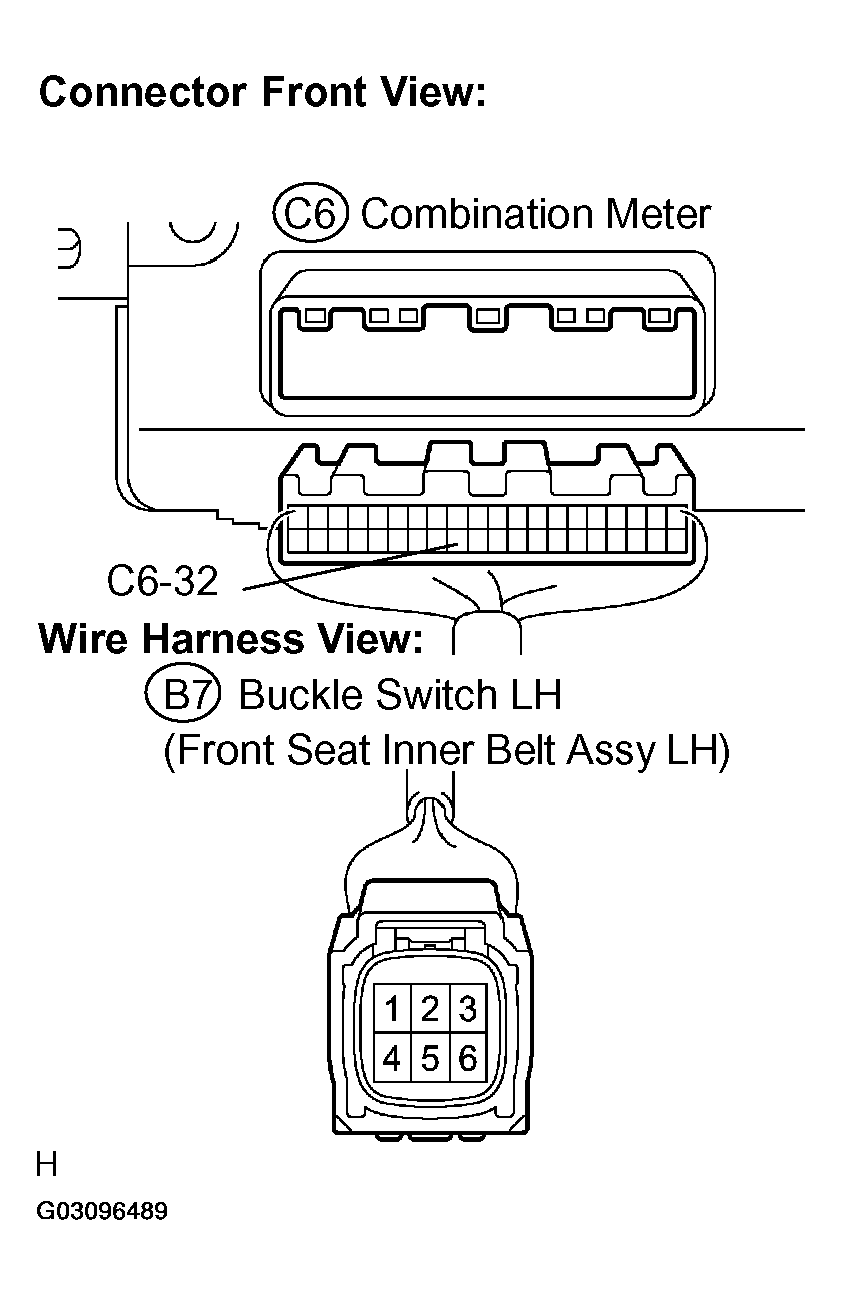

    Fig 5: Disconnecting Combination Meter Connector And Front Seat Inner Belt Assy Connector
    G03096489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the combination meter connector and front seat inner belt assy connector.
    2. Measure the resistance according to the value(s) in the table below.

    Standard:

    COMBINATION METER CONNECTOR AND FRONT SEAT INNER BELT ASSY CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    C6-32 - B7-3 Always Below 1 Ω
    1. NG REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
    2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
  8. 8 INSPECT COMBINATION METER ASSY
    Fig 6: Disconnecting Combination Meter Connector
    G03096490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in the table below.

    Standard:

    COMBINATION METER CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    C6-25 - Body ground Ignition key is not inserted 10 kΩ or higher
    C6-25 - Body ground Ignition key is inserted Below 1 Ω
    1. NG Go to step   10
    2. OK: GO TO NEXT STEP
  9. 9 INSPECT COMBINATION METER ASSY
    Fig 7: Disconnecting Combination Meter Connector
    G03096491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in the table below.

    Standard:

    COMBINATION METER CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    C6-24 - Body ground Driver side door is closed 10 kΩ or higher
    C6-24 - Body ground Driver side door is open Below 1 Ω
    1. NG Go to step   11
    2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
  10. 10 INSPECT UN-LOCK WARNING SWITCH ASSY
    1. Measure the resistance according to the value(s) in the table below.

    Standard:

    WARNING SWITCH CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    1 - 2 Ignition key is not inserted 10 kΩ or higher
    1 - 2 Ignition key is inserted Below 1 Ω
    1. NG REPLACE UN-LOCK WARNING SWITCH ASSY
    2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (UN-LOCK WARNING SWITCH CIRCUIT) (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
  11. 11 INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY
    1. Measure the resistance according to the value(s) in the table below.

    Standard:

    FRONT DOOR COURTESY LAMP SWITCH CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    1 - Body ground Driver side courtesy switch shaft is pushed in 10 kΩ or higher
    1 - Body ground Driver side courtesy switch shaft is free Below 1 Ω
    1. NG REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY
    2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (DOOR COURTESY LAMP SWITCH ASSY) (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
  12. 12 INSPECT FUSE
    1. Inspect the ALT fuse in the fusible link block assy.

      Standard:

      Below 1 Ω

    2. Inspect the TAIL fuse in the instrument panel junction block assy.

    Standard:

    Below 1 Ω

    1. NG INSPECT FOR SHORT CIRCUIT IN HARNESS AND ALL COMPONENTS CONNECTED TO FUSE
    2. OK: GO TO NEXT STEP
  13. 13 INSPECT COMBINATION METER ASSY
    Fig 8: Identifying Combination Meter Connector
    G03096492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage according to the value(s) in the table below.

    Standard:

    COMBINATION METER CONNECTOR TERMINALS VOLTAGE

    Tester connection Condition Specified condition
    C6-26 - Body ground Light control switch OFF Below 1 V
    C6-26 - Body ground Light control switch TAIL or HEAD 10 to 14 V
    1. NG Go to step   15
    2. OK: GO TO NEXT STEP
  14. 14 INSPECT COMBINATION METER ASSY
    Fig 9: Disconnecting Combination Meter Connector
    G03096493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in the table below.

    Standard:

    COMBINATION METER CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    C6-24 - Body ground Driver side door is closed 10 kΩ or higher
    C6-24 - Body ground Driver side door is open Below 1 Ω
    1. NG Go to step   16
    2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
  15. 15 INSPECT HEADLAMP DIMMER SWITCH ASSY
    1. Inspect light control switch of combination switch (See INSPECTION ).
    1. NG REPLACE HEADLAMP DIMMER SWITCH ASSY (See  REPLACEMENT  )
    2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (HEADLAMP DIMMER SWITCH CIRCUIT) (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
  16. 16 INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY
    1. Measure the resistance according to the value(s) in the table below.

    Standard:

    FRONT DOOR COURTESY LAMP SWITCH CONNECTOR TERMINALS RESISTANCE

    Tester connection Condition Specified condition
    1 - Body ground Driver side courtesy switch shaft is pushed in 10 kΩ or higher
    1 - Body ground Driver side courtesy switch shaft is free Below 1 Ω
    1. NG REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY
    2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (DOOR COURTESY LAMP SWITCH CIRCUIT) (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
