Inspection Procedure

HINT:

Start the inspection from step 1 when using the hand-held tester, and start from step 2 when not using the hand-held tester.

1. 1 READ VALUE OF HAND-HELD TESTER
   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch to the ON position and press the hand-held tester main switch on.
   3. Select the item below in the DATA LIST, and read the displays on the hand-held tester.

   ALL:

   HAND-HELD TESTER VALUE



   Hand-held Tester	Measurement Item/Range (Display)	Normal Condition	Diagnostic Note
   ENGINE SPD((1))	Engine speed/ Min.: 0 rpm, Max.: 16383 rpm	Idling: 650 to 750 rpm	-
   (1) ECM Data

   1. NG GO TO FLOW CHART (SFI SYSTEM) (See  HOW TO PROCEED WITH TROUBLESHOOTING  )
   2. OK: GO TO NEXT STEP
2. 2 INSPECT COMBINATION METER ASSY
   Fig 1: Identifying Combination Meter Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Measure the voltage according to the value(s) in the table below.

   Standard:

   COMBINATION METER CONNECTOR SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   C6-30 - Body ground	Engine running	Pulse generation ((1))
   (1) Reference: Using oscilloscope:

   Fig 2: Identifying Waveform Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TOOL SETTING AND VEHICLE SPEED



   Item	Contents
   Tool setting	5 V/ DIV, 10 ms/ DV
   Vehicle condition	Engine idle speed

   1. NG Go to step 3
   2. OK: REPLACE COMBINATION METER ASSY. See  COMBINATION METER ASSY
3. 3 CHECK HARNESS AND CONNECTOR(ECM - COMBINATION METER ASSY)

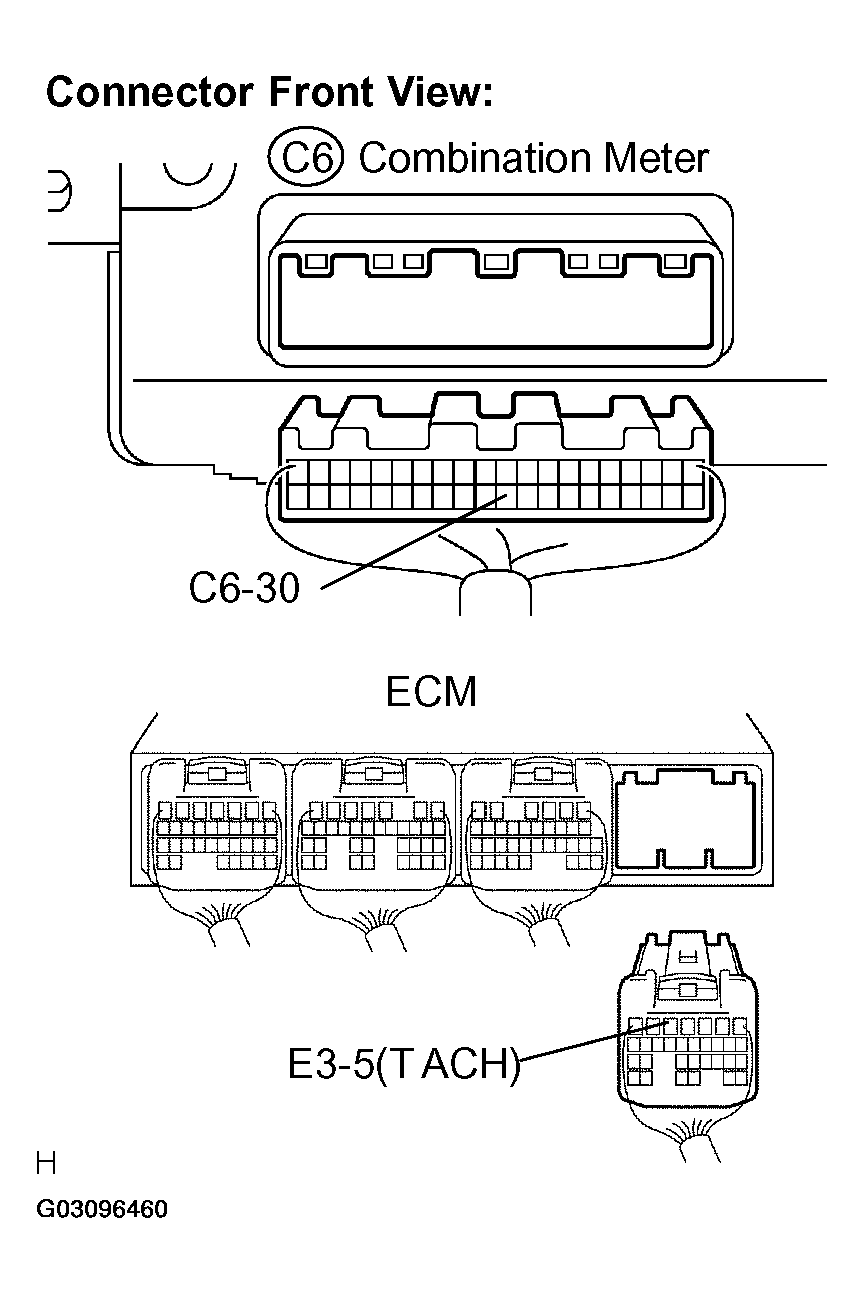

   Fig 3: Disconnecting Combination Meter Connector And E3 Connector Of ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the combination meter connector and E3 connector of ECM.
   2. Measure the resistance according to the value(s) in the table below.

   Standard:

   COMBINATION METER CONNECTOR AND ECM CONNECTOR TERMINALS RESISTANCE



   Tester connection	Condition	Specified condition
   C6-30 - E3-5 (TACH)	Always	Below 1 Ω
   C6-30 - Body ground	Always	10 kΩ or higher

   1. NG REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
   2. OK: REPLACE ECM. See  REPLACEMENT  .
