Key Lock-In Prevention Function Does Not Work Properly (Manual Operation And Key-Linked Lock Are Available): Wiring Diagram

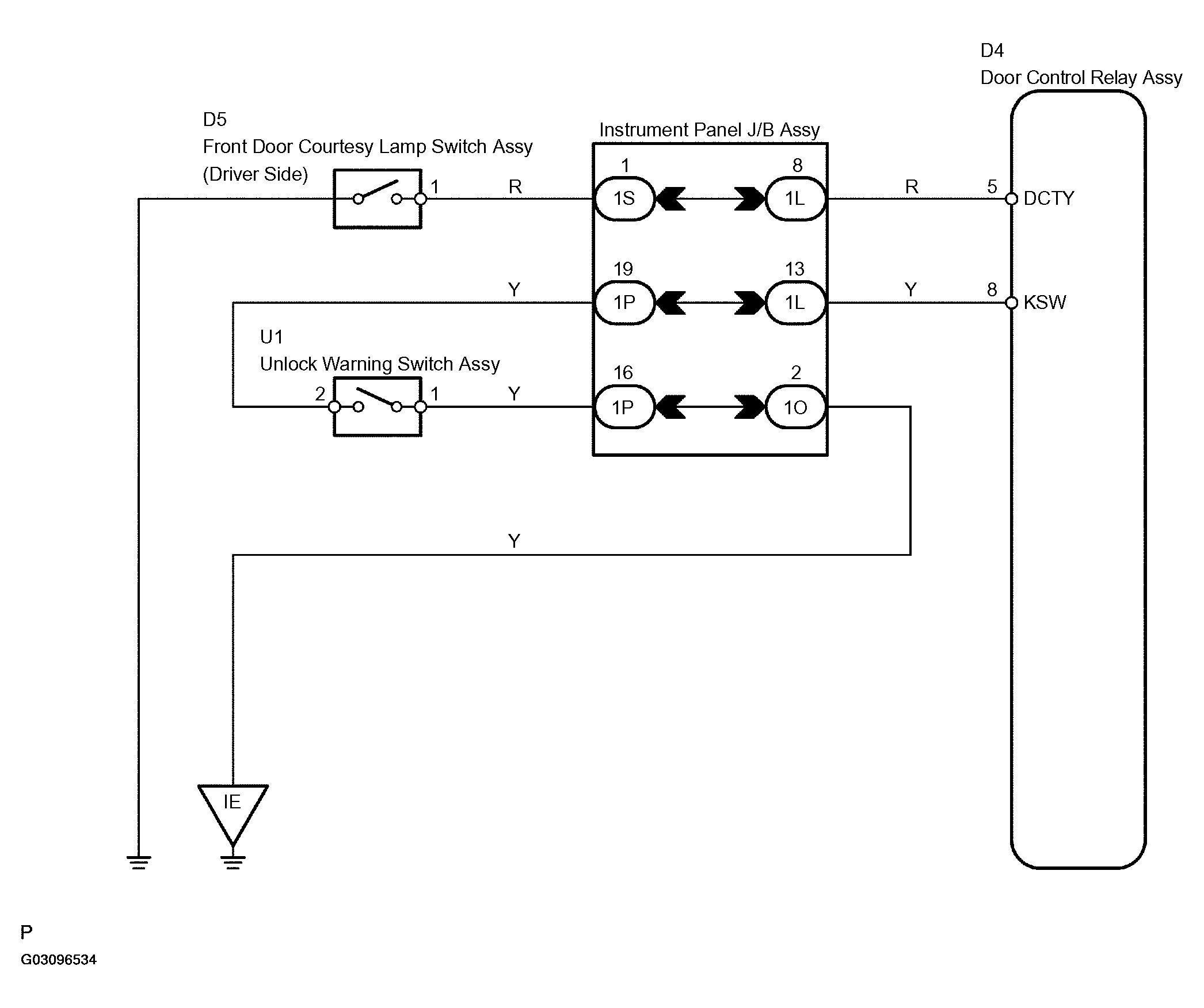

Fig 1: Key Lock-In Prevention System Wiring Diagram
G03096534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
