Vane Pump ASSY: Components

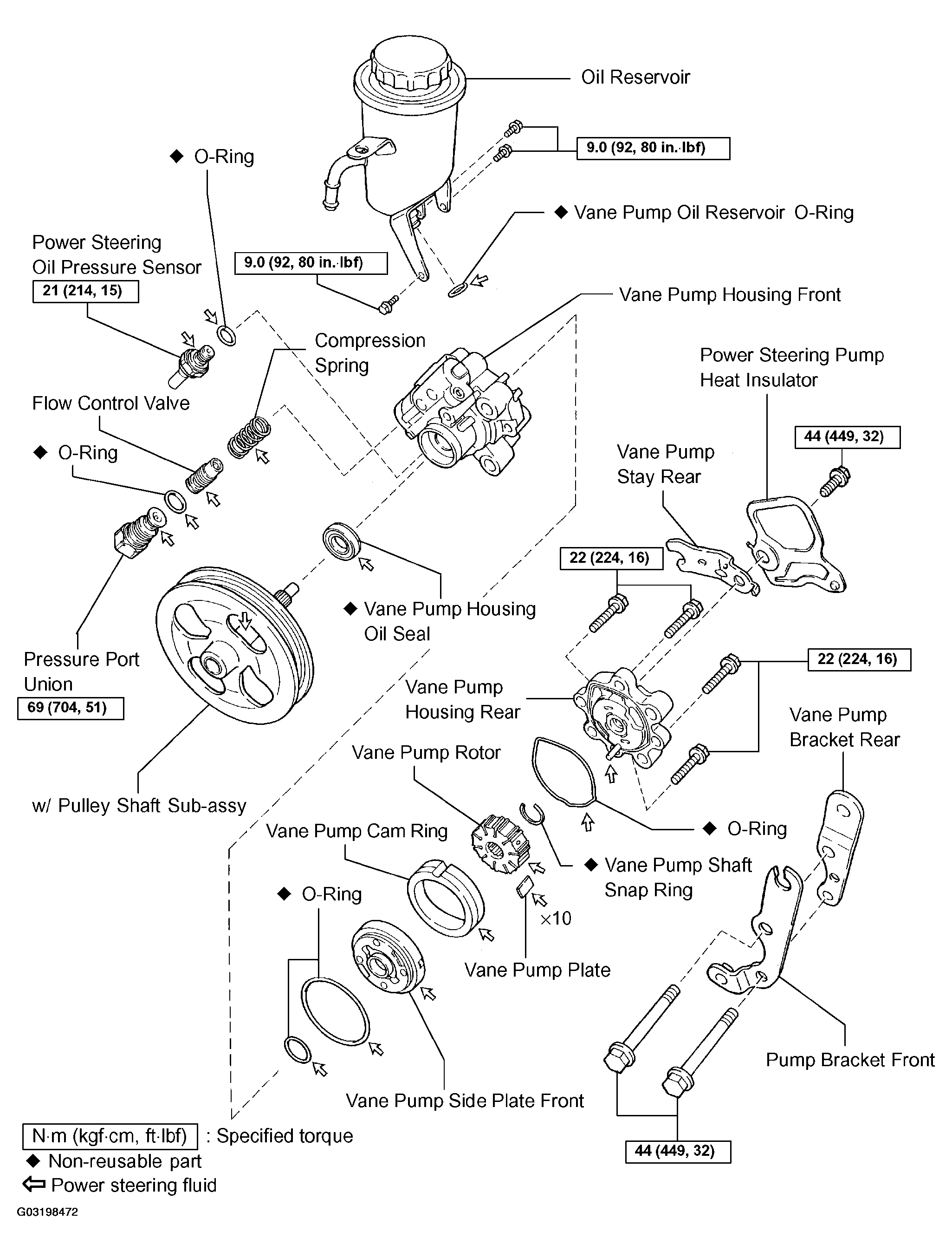

Fig 1: Identifying Vane Pump Assy Components

G03198472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
